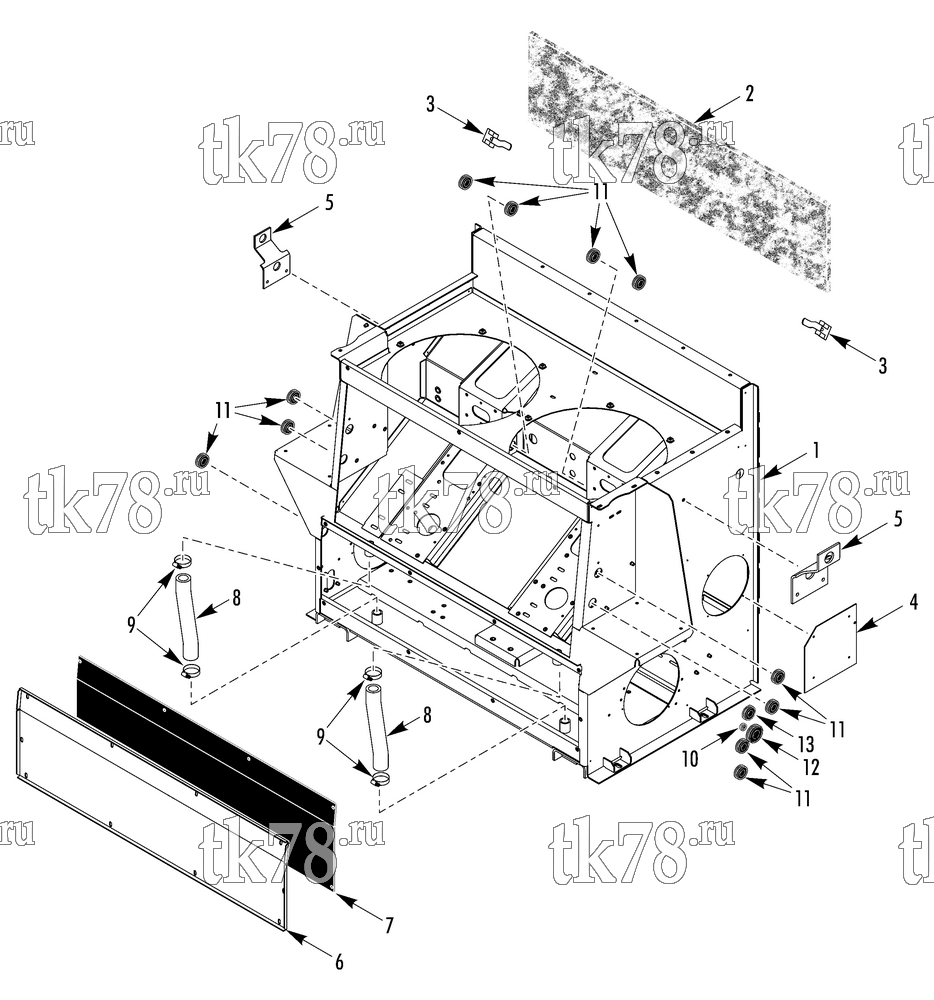

Установкa Thermo King схема FRAME – 246H5
Обновление от: 8/4/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8554 | FRAME | 1 | |
| 2 | 91-6293 | FILTER - air | 1 | |
| 3 | 55-4422 | FASTENER - snap | 2 | |
| 55-3101 | RIVET - fastener | 2 | ||
| 4 | 99-8018 | PLATE - fresh air block off | 1 | |
| 55-4339 | SCREW - plate | 4 | ||
| 5 | 91-7707 | BRACKET - lifting | 2 | |
| 55-2683 | SCREW - bracket | 4 | ||
| 55-2641 | FLATWASHER | 8 | ||
| 55-4955 | NUT - stop | 4 | ||
| 6 | 98-6649 | PANEL - rear access | 1 | |
| 55-2977 | SCREW - panel | 10 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 7 | 92-2945 | INSULATION - panel, rear | 1 | |
| 8 | 66-6928 | HOSE - drain | 2 | |
| 9 | 55-2684 | CLAMP - hose | 4 | |
| 10 | 33-1692 | GROMMET (.375 id) | 1 | |
| 11 | 33-507 | GROMMET (.875 id) | 11 | |
| 12 | 33-3608 | GROMMET (1.125 id) | 1 | |
| 13 | 33-2110 | GROMMET (1.0 id) | 2 |
