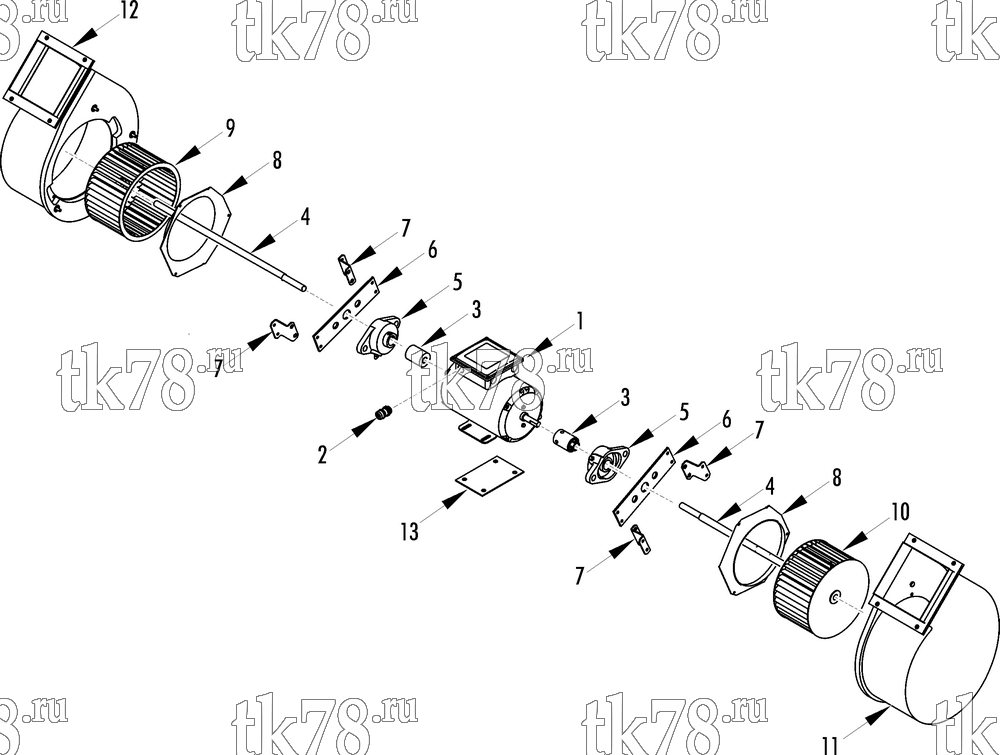

Установкa Thermo King схема EVAPORATOR BLOWER – 246H1
Обновление от: 7/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-778 | MOTOR - evaporator blower | 1 | |
| 55-2969 | SCREW - motor | 4 | ||
| 55-4184 | WASHER - spl (.344 id) | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-8976 | INSERT | 4 | ||
| 2 | 51-2049 | CONNECTOR - harness grip | 1 | |
| 51-2050 | WASHER - connector | 1 | ||
| 51-2051 | NUT - connector | 1 | ||
| 3 | 77-2589 | COUPLING - flexible | 2 | |
| 4 | 77-2669 | SHAFT - motor | 2 | |
| 5 | 77-2664 | BEARING - flange | 2 | |
| 55-2961 | SCREW | 4 | ||
| 55-4931 | WASHER - special | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4955 | NUT | 4 | ||
| 6 | 92-7206 | PLATE - bearing mount | 2 | |
| 55-2957 | SCREW | 8 | ||
| 55-1800 | WASHER - lock | 8 | ||
| 55-2086 | WASHER - flat | 8 | ||
| 55-8711 | INSERT | 8 | ||
| 7 | 92-7207 | BRACKET - support | 4 | |
| 55-2957 | SCREW | 8 | ||
| 55-2086 | WASHER - flat | 8 | ||
| 55-4953 | NUT | 8 | ||
| 8 | 77-1843 | RING - inlet | 2 | |
| 55-5639 | SCREW | 14 | ||
| 9 | 77-2516 | WHEEL - blower (cw) | 1 | |
| 10 | 77-2517 | WHEEL - blower (ccw) | 1 | |
| 11 | 98-7362 | HOUSING - blower (roadside) | 1 | |
| 55-4953 | NUT | 3 | ||
| 12 | 98-7361 | HOUSING - blower (curbside) | 1 | |
| 55-4953 | NUT | 3 | ||
| 13 | 99-7780 | SPACER - motor | 1 |
