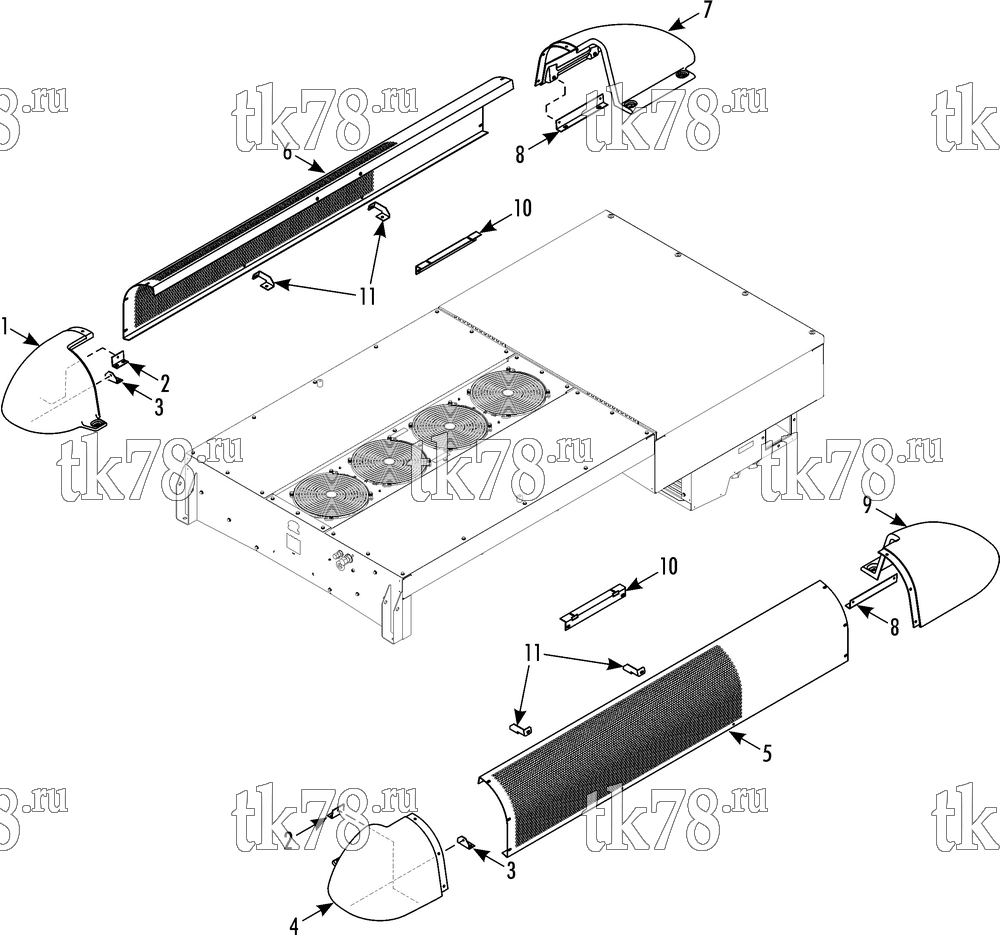

Установкa Thermo King схема COVERS – 246G1
Обновление от: 7/9/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8547 | NOSECONE - rear, curbside | 1 | |
| 2 | 92-8539 | BRACKET - rear | 2 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 3 | 92-8540 | BRACKET - inner | 2 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 4 | 98-8548 | NOSECONE - rear, roadside | 1 | |
| 5 | 98-8549 | COVER - side skirt, curbside | 1 | |
| 55-8711 | INSERT | 2 | ||
| 6 | 98-8550 | COVER - side skirt, roadside | 1 | |
| 55-8711 | INSERT | 2 | ||
| 7 | 98-8551 | NOSECONE - front, curbside | 1 | |
| 8 | 92-8541 | BRACKET - front | 2 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 9 | 98-8552 | NOSECONE - front, roadside | 1 | |
| 10 | 92-8542 | BRACKET - side skirt, upper | 2 | |
| 11 | 92-8543 | BRACKET - side skirt, lower | 4 | |
| 55-2957 | SCREW | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 |
