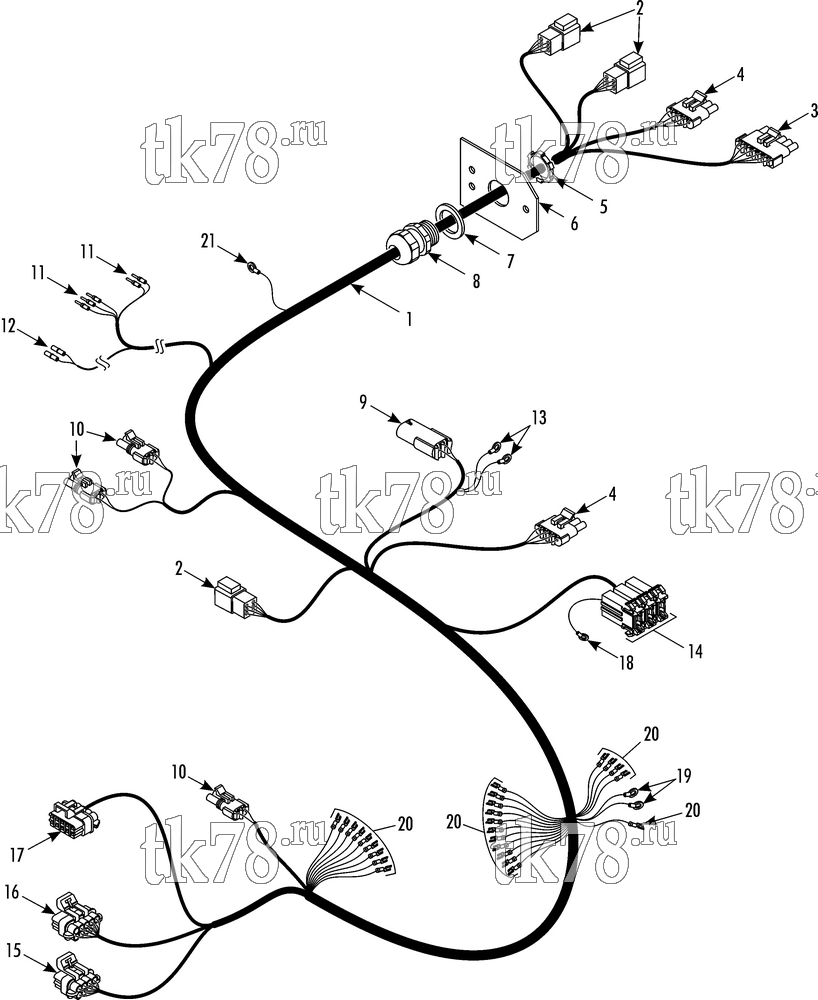

Установкa Thermo King схема HARNESS SLAVE CONTROL – 246F5
Обновление от: 9/1/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9589 | HARNESS - slave | 1 | |
| 2 | 41-4281 | CONNECTOR (6-pin) | 3 | |
| 41-4282 | WEDGE - connector | 3 | ||
| 41-8978 | TERMINAL - pin (16-20 ga) | 15 | ||
| 41-8979 | PIN - sealing | 3 | ||
| 3 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 5 | ||
| 44-8681 | SEAL - cable (red) | 5 | ||
| 44-7812 | PLUG - cavity (green) | 1 | ||
| 4 | 44-7881 | CONNECTOR - tower (4-pin) | 2 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 6 | ||
| 44-8681 | SEAL - cable (red) | 6 | ||
| 44-7812 | PLUG - cavity (green) | 1 | ||
| 5 | 55-2635 | NUT - lock | 1 | |
| 6 | 92-6109 | PLATE - harness | 1 | |
| 7 | 41-5359 | WASHER - sealing | 1 | |
| 8 | 41-4817 | CONNECTOR - harness grip | 1 | |
| 9 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 44-5883 | TERMINAL - male (20-18 ga) | 2 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 10 | 44-5838 | CONNECTOR - tower (2-pin) | 3 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 6 | ||
| 44-8681 | SEAL - cable (red) | 6 | ||
| 11 | 44-5883 | TERMINAL - male (20-18 ga) | 5 | |
| 44-8681 | SEAL - cable (red) | 5 | ||
| 12 | 44-5884 | TERMINAL - female (20-18 ga) | 2 | |
| 44-8681 | SEAL - cable (red) | 2 | ||
| 13 | 651-295 | TERMINAL - ring (blue #6, 16-14 ga) | 1 | |
| 41-281 | TERMINAL - ring (red #6, 22-16 ga) | 1 | ||
| 14 | 41-2973 | FUSEHOLDER | 3 | |
| 41-3327 | TERMINAL - fuse (14 awg) | 2 | ||
| 15 | 41-4199 | CONNECTOR (8-pin) | 1 | |
| 41-5055 | LOCK - secondary | 1 | ||
| 41-8981 | TERMINAL | 8 | ||
| 41-8982 | WIRE - seal | 8 | ||
| 16 | 41-4198 | CONNECTOR (10-pin grey) | 1 | |
| 41-5054 | LOCK - secondary | 1 | ||
| 41-8981 | TERMINAL | 10 | ||
| 41-8982 | WIRE - seal | 10 | ||
| 17 | 41-4197 | CONNECTOR (10-pin black) | 1 | |
| 41-5054 | LOCK - secondary | 1 | ||
| 41-8981 | TERMINAL | 9 | ||
| 41-8982 | WIRE - seal | 9 | ||
| 41-8983 | PLUG - cavity | 1 | ||
| 18 | 44-2789 | TERMINAL - ring (blue 1/4, 16-14 ga) | 1 | |
| 19 | 44-2791 | TERMINAL - ring (blue #10, 16-14 ga) | 1 | |
| 44-7245 | TERMINAL - ring (red #10, 22-16 ga) | 1 | ||
| 20 | 41-280 | TERMINAL - fork (red #6, 22-16 ga) | 25 | |
| 21 | 44-2786 | TERMINAL - ring (blue 3/8, 16-14 ga) | 1 |
