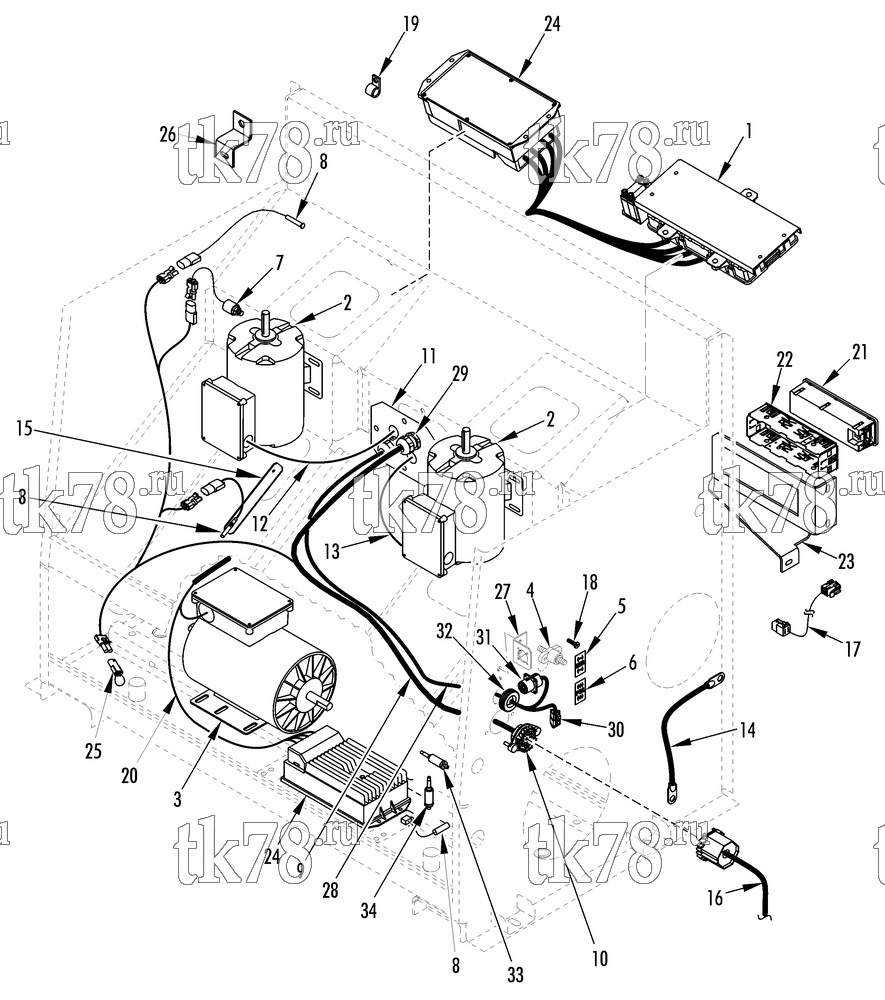

Установкa Thermo King схема ELECTRICAL COMPONENTS – 246F2
Обновление от: 11/23/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | IntelligAIRE II - assembly (see 172A2) | 1 | |
| 2 | 104-740 | MOTOR - condenser | 2 | |
| 3 | 104-741 | MOTOR - evaporator (see 153G9) | 1 | |
| 4 | 55-9551 | STUD - terminal (black) | 1 | |
| 55-671 | NUT | 2 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 41-4486 | SWITCH - condenser fan (for connectors see 115D14) | 1 | |
| 41-4809 | SWITCH - only | 1 | ||
| 8 | 41-7706 | SENSOR - temperature | 3 | |
| 9 | 41-8363 | HARNESS - main (IntelligAIRE, see 231D3) | 1 | |
| 10 | 44-7829 | CONNECTOR - tower (22-pin, see 115D14) | 1 | |
| 11 | 92-2330 | PLATE - harness connectors | 1 | |
| 55-1587 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 12 | 41-4191 | HARNESS - condenser motor (1) | 1 | |
| 41-4921 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 13 | 41-4190 | HARNESS - condenser motor (2) | 1 | |
| 41-4921 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 14 | 41-4913 | HARNESS - battery cable (red) | 1 | |
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 41-5359 | CONNECTOR - liquid tite | 1 | ||
| 55-2635 | NUT - connector | 1 | ||
| 41-4193 | HARNESS (35) | 1 | ||
| 41-4194 | HARNESS (34) | 1 | ||
| 41-5437 | HARNESS - single wire (5.0 in lg) | 1 | ||
| 55-3834 | SCREW - harness | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 55-4954 | NUT | 1 | ||
| 15 | 92-8117 | BRACKET - sensor | 1 | |
| 55-3843 | SCREW - bracket | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 16 | 41-4909 | HARNESS - interface (for connectors see 115D14) | 1 | |
| 17 | 41-4195 | HARNESS - unit display | 1 | |
| 41-4284 | CONNECTOR (6 terminal) | 1 | ||
| 41-4285 | LOCK - terminal | 1 | ||
| 41-4283 | CONNECTOR (6 terminal) | 1 | ||
| 41-4899 | CONNECTOR (wedge) | 1 | ||
| 18 | 55-9700 | SCREW - junction block | 2 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 19 | 51-1196 | CLAMP (0.312 dia) | 2 | |
| 55-2957 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-2239 | CLAMP (0.375 dia) | 1 | ||
| 55-749 | SCREW - clamp | 1 | ||
| 51-151 | CLAMP (0.562 dia) | 2 | ||
| 55-2991 | SCREW - clamp | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-9311 | CLAMP (1.000 dia) | 2 | ||
| 55-1587 | SCREW - clamp | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 20 | 41-8344 | HARNESS - brushless motors (for connectors see 115D14) | 1 | |
| 21 | 41-7199 | MODULE - display | 1 | |
| 22 | 92-5199 | KEY - din panel mounting | 1 | |
| 23 | 92-2947 | BRACKET - display module | 1 | |
| 55-1587 | SCREW - bracket | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 24 | 41-3590 | DRIVE - motor | 2 | |
| 841-3590 | CONTROLLER - motor (reman) | 1 | ||
| 25 | 44-8197 | CONNECTOR - jumper (water pressure switch, for connector see 115D14) | 1 | |
| 26 | 92-5407 | BRACKET - support | 1 | |
| 51-751 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 27 | 92-6193 | BRACKET - diagnostic plug | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 28 | 41-7737 | HARNESS - J1939 | 1 | |
| 29 | 41-4817 | CONNECTOR - liq tite | 1 | |
| 41-5359 | WASHER - sealing | 1 | ||
| 55-2635 | NUT - lock | 1 | ||
| 30 | 44-9631 | CONNECTOR - male (3-pin) | 1 | |
| 44-9536 | WEDGE - 3 term | 1 | ||
| 31 | 41-2405 | CONNECTOR - receptacle (5-pin) | 1 | |
| 32 | 33-2110 | GROMMET (1.00 in id) | 1 | |
| 33 | 41-7958 | TRANSDUCER - pressure (suction) | 1 | |
| 34 | 41-7956 | TRANSDUCER - pressure (discharge) | 1 |
