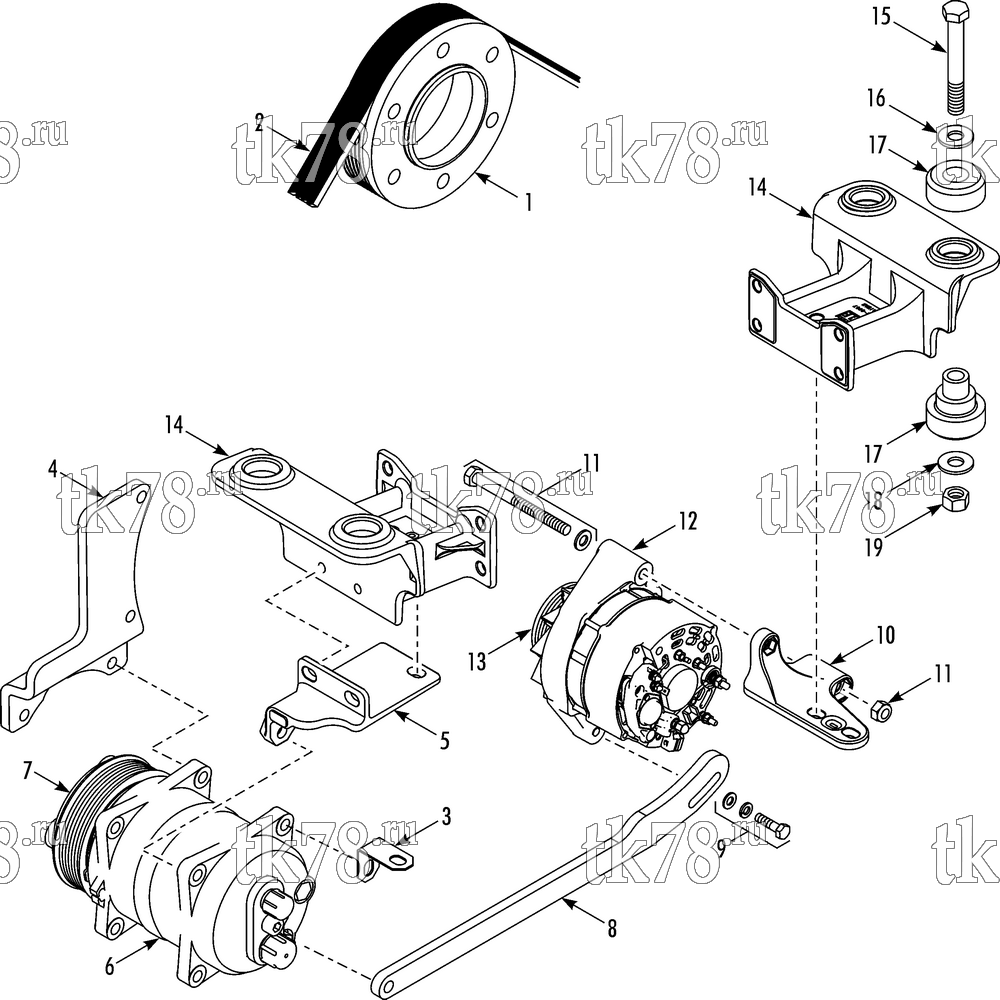

Установкa Thermo King схема BELT & PULLEY GROUP (7/10 & after) – 246C4
Обновление от: 5/22/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-2971 | PULLEY - flywheel | 1 | |
| 55-9496 | SCREW - pulley | 6 | ||
| 55-5411 | LOCKWASHER | 6 | ||
| 203-400 | SEALER - thread | A/R | ||
| 2 | 78-1655 | BELT - compressor & alternator (poly groove, use w/ 3.1 dia alt pulley) | 1 | |
| 78-1664 | BELT - compressor & alternator (poly groove, use w/ 1.9 dia alt pulley) | 1 | ||
| 90-436 | KIT - cradle retrofit (inc items 3, 4, 5, 8, 9 & 10) | 1 | ||
| 3 | 92-8667 | STRAP - ground | 1 | |
| 4 | 92-8468 | BRACKET - compressor (clutch end) | 1 | |
| 55-6998 | SCREW - bracket | 2 | ||
| 55-7347 | LOCKWASHER | 2 | ||
| 55-8536 | FLATWASHER | 2 | ||
| 5 | 92-8469 | BRACKET - compressor (rear) | 1 | |
| 55-7839 | SCREW - bracket | 3 | ||
| 55-7347 | LOCKWASHER | 3 | ||
| 55-8536 | FLATWASHER | 3 | ||
| 6 | 102-1004 | COMPRESSOR - 15HD (see 220C5) | 1 | |
| 7 | 107-311 | CLUTCH (12V, 4.62 in, poly groove, 8V) | 1 | |
|
10-107-261 | Муфта электромагнитная, 8PV/12V, TM13/15/16, QP13/15/16 | 7 740 ₽ |
|
| 203-502 | OIL - compressor (8 oz) | A/R | ||
| 51-1478 | SCREW - compressor (25mm) | 2 | ||
| 55-7839 | SCREW - compressor (35mm) | 2 | ||
| 55-8536 | FLATWASHER | 4 | ||
| 55-7344 | NUT | 4 | ||
| 8 | 92-8475 | TENSIONER - alternator adjust | 1 | |
| 92-9046 | TENSIONER - alternator adjust (7/11 & after) | 1 | ||
| 51-1478 | SCREW - tensioner to compressor (M10) | 1 | ||
| 55-8536 | FLATWASHER | 2 | ||
| 55-7344 | NUT | 1 | ||
| 9 | 55-6987 | SCREW - adjustment (M8) | 1 | |
| 55-7342 | LOCKWASHER | 1 | ||
| 55-7085 | FLATWASHER | 1 | ||
| 10 | 90-439 | MOUNT - alternator | 1 | |
| 92-9045 | MOUNT - alternator (7/11 & after) | 1 | ||
| 55-7839 | SCREW - mount (M10) | 2 | ||
| 55-7347 | LOCKWASHER | 2 | ||
| 55-8536 | FLATWASHER | 2 | ||
| 55-6987 | SCREW - mount (M8) | 1 | ||
| 55-7085 | FLATWASHER | 1 | ||
| 55-7339 | NUT | 1 | ||
| 11 | 51-2060 | SCREW - alternator (M10x110) | 1 | |
| 55-8536 | FLATWASHER | 1 | ||
| 55-7344 | NUT | 1 | ||
| 12 | 41-6990 | ALTERNATOR (TK 65 amp, ccw, see 208F11) | 1 | |
|
10-45-2590 | Генератор 65A, UT800/1200 | 13 870 ₽ |
|
|
10-41-6781 | Генератор 65A, SB-XXX/SMX/SMX-II/SL/SLe/SLX/SLXe SB-II/III | 13 840 ₽ |
|
| 42-367 | ALTERNATOR (65 amp new exchange) | 1 | ||
| 41-9856 | ALTERNATOR (65 amp IC REG CCW, see 242H0) | 1 | ||
| 41-9925 | ALTERNATOR (TK 120 amp, see 264B5) | 1 | ||
| 13 | 77-2845 | PULLEY - alternator (3.1 dia 6K) | 1 | |
| 77-2925 | PULLEY - alternator (1.9 dia. 6K, used with 120 amp alt) | 1 | ||
| 14 | 92-8892 | MOUNT - engine (before 7/11) | 2 | |
| 92-8892 | MOUNT - engine (7/11 & after) | 2 | ||
| 55-6998 | SCREW - mount | 8 | ||
| 55-7347 | LOCKWASHER | 8 | ||
| 55-8536 | FLATWASHER | 8 | ||
| 15 | 55-5075 | SCREW - engine mount | 4 | |
| 16 | 55-5871 | WASHER - special | 4 | |
| 17 | 92-8893 | MOUNT - engine | 4 | |
| 20-92-8893 | Опора | 4 630 ₽ |
|
|
|
10-91-2338 | Подушка двигателя, CD/JD/KD/MD-II | 3 020 ₽ |
|
| 18 | 55-2038 | FLATWASHER | 4 | |
| 19 | 55-3686 | NUT | 4 |
