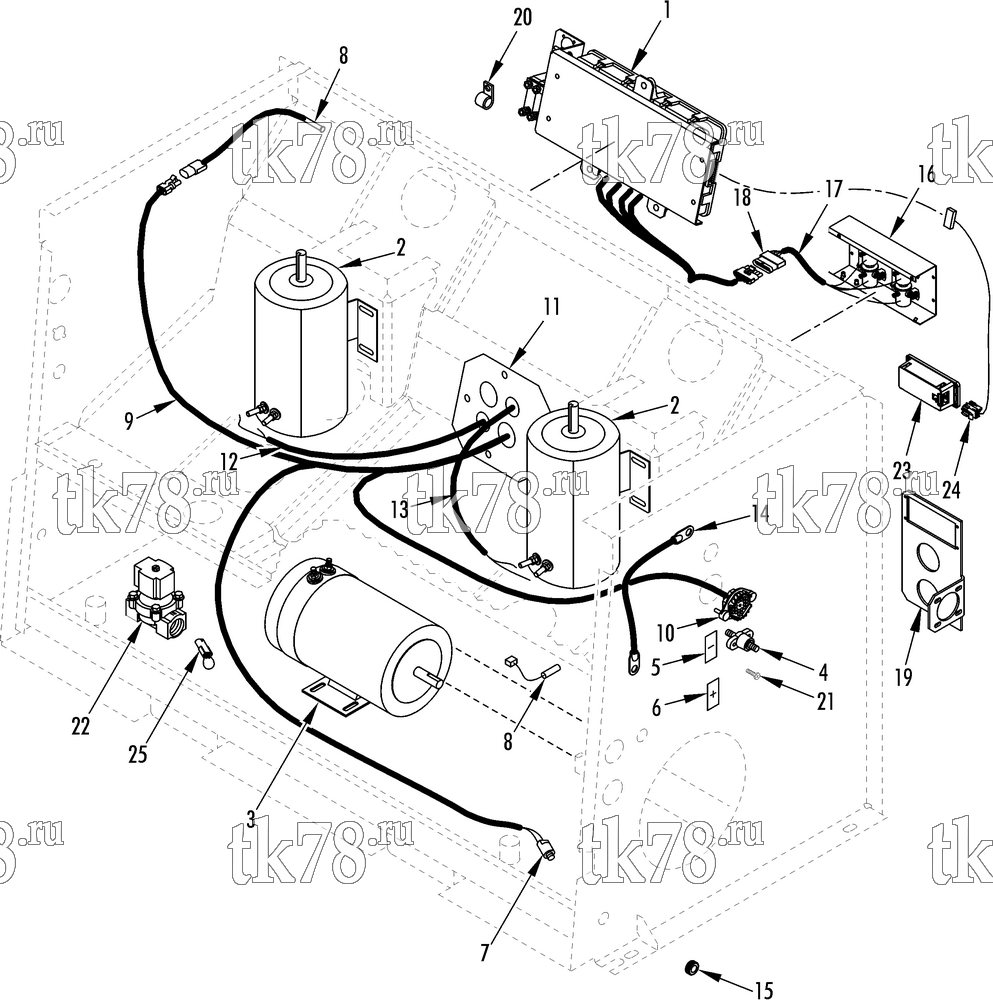

Установкa Thermo King схема ELECTRICAL COMPONENTS – 246C3
Обновление от: 6/11/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3616 | MODULE - IntelligAIRE (see 172A2) | 1 | |
| 2 | 104-652 | MOTOR - condenser (see 153G4) | 2 | |
| 3 | 104-651 | MOTOR - evaporator (see 153G5) | 1 | |
| 4 | 55-9551 | STUD - terminal (black) | 1 | |
| 55-671 | NUT (3/8-16) | 2 | ||
| 55-448 | FLATWASHER (3/8) | 2 | ||
| 55-3066 | LOCKWASHER (3/8) | 2 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 44-6965 | SWITCH - condenser fan (R134a, for connectors see 115D14) | 1 | |
| 41-307 | SWITCH - only (R134a) | 1 | ||
| 44-6349 | SWITCH - condenser fan (R407c, for connectors see 115D14) | 1 | ||
| 44-6427 | SWITCH - only (R407c) | 1 | ||
| 8 | 41-7706 | SENSOR - temperature | 2 | |
| 9 | 41-8445 | HARNESS - main (IntelligAIRE, see 231H5) | 1 | |
| 10 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - secondary | 1 | ||
| 11 | 92-1290 | COVER - harness blockoff | 1 | |
| 55-1587 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 12 | 41-4901 | HARNESS - condenser motor (1) | 1 | |
| 55-9135 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 13 | 41-4966 | HARNESS - condenser motor (2) | 1 | |
| 55-9135 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 14 | 41-9298 | HARNESS - power | 1 | |
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 55-2635 | NUT - connector | 1 | ||
| 41-5437 | HARNESS - cable | 1 | ||
| 55-2635 | LOCKNUT (3/4) | 2 | ||
| 41-4914 | HARNESS (34A) | 1 | ||
| 41-4910 | HARNESS (35) | 1 | ||
| 41-6729 | HARNESS - single wire (CH, 30 inch) | 1 | ||
| 41-6730 | HARNESS - single wire (CH, 38 inch) | 1 | ||
| 41-6731 | HARNESS - single wire (34A, 90 inch) | 1 | ||
| 41-6732 | HARNESS - single wire (CH, 28 inch) | 1 | ||
| 15 | 33-287 | GROMMET (5/8 id) | 1 | |
| 16 | 91-8062 | PANEL - solenoid (see 146C14) | 1 | |
| 17 | 41-4900 | HARNESS - brush motors | 1 | |
| 18 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 19 | 92-1289 | BRACKET - display | 1 | |
| 20 | 55-9720 | CLAMP (0.187 dia) | 1 | |
| 55-9227 | CLAMP (0.375 dia) | 2 | ||
| 51-151 | CLAMP (0.562 dia) | 5 | ||
| 51-178 | CLAMP (0.625 dia) | 1 | ||
| 55-9721 | CLAMP (0.875 dia) | 1 | ||
| 55-9311 | CLAMP (1.000 dia) | 3 | ||
| 55-1587 | SCREW - clamp | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 21 | 55-9700 | SCREW - stud | 2 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 22 | 41-7599 | VALVE - solenoid (water, 24V) | 1 | |
| 23 | 41-7199 | MODULE - display | 1 | |
| 55-2997 | SCREW - display | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-5754 | NUT | 4 | ||
| 24 | 41-4195 | HARNESS - unit display | 1 | |
| 41-4284 | CONNECTOR (6 terminal) | 1 | ||
| 41-4285 | LOCK - terminal | 2 | ||
| 41-4283 | CONNECTOR | 1 | ||
| 41-4899 | CONNECTOR | 1 | ||
| 25 | 44-8197 | CONNECTOR - jumper (coolant pressure sw) | 1 |
