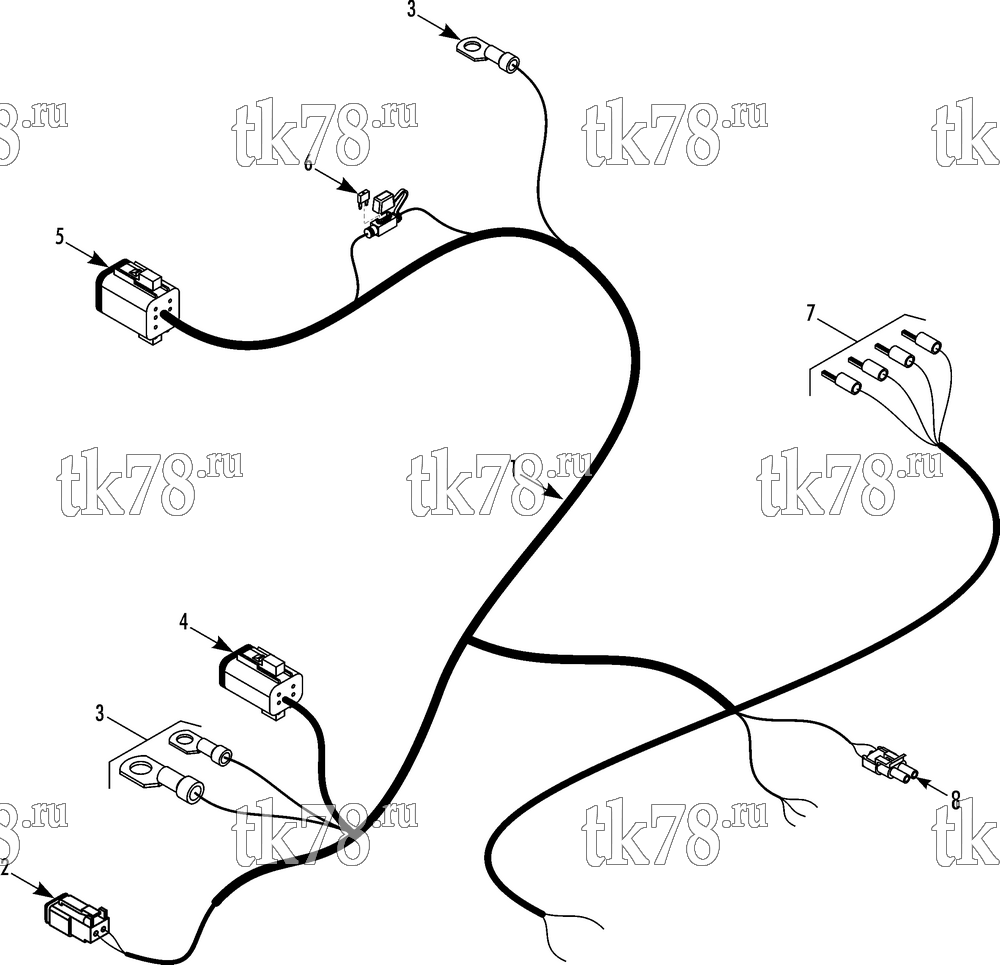

Установкa Thermo King схема HARNESS INTERCONNECT – 246C1
Обновление от: 8/31/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5692 | HARNESS - interconnection | 1 | |
| 2 | 44-9585 | PLUG (2-pin, w/ seal, see 112D9) | 1 | |
| 3 | 44-2789 | TERMINAL - ring (16-14 1/4) | 1 | |
| 41-9494 | TERMINAL - ring (6 ga 1/4) | 2 | ||
| 4 | 44-8935 | PLUG (4-pin, w/ seal, see 112D9) | 1 | |
| 5 | 44-8914 | CONNECTOR (6-pin, see 112D9) | 1 | |
| 6 | 41-4551 | FUSE - 5 amp | 1 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-3074 | HOLDER - fuse | 1 | ||
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 7 | 44-9587 | SOCKET (18 ga) | 5 | |
| 8 | 44-5838 | CONNECTOR - tower (2-pin, see 115D14) | 1 |
