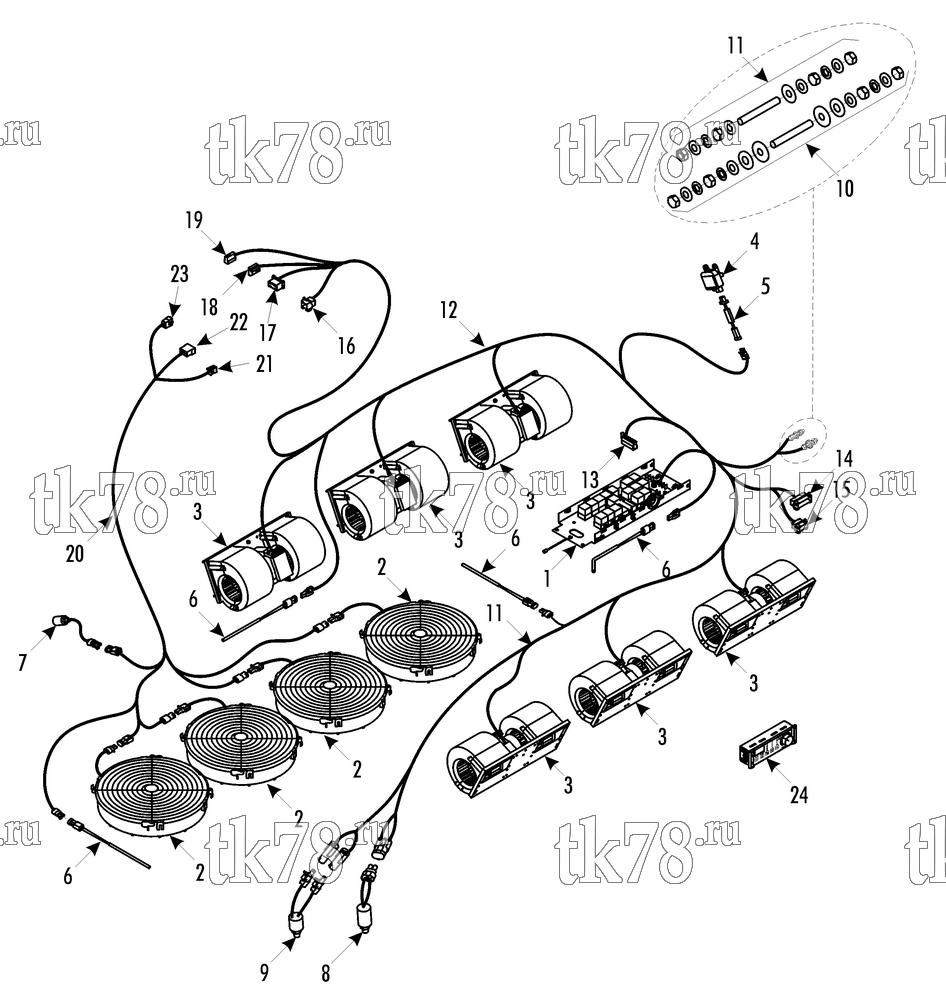

Установкa Thermo King схема ELECTRICAL COMPONENTS - (ClimaAIRE II - 1000) – 245H2
Обновление от: 2/9/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROL PANEL (see 245H3) | 1 | |
| 2 | NSS | FAN (see 194C4) | 4 | |
| 3 | 78-1297 | BLOWER | 6 | |
| 55-7696 | SCREW - blower | 30 | ||
| 55-7031 | LOCKWASHER | 30 | ||
| 55-7697 | FLATWASHER | 30 | ||
| 4 | 41-3255 | SERVOMOTOR (see 232E8) | 1 | |
| 5 | 41-7190 | CONTROLLER - servomotor (see 232E8) | 1 | |
| 6 | 41-4157 | SENSOR - temperature | 4 | |
| 7 | 41-5220 | SWITCH - pressure, cps (see 194C5) | 1 | |
| 8 | 41-1501 | SWITCH - hpco (see 245H5) | 1 | |
| 9 | 41-4147 | SWITCH - lpco (see 245H5) | 1 | |
| 10 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 11 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER | 1 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-9189 | NUT | 4 | ||
| 12 | 41-9372 | HARNESS - evaporator (for connectors see 115D14) | 1 | |
| 13 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 14 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 15 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 16 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 17 | 41-3862 | CONNECTOR (6-pin) | 1 | |
| 18 | 41-3493 | CONNECTOR (3-pin) | 1 | |
| 19 | 41-2891 | CONNECTOR (2 terminals, male) | 1 | |
| 41-3968 | BOARD - pc | 1 | ||
| 44-3228 | DIODE - rectifier | 2 | ||
| 20 | 41-5211 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 21 | 41-2767 | CONNECTOR (6-pin, female) | 1 | |
| 22 | 41-3967 | CONNECTOR (6-pin) | 1 | |
| 23 | 41-3966 | CONNECTOR (3-pin) | 1 | |
| 24 | 41-4658 | ClimaAIRE II (see 184F9) | 1 |
