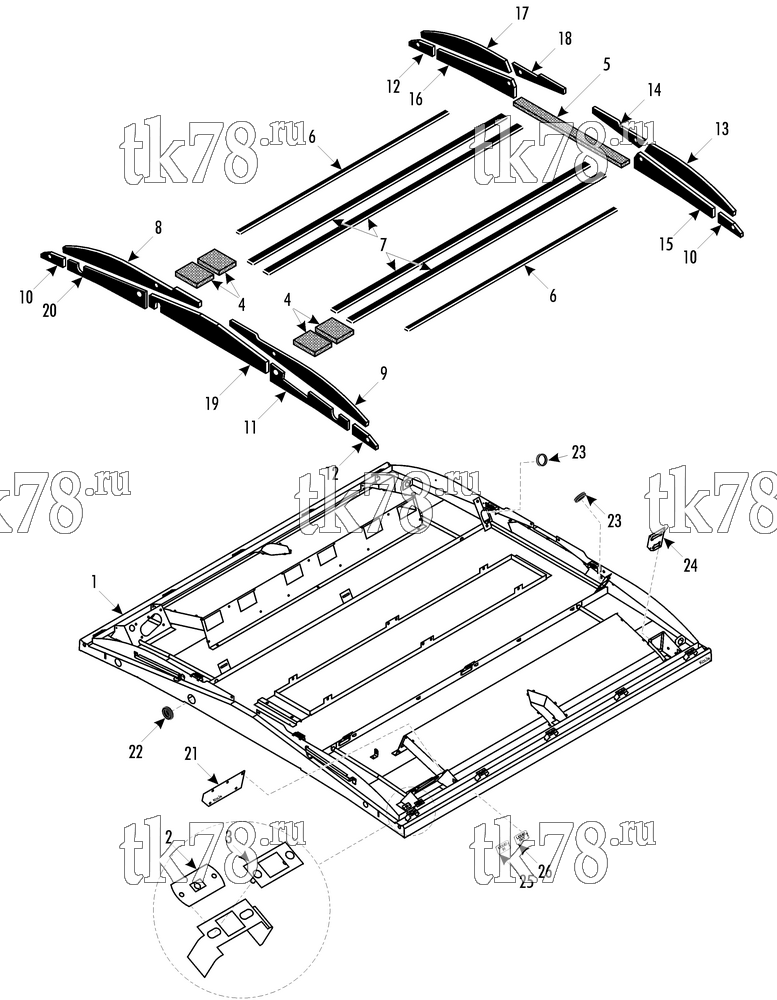

Установкa Thermo King схема EVAPORATOR FRAME & INSULATION – 245G8
Обновление от: 2/9/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6539 | FRAME - evaporator | 1 | |
| 55-7866 | NUT - captive (M4) | A/R | ||
| 55-8375 | NUT - captive (M5) | A/R | ||
| 55-7373 | NUT - captive (M6) | A/R | ||
| 2 | 55-2074 | NUT - speed | 14 | |
| 91-7625 | LOCKPLATE | 14 | ||
| 3 | 55-3010 | RIVET - lockplate | A/R | |
| 4 | 92-1219 | FILTER - air | 4 | |
| 5 | 92-1220 | FILTER - air | 1 | |
| 6 | 33-3540 | STRIP - neoprene | A/R | |
| 7 | 33-4330 | STRIP - neoprene | A/R | |
| 8 | 92-926 | INSULATION | 1 | |
| 9 | 92-927 | INSULATION | 1 | |
| 10 | 92-928 | INSULATION | 2 | |
| 11 | 92-929 | INSULATION | 1 | |
| 12 | 92-930 | INSULATION | 2 | |
| 13 | 92-933 | INSULATION | 1 | |
| 14 | 92-934 | INSULATION | 1 | |
| 15 | 92-935 | INSULATION | 1 | |
| 16 | 92-1471 | INSULATION | 1 | |
| 17 | 92-1473 | INSULATION | 1 | |
| 18 | 92-938 | INSULATION | 1 | |
| 19 | 92-931 | INSULATION | 1 | |
| 20 | 92-932 | INSULATION | 1 | |
| 21 | 92-2318 | PLATE (unit w/o heater) | 1 | |
| 55-7036 | SCREW - plate (M5) | 5 | ||
| 55-7089 | FLATWASHER | 5 | ||
| 55-7404 | LOCKWASHER | 5 | ||
| 55-8375 | NUT - captive (M5) | 5 | ||
| 22 | 33-315 | GROMMET (1.312 id) | 1 | |
| 23 | 33-1371 | GROMMET (1.703 id) | 2 | |
| 24 | 92-2957 | PLATE | 1 | |
| 25 | 91-7703 | NAMEPLATE - Liquid In (unit w/ heater) | 1 | |
| 26 | 91-7550 | NAMEPLATE - Liquid Out (unit w/ heater) | 1 |
