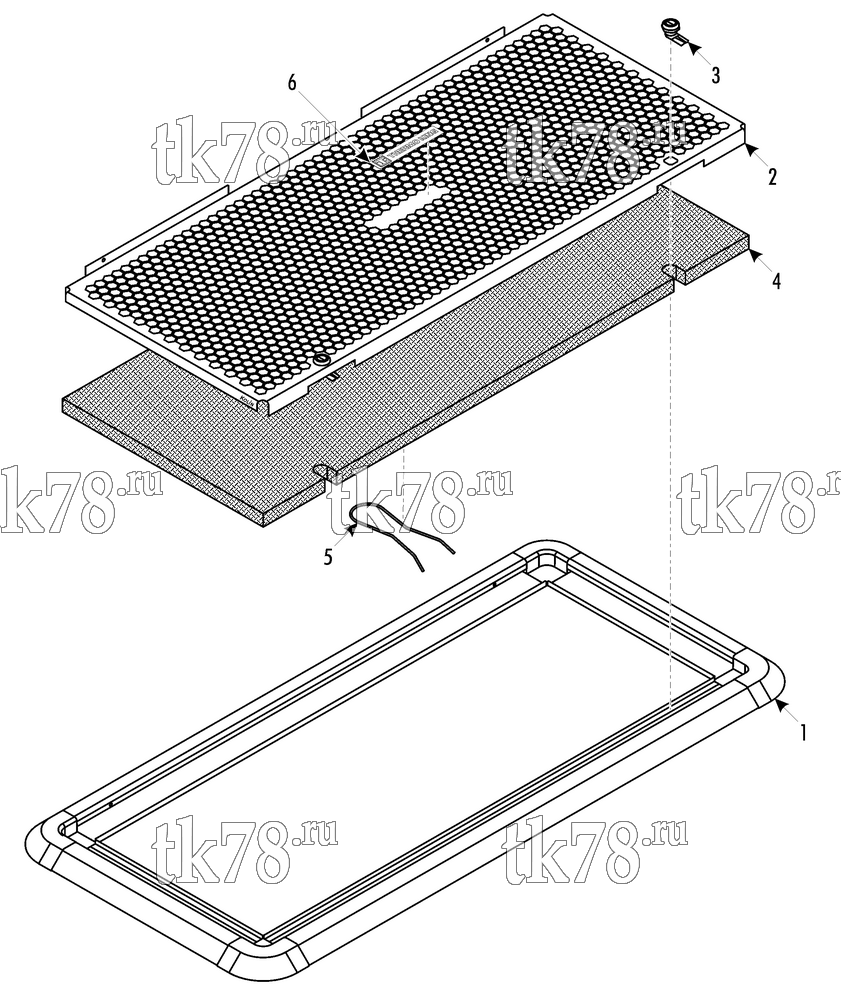

Установкa Thermo King схема RETURN AIR GRILLE (702358) – 245G3
Обновление от: 1/18/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8672 | FRAME | 1 | |
| 57-5812 | SCREW - return air grille | 8 | ||
| 2 | 98-8673 | PANEL - filter | 1 | |
| 55-5047 | RIVET - panel | 2 | ||
| 3 | 92-8875 | LATCH | 2 | |
| 4 | 92-8797 | FILTER | 1 | |
| 5 | 91-9343 | CLIP - filter | 1 | |
| 6 | 91-9638 | NAMEPLATE - Thermo King | 1 |
