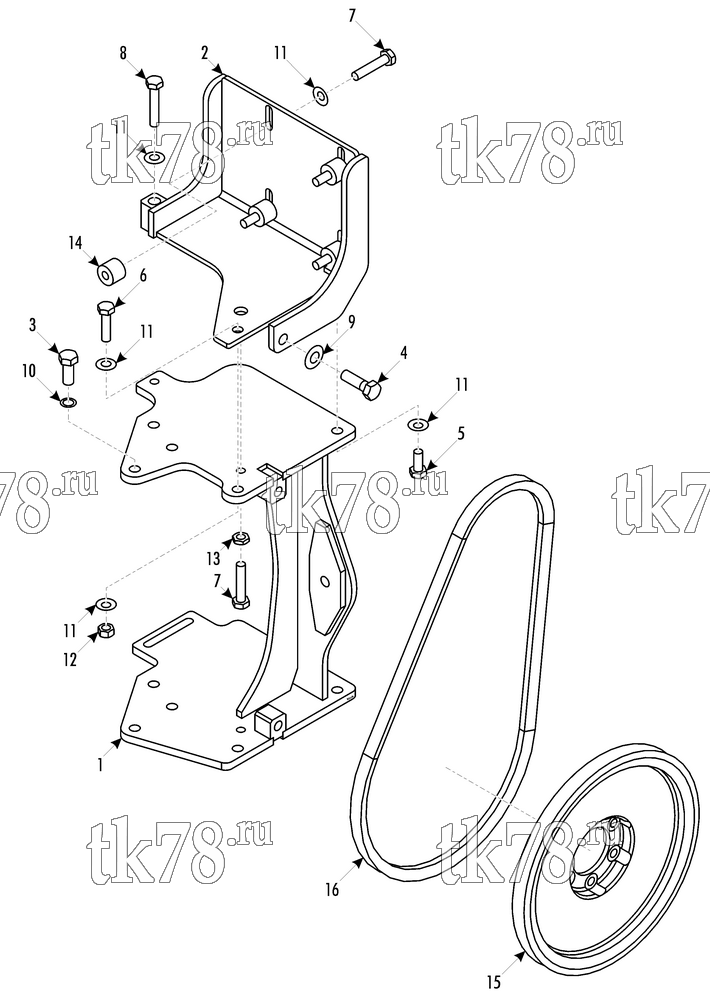

Установкa Thermo King схема DRIVE KIT 701370 - DENNIS DART E200 CHASSIS/E4 TM31 – 245C9
Обновление от: 9/14/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2197 | CRADLE - engine | 1 | |
| 2 | 108-2992 | BRACKET - compressor | 1 | |
| 3 | 55-4723 | SCREW - bracket | 1 | |
| 4 | 55-7350 | SCREW - bracket | 1 | |
| 5 | 55-5579 | SCREW - bracket | 1 | |
| 6 | 55-5427 | SCREW - bracket | 1 | |
| 7 | 55-5589 | SCREW - bracket & compressor | 5 | |
| 8 | 55-7684 | SCREW - bracket | 1 | |
| 9 | 51-145 | WASHER - conical spring | 1 | |
| 10 | 55-5006 | LOCKWASHER | 1 | |
| 11 | 51-144 | WASHER - conical spring | 8 | |
| 12 | 55-6573 | NUT | 1 | |
| 13 | 51-613 | NUT | 1 | |
| 14 | 108-2993 | SPACER | 4 | |
| 15 | 108-2994 | PULLEY | 1 | |
| 16 | 108-2995 | BELT | 1 |
