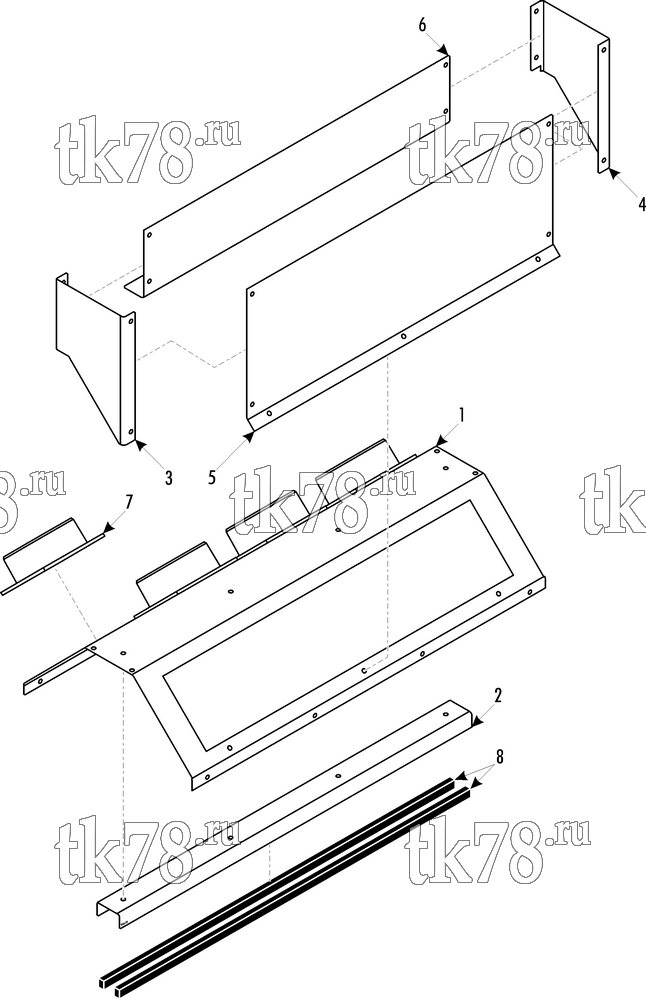

Установкa Thermo King схема AIR OUTLET MODULE - AIR DUCT (008759) – 245A4
Обновление от: 8/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8041 | COVER | 1 | |
| 2 | 92-8080 | ENDSTOP | 1 | |
| 3 | 92-2576 | COVER - connector | 1 | |
| 4 | 92-2577 | COVER - connector | 1 | |
| 5 | 92-2578 | COVER - connector | 1 | |
| 6 | 92-2579 | COVER - connector | 1 | |
| 7 | 92-3790 | CONNECTOR - air (75.0 od) | 4 | |
| 51-256 | RIVET - covers, endstop & connectors | A/R | ||
| 8 | 33-4537 | STRIP - sealing | A/R |
