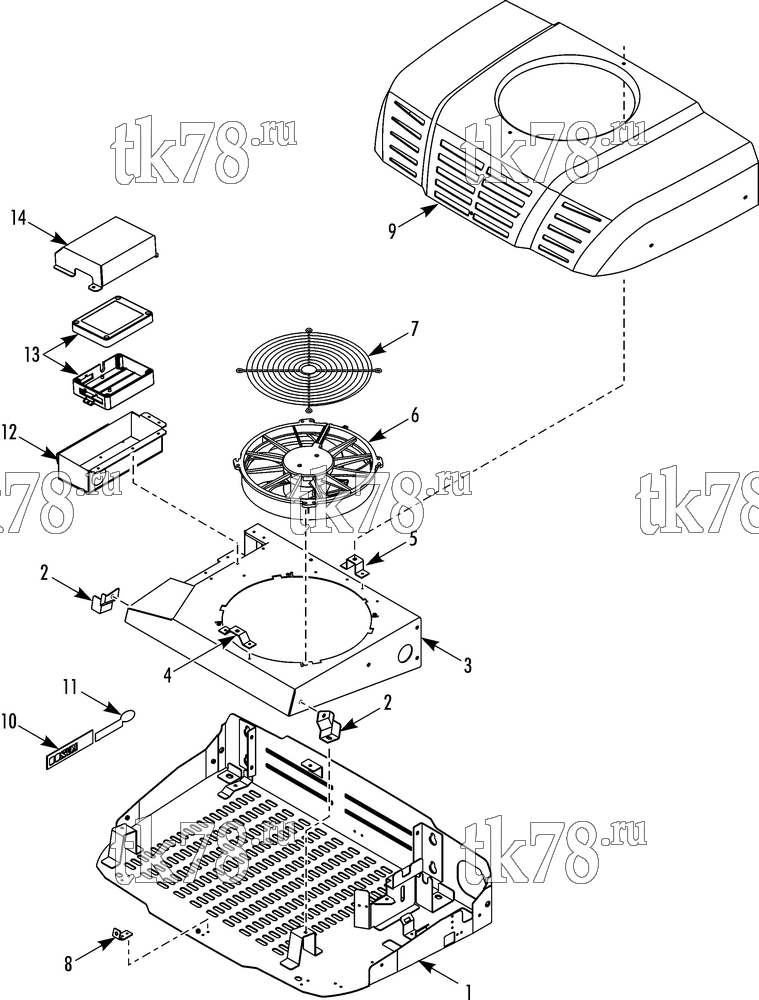

Установкa Thermo King схема CONDENSER STRUCTURAL (NOSE MOUNT) – 244D9
Обновление от: 4/21/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8457 | FRAME - condenser | 1 | |
| 2 | 92-8200 | BRACKET - shroud | 2 | |
| 3 | 98-8458 | SHROUD - condenser | 1 | |
| 4 | 92-8201 | BRACKET - cover support | 1 | |
| 5 | 92-8202 | BRACKET - cover support | 1 | |
| 6 | 41-9296 | FAN - condenser (24V) | 1 | |
| 41-9297 | FAN - condenser (12V) | 1 | ||
| 7 | 98-5425 | GUARD - fan | 1 | |
| 8 | 92-8416 | BRACKET - nose mount | 1 | |
| 9 | 98-8513 | COVER - condenser | 1 | |
| 10 | 92-8205 | NAMEPLATE - KV200 | 2 | |
| 11 | 92-7367 | NAMEPLATE - IR Logo | 2 | |
| 12 | 92-8206 | SUPPORT - control box | 1 | |
| 13 | 92-7142 | BOX & COVER - control (see 230G9) | 1 | |
| 14 | 92-8207 | PLATE - cover | 1 |
