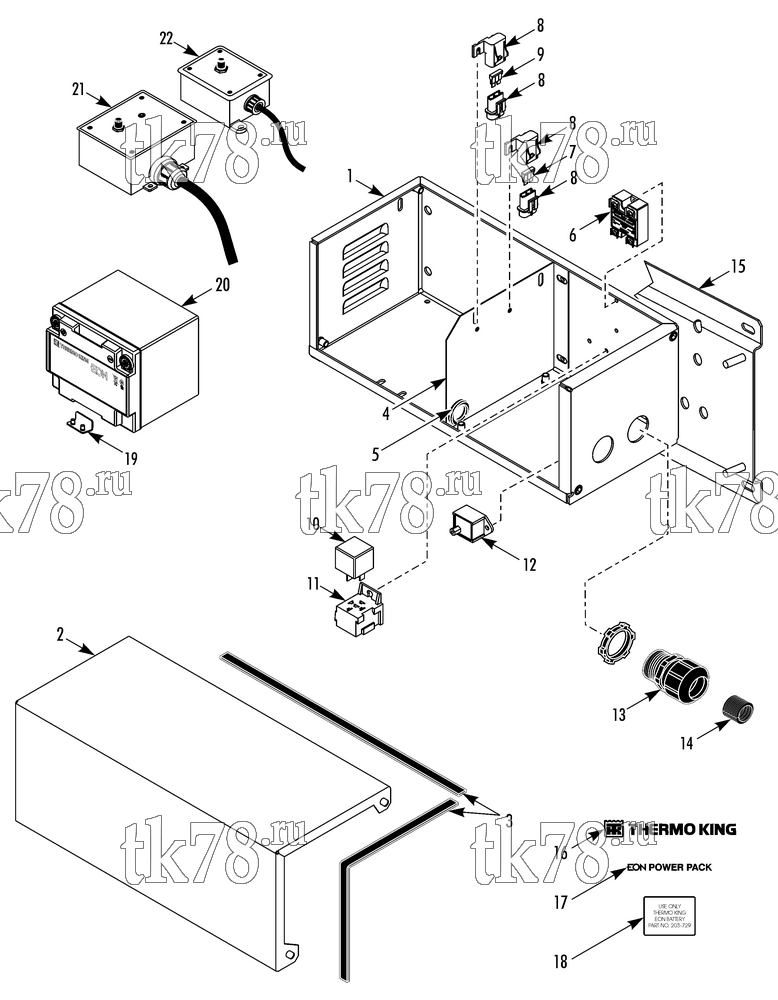

Установкa Thermo King схема EON POWER PACK (701477) – 242B9
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 40-999 | KIT - EON Power Pack | 1 | ||
| 1 | 92-8241 | BOX | 1 | |
| 55-4543 | WASHER - special | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4955 | NUT - box | 4 | ||
| 2 | 98-9130 | COVER | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 3 | 99-4976 | GASKET | A/R | |
| 4 | 92-8242 | DIVIDER | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 5 | 33-432 | GROMMET | 1 | |
| 6 | 45-2357 | DISCONNECT - low voltage | 1 | |
| 55-1801 | NUT - terminal & mounting | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2993 | LOCKWASHER (int tooth) | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 7 | 41-226 | FUSE (40 amp) | 1 | |
|
10-41-226 | Предохранитель 40 ампер 10 шт | 1 860 ₽ |
|
| 8 | 41-1770 | HOLDER - fuse | 2 | |
| 30-41-1770 | Гнездо предохранителя 32V 30А | 760 ₽ |
|
|
| 41-1769 | COVER - fuse | 2 | ||
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
|
| 55-3027 | SCREW - fuse holder | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 9 | 41-1259 | FUSE (25 amp) | 1 | |
|
10-41-1259 | Предохранитель 25 ампер 10 шт | 1 860 ₽ |
|
| 10 | 41-893 | RELAY (single throw) | 1 | |
| 11 | 44-5537 | SOCKET - relay | 1 | |
| 55-3029 | SCREW - socket | 1 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 1 | ||
| 55-2990 | NUT | 1 | ||
| 12 | 44-8680 | FILTER - power | 1 | |
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 13 | 55-5112 | CONNECTOR - harness grip | 2 | |
| 14 | 92-4706 | SLEEVING - cable (split) | A/R | |
| 15 | 92-7308 | BRACKET - power pak | 1 | |
| 51-1651 | SCREW - bracket to wall (8 in long) | 4 | ||
| 55-2641 | WASHER - special | 4 | ||
| 55-4955 | NUT | 4 | ||
| 16 | 92-1902 | NAMEPLATE - Thermo King | 1 | |
| 17 | 92-6241 | NAMEPLATE - EON Power Pack | 1 | |
| 18 | 92-6743 | NAMEPLATE - Battery | 1 | |
| 19 | 92-6287 | ANGLE - battery | 1 | |
| 55-8711 | INSERT | 2 | ||
| 20 | 203-729 | BATTERY | 1 | |
| 21 | 207-3132 | SWITCH - light w/brake disconnect | A/R | |
| 22 | 41-8180 | SWITCH - dome light | A/R |
