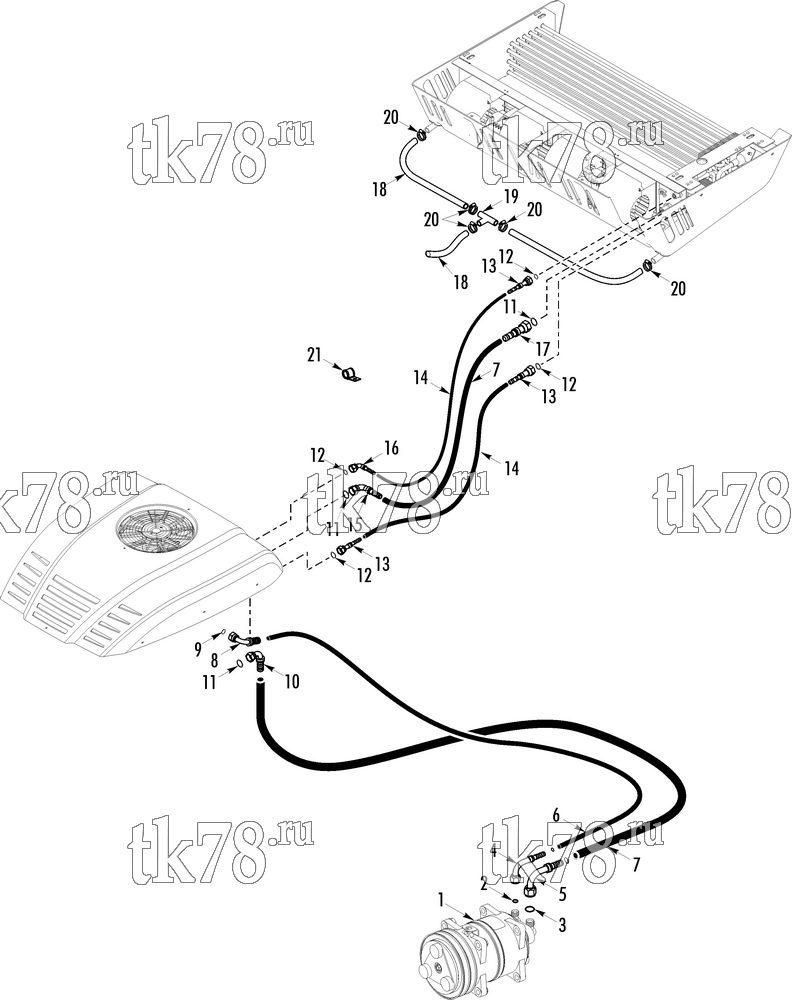

Установкa Thermo King схема HOSE CONNECTIONS – 242B5
Обновление от: 2/1/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-874 | COMPRESSOR - TM15-XD (less clutch) | 1 | |
| 107-241 | CLUTCH - assembly (2A, 12VDC) | 1 | ||
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 107-242 | CLUTCH - assembly (2A, 24VDC) | 1 | ||
|
10-107-242 | Сцепление/муфта электромагнитная, 2A/24V | 10 310 ₽ |
|
| 203-515 | OIL - compressor (1 liter, ester base) | A/R | ||
| 2 | 33-2350 | O-RING (tube-o, #8) | 1 | |
| 3 | 33-672 | O-RING (tube-o, #12) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 4 | 51-1971 | FITTING - 90 degree (#8) | 1 | |
| 5 | 51-1972 | FITTING - 90 degree (#12) | 1 | |
| 6 | 61-4959 | HOSE (#8, 4.0 meters) | A/R | |
| 7 | 61-4953 | HOSE (#12, 5.5 meters) | A/R | |
| 8 | 51-1978 | FITTING - 90 degree (#8) | 1 | |
| 9 | 33-566 | O-RING (#8) | 1 | |
| 10 | 51-1973 | FITTING - 90 degree (#12) | 1 | |
| 11 | 33-1222 | O-RING (#12) | 3 | |
| 12 | 33-1015 | O-RING (#6) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 13 | 51-1974 | FITTING - straight (#6) | 3 | |
| 14 | 61-4954 | HOSE (#6, 3.5 meters) | A/R | |
| 15 | 51-1977 | FITTING - 90 degree (#6) | 1 | |
| 16 | 51-1973 | FITTING - 90 degree (#12) | 1 | |
| 17 | 51-1976 | FITTING - straight (#12) | 2 | |
| 18 | 91-9006 | HOSE - defrost | A/R | |
| 19 | 55-6349 | FITTING - tee | A/R | |
| 20 | 55-6726 | CLAMP | A/R | |
| 21 | 55-549 | CLAMP - hose (1/2) | 2 | |
| 55-3026 | CLAMP - hose (5/8) | 2 | ||
| 55-3234 | CLAMP - hose (1-1/8) | 4 | ||
| 55-5640 | SCREW - clamp | 8 |
