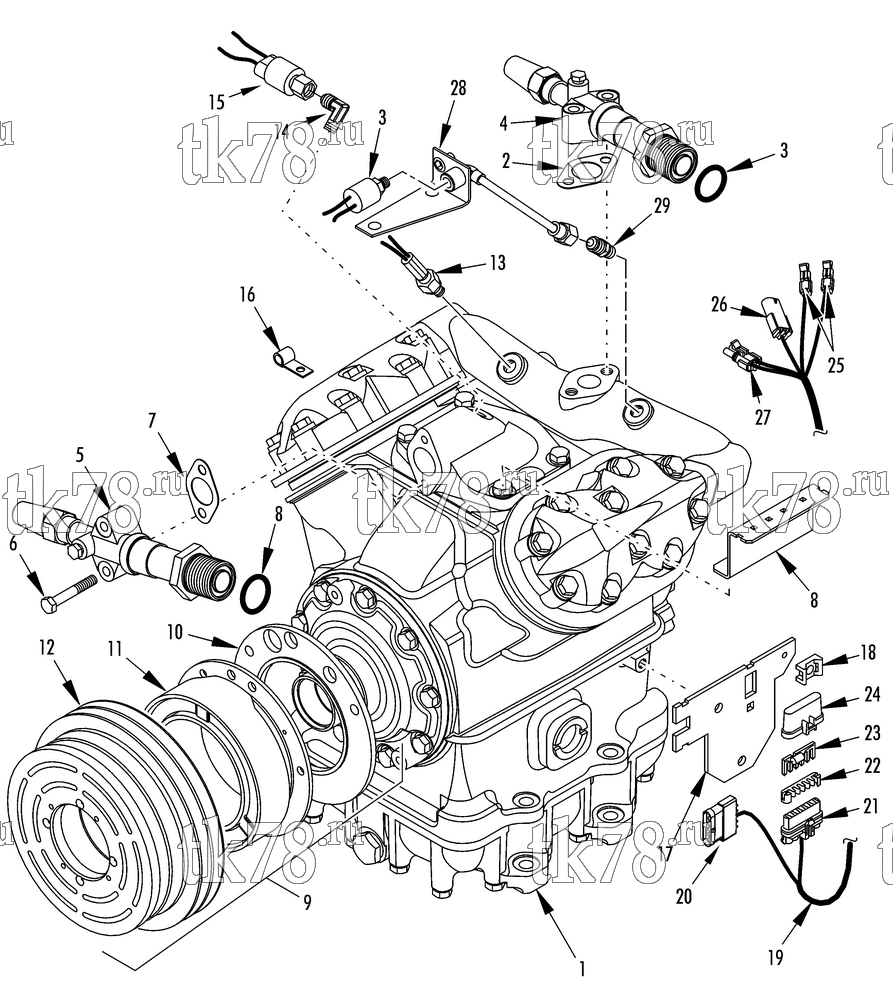

Установкa Thermo King схема COMPRESSOR GROUP (1E14104G02) – 242A1
Обновление от: 9/24/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 C5 (subassy, see 228E5) | 1 | |
| 8102-917 | COMPRESSOR - X430 C5 (subassy, reman) | 1 | ||
| 2 | 33-2805 | GASKET - valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 3 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 4 | 66-2140 | VALVE - discharge | 1 | |
| 55-6776 | SCREW - discharge valve | 2 | ||
| 55-6804 | WASHER - sealing | 2 | ||
| 5 | 66-3576 | VALVE - suction | 1 | |
| 6 | 55-201 | SCREW - suction valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 7 | 33-2541 | GASKET - suction valve | 1 | |
| 8 | 92-5946 | BRACKET - compressor harness | 1 | |
| 9 | NSS | CLUTCH - assembly | 1 | |
| 107-192 | KIT - clutch drive repair (see 153E8) | 1 | ||
| 10 | 77-1083 | PLATE | 1 | |
| 11 | 45-1227 | FIELD - clutch (24VDC) | 1 | |
| 12 | 77-1663 | PULLEY (2-B/2A grooves, 7.75/8.9 in od) | 1 | |
| 77-2392 | HUB & ARMATURE | 1 | ||
| 13 | 41-3345 | SENSOR - assembly (for connectors see 115D14) | 1 | |
| 14 | 55-308 | ELBOW - low pressure switch | 1 | |
| 33-768 | GASKET - elbow | 1 | ||
| 15 | 41-4558 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 41-4559 | SWITCH - only | 1 | ||
| 16 | 55-3102 | CLAMP - harness | 1 | |
| 55-2957 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 17 | 92-5945 | BRACKET - compressor harness | 2 | |
| 55-3834 | SCREW - bracket | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 18 | 99-3281 | MOUNT - cable tie | 1 | |
| 55-5047 | RIVET - mount | 1 | ||
| 19 | 41-4810 | HARNESS - compressor (see 115D14 for connectors) | 1 | |
| 20 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 21 | 41-1789 | CONNECTOR - tower (6-pin) | 1 | |
| 22 | 41-1790 | LOCK - secondary (6-pin connector) | 1 | |
| 23 | 41-4280 | DIODE | 1 | |
| 24 | 41-1787 | COVER - connector | 1 | |
| 25 | 44-7327 | CONNECTOR - tower (1-pin, see 115D14) | 2 | |
| 26 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 27 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 28 | 91-8288 | BRACKET - remote hpco | 1 | |
| 29 | 55-459 | COUPLING | 1 |
