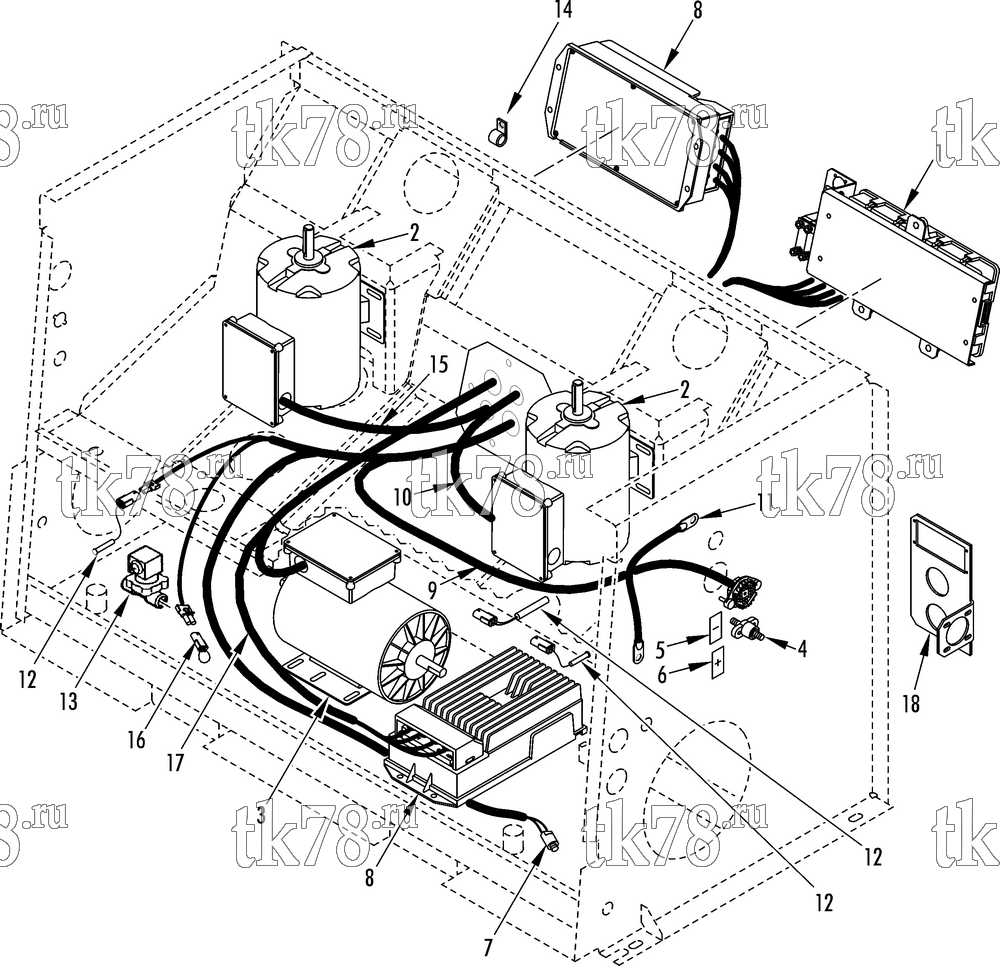

Установкa Thermo King схема ELECTRICAL COMPONENTS – 241F1
Обновление от: 1/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | MODULE - IntelligAIRE (see 172A2) | 1 | |
| 2 | 104-740 | MOTOR - condenser fan | 2 | |
| 3 | 104-741 | MOTOR - evaporator blower | 1 | |
| 4 | 55-9551 | STUD - terminal (black) | 1 | |
| 55-671 | NUT - terminal | 2 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-9700 | SCREW - stud | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 44-6349 | SWITCH - condenser fan (R22, R407c) | 1 | |
| 44-6427 | SWITCH - only (R22, R407c) | 1 | ||
| 44-6965 | SWITCH - condenser fan (R134a) | 1 | ||
| 41-307 | SWITCH - only (R134a) | 1 | ||
| 8 | 41-3590 | DRIVE - motor (see 166B8) | 2 | |
| 841-3590 | DRIVE - motor (reman) | 1 | ||
| 40-885 | KIT - power stud cleanup (see 187F2) | 1 | ||
| 55-2977 | SCREW - controller | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 9 | NSS | HARNESS - main (IntelligAIRE, see harness grid) | 1 | |
| 10 | 41-4191 | HARNESS - condenser motor (motor 1) | 1 | |
| 41-4921 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 11 | 41-9298 | HARNESS - positive | 1 | |
| 41-4817 | CONNECTOR - liquid tite | 2 | ||
| 55-2635 | NUT - connector | 2 | ||
| 41-4193 | HARNESS (34) | 1 | ||
| 41-4194 | HARNESS (35) | 1 | ||
| 41-5437 | HARNESS - battery cable (red) | 1 | ||
| 12 | 41-7706 | SENSOR - temperature | 3 | |
| 13 | 41-7599 | VALVE - solenoid (water, 24V) | 1 | |
| 14 | 55-9720 | CLAMP (.187 dia) | 1 | |
| 55-9227 | CLAMP (0.375 dia) | 2 | ||
| 51-151 | CLAMP (0.562 dia) | 5 | ||
| 51-178 | CLAMP (0.625 dia) | 1 | ||
| 55-9721 | CLAMP (0.875 dia) | 1 | ||
| 55-9311 | CLAMP (1.000 dia) | 1 | ||
| 55-1587 | SCREW - clamp | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 15 | 41-4190 | HARNESS - condenser motor (motor 2) | 1 | |
| 41-4610 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 16 | 44-8197 | CONNECTOR - jumper (water pressure switch) | 1 | |
| 17 | 41-4908 | HARNESS - evaporator motor | 1 | |
| 18 | 92-1289 | BRACKET - display | 1 | |
| 55-2977 | SCREW - bracket | 4 |
