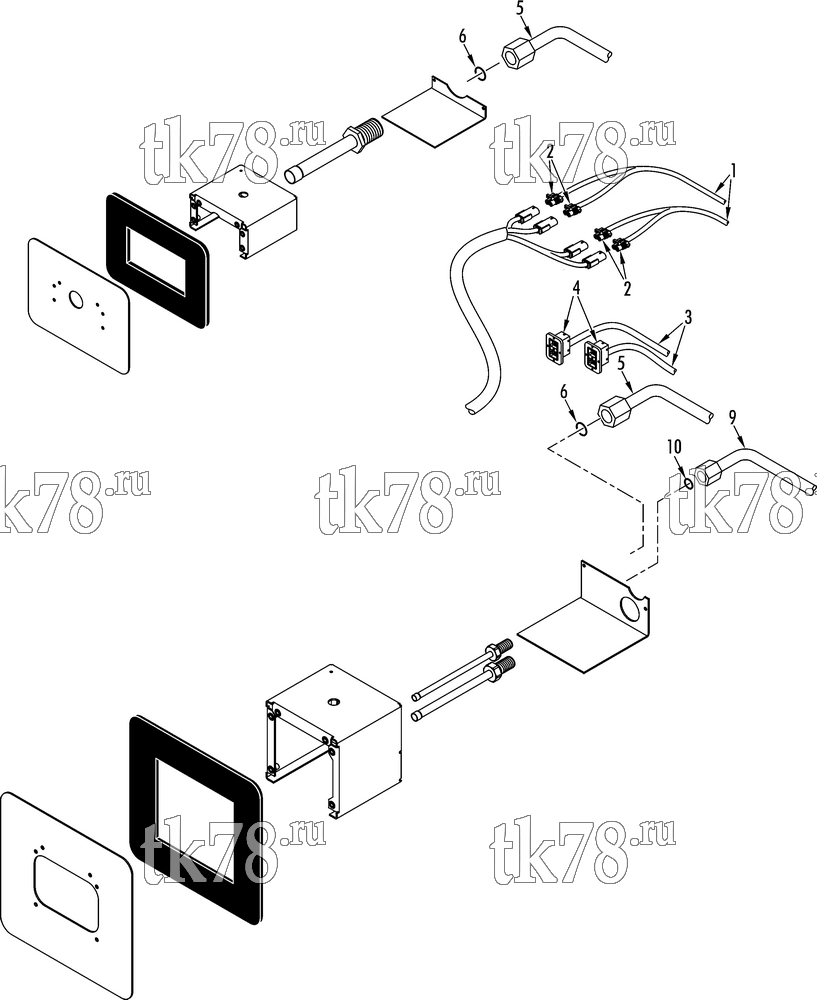

Установкa Thermo King схема REMOTE EVAPORATOR CONNECTION – 241D1
Обновление от: 5/6/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9230 | HARNESS - evaporator fan | 2 | |
| 2 | 44-9688 | CONNECTOR - female (2-pin) | 2 | |
| 44-8488 | LOCK - secondary | 2 | ||
| 33-2418 | SEAL | 4 | ||
| 44-9689 | TERMINAL - 10 ga | 4 | ||
| 3 | 41-9229 | HARNESS - evaporator | 1 | |
| 4 | 44-8897 | CONNECTOR (24-pin) | 1 | |
| 44-9602 | PIN - sealing | 12 | ||
| 41-8816 | SOCKET (18 ga, gold) | 12 | ||
| 5 | 61-831 | TUBE - suction | 1 | |
| 55-5935 | NUT - shoulder | 1 | ||
| 55-5939 | SHOULDER | 1 | ||
| 6 | 33-1777 | O-RING - suction (1-3/16 id) | 1 | |
| 7 | 61-4969 | TUBE - hot gas | 1 | |
| 55-6838 | NUT - shoulder | 1 | ||
| 55-6837 | SHOULDER | 1 | ||
| 8 | 33-566 | O-RING - hot gas (1/2 id) | 1 | |
| 9 | 66-9393 | TUBE - liquid | 1 | |
| 55-8267 | NUT - shoulder | 1 | ||
| 55-8268 | SHOULDER | 1 | ||
| 10 | 33-1015 | O-RING (3/8 id) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
