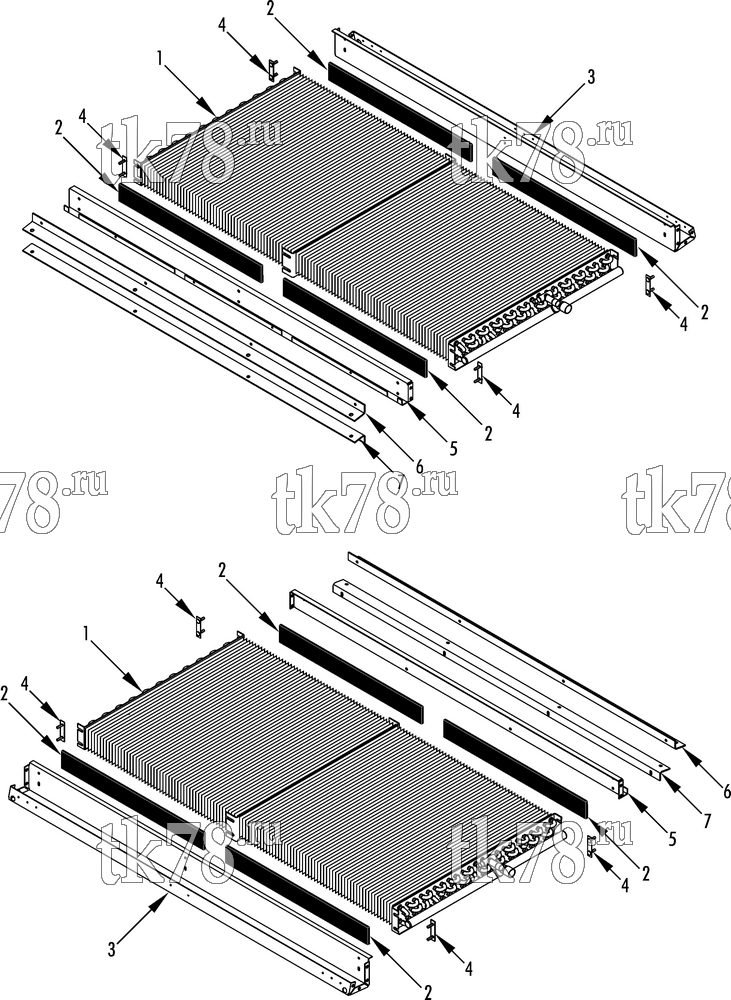

Установкa Thermo King схема CONDENSER MOUNTING COMPONENTS – 240G4
Обновление от: 10/30/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2437 | COIL - condenser | 2 | |
| 2 | 33-4506 | INSULATION - coil | 8 | |
| 3 | 98-8418 | CHANNEL - support, condenser | 2 | |
| 4 | 92-4646 | PLATE - boltstrip | 12 | |
| 55-2086 | FLATWASHER | 24 | ||
| 55-4953 | NUT | 24 | ||
| 5 | 98-8257 | PLATE - support, coil | 2 | |
| 55-8711 | INSERT | 24 | ||
| 6 | 98-8258 | ANGLE - support, top | 2 | |
| 7 | 98-8259 | ANGLE - support, bottom | 2 | |
| 55-8979 | INSERT | 8 |
