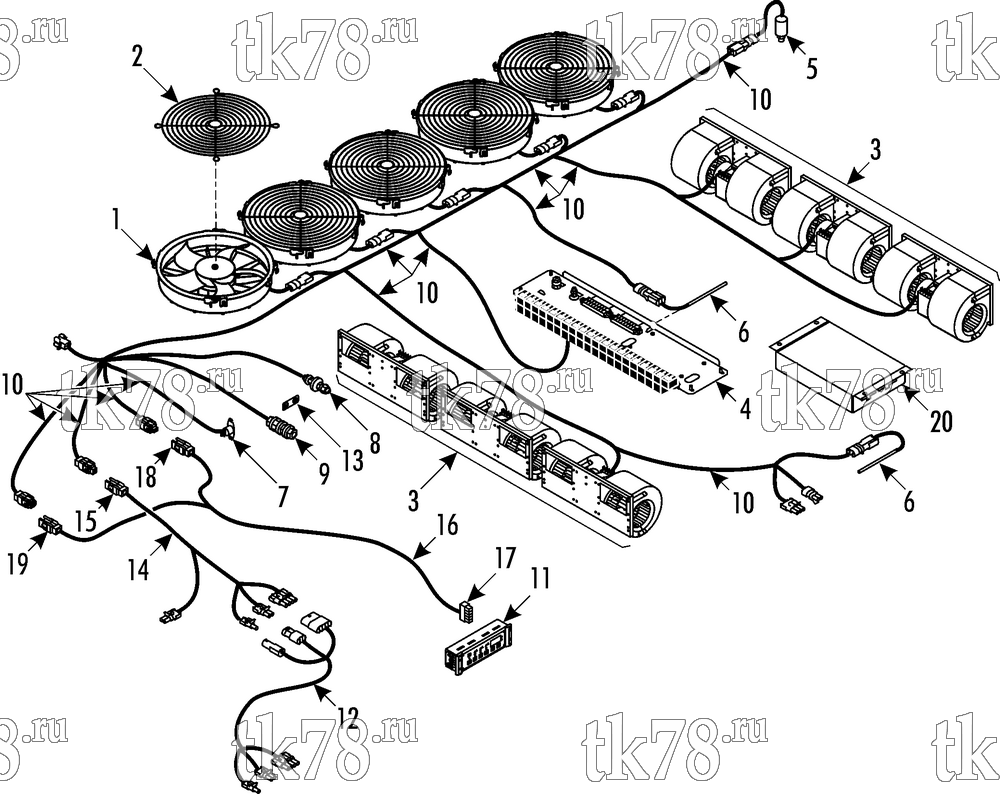

Установкa Thermo King схема ELECTRICAL COMPONENTS (CanAIRE) – 240F0
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1344 | FAN - condenser | 5 | |
| 2 | 98-5425 | GUARD - fan | 5 | |
| 55-7664 | SCREW - fan & guard | 25 | ||
| 55-9190 | LOCKWASHER | 25 | ||
| 55-8893 | FLATWASHER | 25 | ||
| 55-7866 | NUT - captive | 25 | ||
| 3 | 78-1297 | BLOWER - evaporator | 6 | |
| 55-7664 | SCREW - blower | 24 | ||
| 55-7031 | LOCKWASHER | 24 | ||
| 55-7368 | FLATWASHSER | 24 | ||
| 55-7866 | NUT - captive | 24 | ||
| 4 | NSS | CONTROL PANEL (see 240F10) | 1 | |
| 5 | 41-5220 | SWITCH - hpco | 1 | |
| 6 | 41-4157 | SENSOR - temperature | 2 | |
| 7 | 44-3292 | SWITCH - thermostat | 1 | |
| 55-7664 | SCREW - switch | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-8120 | FLATWASHER (nylon) | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 8 | 55-9367 | STUD - terminal | 1 | |
| 55-8631 | WASHER (nylon) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 9 | 55-9191 | STUD - terminal | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 10 | 41-9197 | HARNESS - city (for connectors see 115D14) | 1 | |
| 11 | 41-6998 | PANEL - SmartAIRE (see 240F4) | 1 | |
| 12 | 41-9198 | HARNESS - extension, compressor (14 m, for connectors see 115D14) | 1 | |
| 13 | 91-7509 | NAMEPLATE - Positive/Negative | 1 | |
| 14 | 41-3682 | HARNESS - compressor (8.6 m, w/ excitation, for connectors see 115D14) | 1 | |
| 41-3684 | HARNESS - compressor (14 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-9193 | HARNESS - compressor (12 m, for connectors see 115D14) | 1 | ||
| 15 | 41-2329 | CONNECTOR (9-pin, female) | 1 | |
| 41-1950 | CONNECTOR - strain relief | 1 | ||
| 16 | 41-9199 | HARNESS - SmartAIRE panel (12 m, for connectors see 115D14) | 1 | |
| 41-4604 | HARNESS - SmartAIRE panel (18.3 m, for connectors see 115D14) | 1 | ||
| 17 | 41-661 | CONNECTOR (14 term) | 1 | |
| 18 | 41-2247 | CONNECTOR (6 term, female) | 1 | |
| 41-1945 | CONNECTOR - strain relief | 1 | ||
| 19 | 41-2319 | CONNECTOR (12-pin, female) | 1 | |
| 41-1952 | CONNECTOR - strain relief | 1 | ||
| 20 | 41-8140 | MODULE - main, can | 1 | |
| 92-7576 | COVER - module | 1 | ||
| 51-1849 | SPACER - module | 4 | ||
| 51-1850 | SPACER - cover | 4 | ||
| 55-8410 | FLATWASHER | 8 | ||
| 55-9057 | LOCKWASHER | 4 | ||
| 55-9195 | SCREW | 4 |
