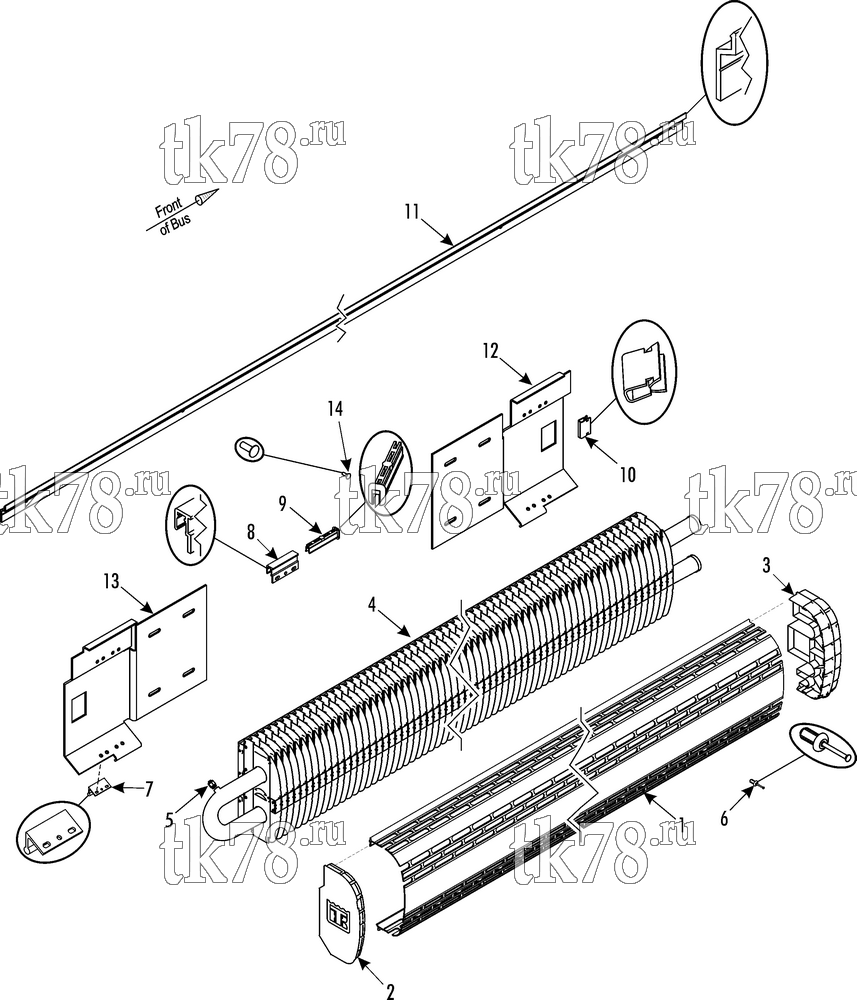

Установкa Thermo King схема CONVECTOR (1E46607G01) – 240D9
Обновление от: 9/9/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| NSS | CONVECTOR - TKV 800 (roadside rear) | 1 | ||
| 1 | 92-8083 | COVER (4ft lg) | A/R | |
| 2 | 92-3056 | CAP - end piece (left) | 1 | |
| 3 | 92-3430 | UNION (right) | 1 | |
| 4 | NSS | COIL - heater | 1 | |
| 5 | 61-1099 | VALVE - dearate | 1 | |
| 6 | 51-773 | RIVET - plastic | 2 | |
| 7 | 92-2649 | BRACKET - bottom | 2 | |
| 8 | 92-2650 | BRACKET - top | 2 | |
| 9 | 92-2647 | SLIDER | 2 | |
| 10 | 51-262 | CLAMP | 2 | |
| 11 | 92-7767 | BRACKET - fasting profile (4ft lg) | A/R | |
| 12 | 92-8085 | BRACKET - wall | 1 | |
| 13 | 92-8086 | BRACKET - wall end | 1 | |
| 14 | 51-1227 | RIVET | 18 |
