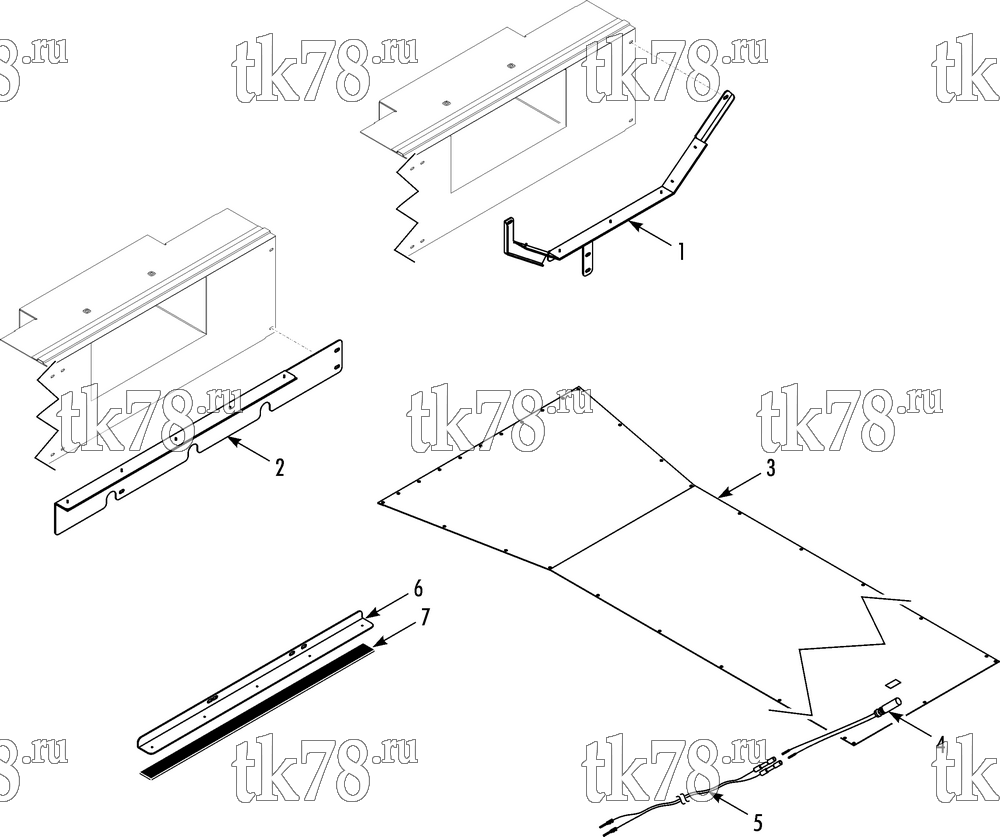

Установкa Thermo King схема AIR CHUTE – 240B3
Обновление от: 1/28/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 201-3023 | BRACKET - chute adapter (17 in. offset) | 1 | |
| 55-5972 | SCREW - bracket | A/R | ||
| 55-3045 | WASHER - dome | A/R | ||
| 2 | 201-3024 | ADAPTER - chute adapter (10 in. offset) | 1 | |
| 55-5965 | SCREW - adapter | A/R | ||
| 3 | 201-3034 | CHUTE - air (43 ft, polyethylene white) | 1 | |
| 201-3031 | CHUTE - air (38 ft, vinyl white) | 1 | ||
| 201-3035 | CHUTE - air (38 ft, polyethylene white) | 1 | ||
| 201-3037 | CHUTE - air (43 ft, vinyl white w/rivets) | 1 | ||
| 201-3038 | CHUTE - air (38 ft, vinyl white, w/rivets) | 1 | ||
| 201-3064 | CHUTE - air (velcro, 43 ft, vinyl white) | 1 | ||
| 201-3031 | CHUTE - air (velcro, 38 ft, vinyl white) | 1 | ||
| 201-3034 | CHUTE - air (velcro, 43 ft, polyethylene white) | 1 | ||
| 201-3040 | CHUTE - air (velcro, 38 ft, polyethylene white) | 1 | ||
| 201-3035 | CHUTE - air (velcro, 43 ft, polyethylene white, w/rivets) | 1 | ||
| 201-3041 | CHUTE - air (velcro, 38 ft, polyethylene white, w/rivets) | 1 | ||
| 201-3037 | CHUTE - air (velcro, 43 ft, vinyl white, w/rivets) | 1 | ||
| 201-3038 | CHUTE - air (velcro, 38 ft, vinyl white, w/rivets) | 1 | ||
| 51-1895 | RIVET - drive (nylon, set of 60) | 1 | ||
| 4 | 40-974 | KIT - sensor (graded) | 1 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 5 | 41-5490 | HARNESS - sensor (40 ft) | 1 | |
| 41-5491 | HARNESS - sensor (60 ft) | 1 | ||
| 6 | 201-3039 | BRACKET - adapter (Carrier X units) | 1 | |
| 7 | 201-3036 | VELCRO (4 ft, hook side of velcro) | A/R |
