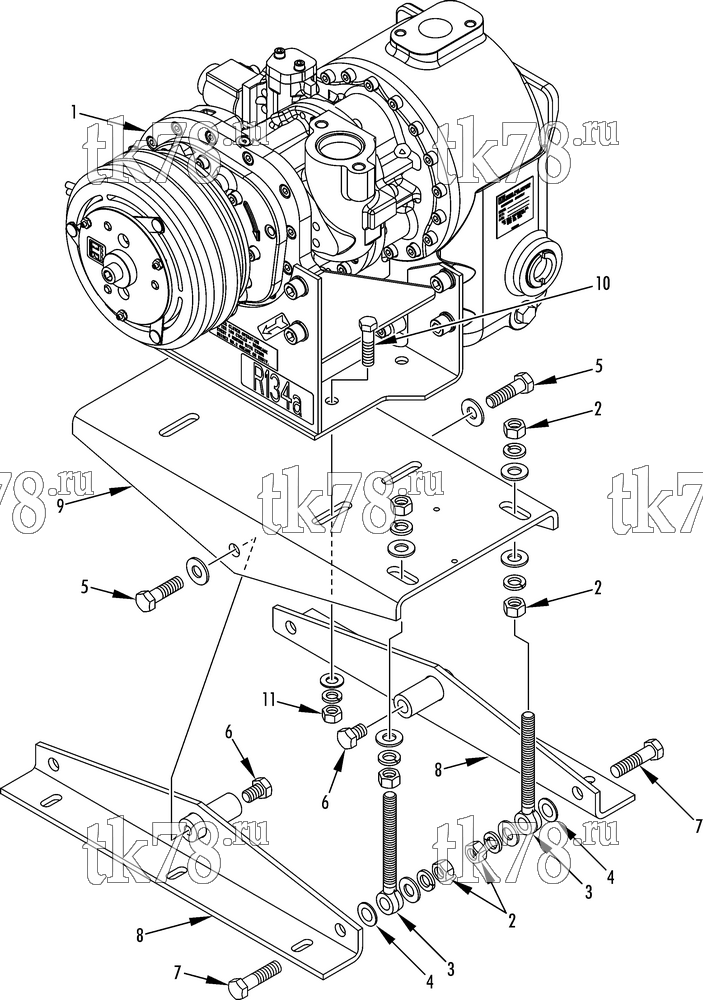

Установкa Thermo King схема COMPRESSOR MOUNTING GROUP – 238H3
Обновление от: 11/12/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-970 | COMPRESSOR - QS391 (see 238G0) | 1 | |
| 2 | 55-2559 | NUT - eyebolt (alternator bracket) | 6 | |
| 3 | 92-6932 | BOLT - eye | 2 | |
| 4 | 51-1129 | SPACER | 2 | |
| 5 | 55-1670 | SCREW - eyebolt & base | 2 | |
| 55-7123 | WASHER - belleville | 2 | ||
| 6 | 55-1558 | SCREW - backup | 2 | |
| 7 | 55-2747 | SCREW - base & eyebolt | 2 | |
| 55-2173 | FLATWASHER | 6 | ||
| 55-2159 | LOCKWASHER | 6 | ||
| 8 | 91-1030 | BASE | 2 | |
| 9 | 98-7168 | PLATE - compressor | 1 | |
| 10 | 55-2961 | SCREW - compressor | 4 | |
| 11 | 55-2640 | NUT - compressor | 4 | |
| 55-2363 | LOCKWASHER | 4 | ||
| 55-2641 | FLATWASHER | 4 |
