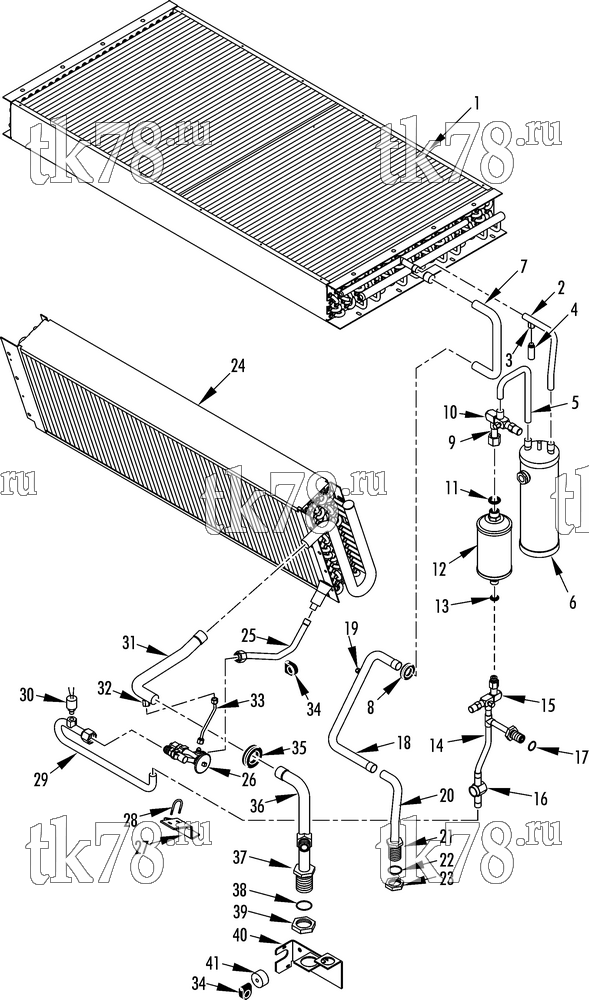

Установкa Thermo King схема REFRIGERATION COMPONENTS – 238G3
Обновление от: 5/7/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1588 | COIL - condenser | 1 | |
| 55-1587 | SCREW - coil | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-8711 | INSERT - threaded | 8 | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 2 | 66-7634 | TUBE - inlet | 1 | |
| 3 | 99-3060 | FITTING - saddle | 1 | |
| 4 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 5 | 61-2002 | TUBE - outlet | 1 | |
| 6 | 67-1191 | TANK - receiver (see 220F5) | 1 | |
| 7 | 66-8980 | TUBE - discharge to coil | 1 | |
| 8 | 33-507 | GROMMET | 2 | |
| 33-3956 | GROMMET (1-1/8 id) | 2 | ||
| 9 | 61-4877 | TUBE ASSEMBLY - shutoff (top) | 1 | |
| 10 | 306-661 | VALVE - shutoff | 2 | |
| 55-1983 | CAP - shutoff valve | 1 | ||
| 55-6396 | NUT - shoulder | 1 | ||
| 55-6356 | SHOULDER | 1 | ||
| 55-2963 | SCREW - valve | 1 | ||
| 55-2959 | LOCKWASHER | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 11 | 33-566 | O-RING (1/2) | 1 | |
| 12 | 61-600 | DEHYDRATOR (includes o-rings) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 13 | 33-2115 | O-RING (5/8) | 1 | |
| 14 | 61-4859 | TUBE ASSEMBLY - shutoff (bottom) | 1 | |
| 15 | 306-661 | VALVE - shutoff | 2 | |
| 55-1983 | CAP - shutoff valve | 1 | ||
| 16 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 55-6837 | SHOULDER | 1 | ||
| 55-6838 | NUT - shoulder | 1 | ||
| 55-2963 | SCREW - valve | 1 | ||
| 55-2959 | LOCKWASHER | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 17 | 33-239 | O-RING (5/8 id) | 1 | |
| 33-239 OEM | О-ринг крышки масляного насоса компрессора X214/426/430 | 60 ₽ |
|
|
| 18 | 61-3017 | TUBE - discharge | 1 | |
| 19 | 61-4343 | FITTING - flare | 1 | |
| 55-1983 | CAP | 1 | ||
| 20 | 61-3018 | TUBE - discharge | 1 | |
| 21 | 55-7380 | ADAPTER - bulkhead (#16, 1-5/16, JIC) | 1 | |
| 22 | 33-1174 | O-RING (3/4 id) | 1 | |
| 23 | 55-7111 | NUT (#16) | 1 | |
| 55-5741 | LOCKWASHER | 1 | ||
| 24 | 67-1768 | COIL - evaporator (see 176H0) | 1 | |
| 67-2132 | COIL - evaporator, vinyl dipped (see 176H0) | 1 | ||
| 25 | 66-7321 | TUBE - expansion valve to distributor | 1 | |
| 26 | 66-5952 | VALVE - expansion (R407C) | 1 | |
| 66-4213 | ELEMENT - valve (R407C) | 1 | ||
| 66-6847 | VALVE - expansion (R134a) | 1 | ||
| 66-4212 | ELEMENT - valve (R134a) | 1 | ||
| 61-438 | SCREEN - inlet | 1 | ||
| 92-2016 | INSULATION - thermo bulb | A/R | ||
| 27 | 91-5560 | BRACKET - expansion valve | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 28 | 55-5211 | U-BOLT - expansion valve | 1 | |
| 91-3084 | SPACER - expansion valve | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 29 | 61-2003 | TUBE - valve inlet | 1 | |
| 61-4139 | FITTING - saddle | 1 | ||
| 33-287 | GROMMET (5/8 id) | 1 | ||
| 30 | 44-6349 | SWITCH - condenser fan (for connectors see 115D14) | 1 | |
| 44-6427 | SWITCH - only | 1 | ||
| 44-6965 | SWITCH - condenser fan (R134a, for connector see 115D14) | 1 | ||
| 41-307 | SWITCH - only (R134a) | 1 | ||
| 31 | 61-1674 | TUBE - suction | 1 | |
| 32 | 61-4343 | FITTING - equalizer tube | 1 | |
| 33 | 61-1020 | TUBE - equalizer | 1 | |
| 34 | 91-758 | CLAMP - tube | 2 | |
| 55-3344 | SCREW - clamp (1/4-20 x 3.0 in) | 1 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-3675 | SCREW - clamp (1/4-20 x 1.75 in) | 1 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8979 | INSERT | 1 | ||
| 35 | 33-2023 | GROMMET | 1 | |
| 36 | 61-3230 | TUBE - adapter | 1 | |
| 61-2667 | ADAPTER - saddle | 1 | ||
| 37 | 55-7832 | ADAPTER (#20) | 1 | |
| 38 | 33-1777 | O-RING (1-3/16 id) | 1 | |
| 39 | 55-5739 | NUT (#20) | 1 | |
| 55-5742 | LOCKWASHER | 1 | ||
| 33-2789 | WASHER - sealing | 2 | ||
| 40 | 92-4552 | BRACKET - suction/discharge tube | 1 | |
| 55-2979 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 41 | 92-2343 | SPACER - tube | 1 |
