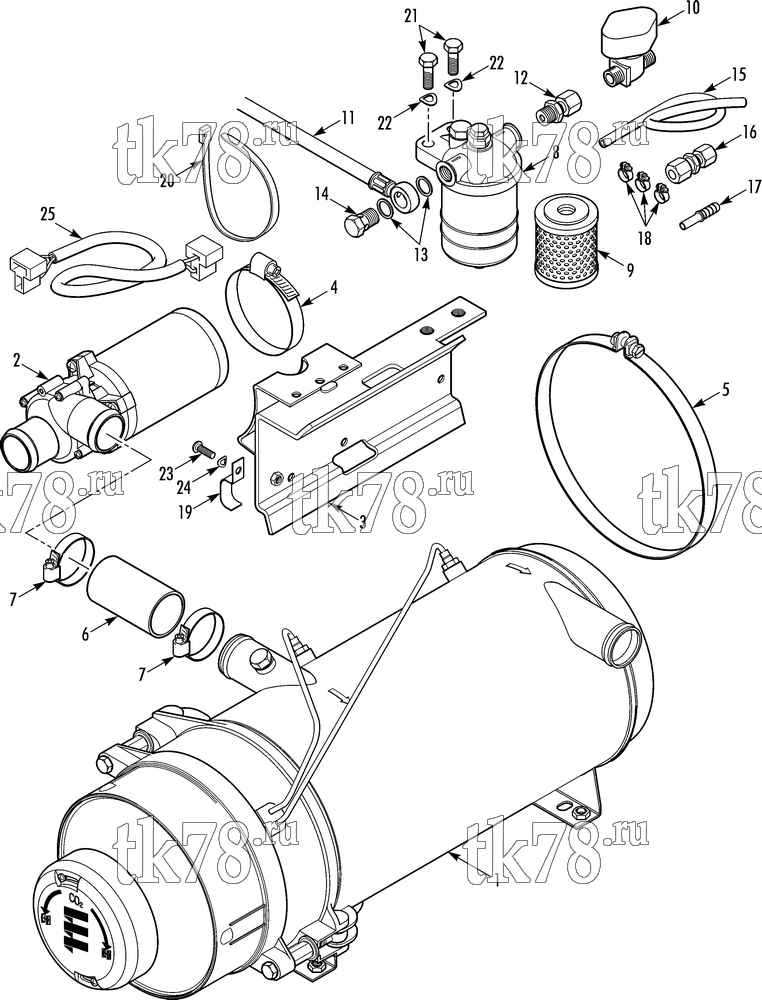

Установкa Thermo King схема HEATER INSTALLATION COMPONENTS – 238F7
Обновление от: 8/12/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9077 | HEATER - basic | 1 | |
| 2 | 41-9078 | PUMP | 1 | |
| 3 | 92-7950 | BRACKET - pump | 1 | |
| 4 | 51-1934 | CLAMP - hose | 1 | |
| 5 | 51-1935 | CLAMP | 1 | |
| 6 | 13-1040 | HOSE | 1 | |
| 7 | 51-1936 | CLAMP - hose | 2 | |
| 8 | 13-1041 | HOUSING - filter | 1 | |
| 9 | 13-1042 | FILTER - fuel | 1 | |
| 10 | 13-1043 | VALVE - quick-action | 1 | |
| 11 | 13-1044 | HOSE - fuel | 1 | |
| 12 | 13-1045 | UNION | 1 | |
| 13 | 33-4524 | WASHER - sealing | 2 | |
| 14 | 13-1046 | SCREW - banjo | 1 | |
| 15 | 13-487 | HOSE | 1 | |
| 16 | 13-1047 | REDUCER | 1 | |
| 17 | 13-1048 | NIPPLE - hose | 1 | |
| 18 | 51-1937 | CLAMP - hose | 3 | |
| 19 | 92-7951 | BRACKET - mounting | 1 | |
| 20 | 51-1938 | BANDCLAMP | 1 | |
| 21 | 51-1939 | SCREW | 2 | |
| 22 | 51-1940 | WASHER - spring | 2 | |
| 23 | 51-1941 | SCREW | 1 | |
| 24 | 51-1942 | WASHER - spring | 1 | |
| 25 | 41-9079 | HARNESS - cable | 1 |
