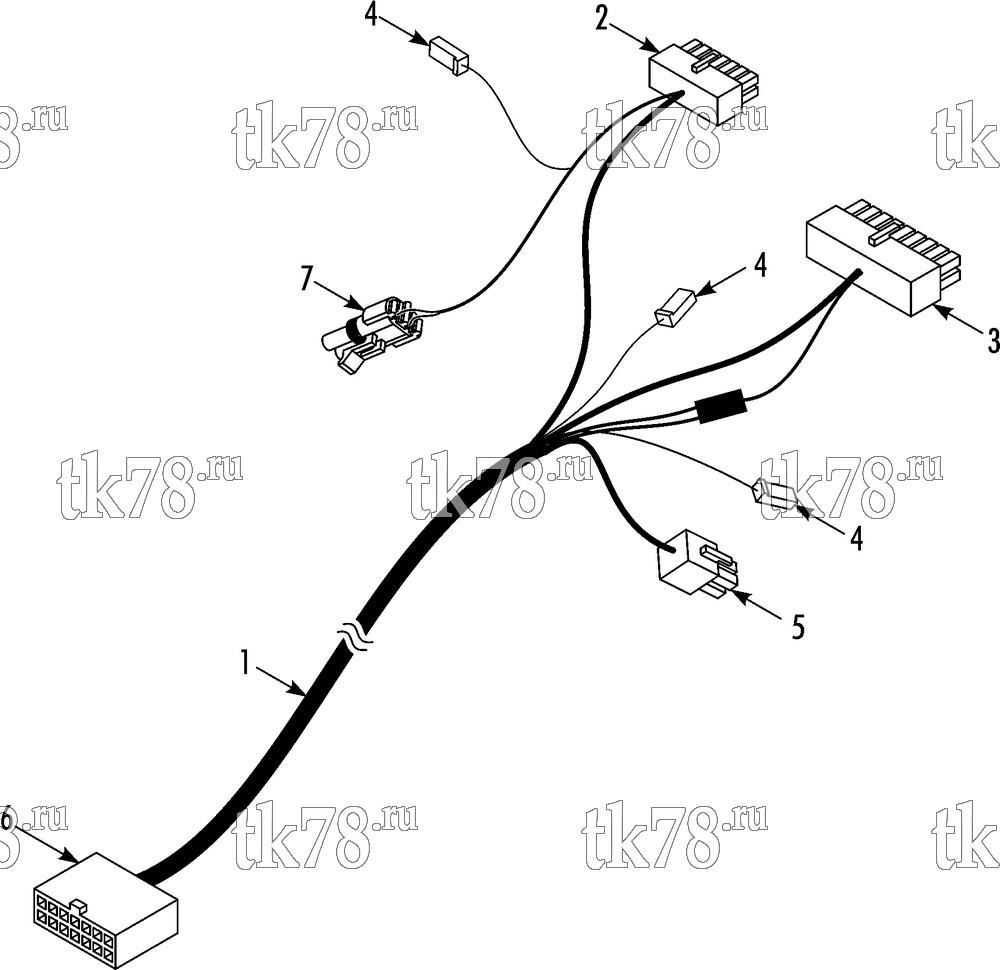

Установкa Thermo King схема HARNESS DRIVER TO EVAPORATOR – 238F3
Обновление от: 8/11/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9047 | HARNESS - driver to evaporator | 1 | |
| 2 | 41-661 | CONNECTOR - in line (male, 14-pin) | 1 | |
| 41-1807 | TERMINAL - socket (18-24 ga) | 14 | ||
| 3 | 41-650 | CONNECTOR - in line (male, 18-pin) | 1 | |
| 41-1807 | TERMINAL - socket (18-24 ga) | 18 | ||
| 4 | 44-6381 | CONNECTOR - female (1-pin) | 3 | |
| 44-5066 | TERMINAL - fingrip (14-18 ga) | 1 | ||
| 5 | 41-654 | CONNECTOR - in line (male, 4-pin) | 1 | |
| 41-1807 | TERMINAL - socket (18-24 ga) | 4 | ||
| 6 | 41-6160 | CONNECTOR - in line (female, 14-pin) | 1 | |
| 651-148 | TERMINAL - pin (18-24 ga) | 14 | ||
| 7 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 2 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 2 | ||
| 55-2332 | BANDWRAP | A/R | ||
| 41-7681 | HEATSHRINK (1-1/2 in) | A/R |
