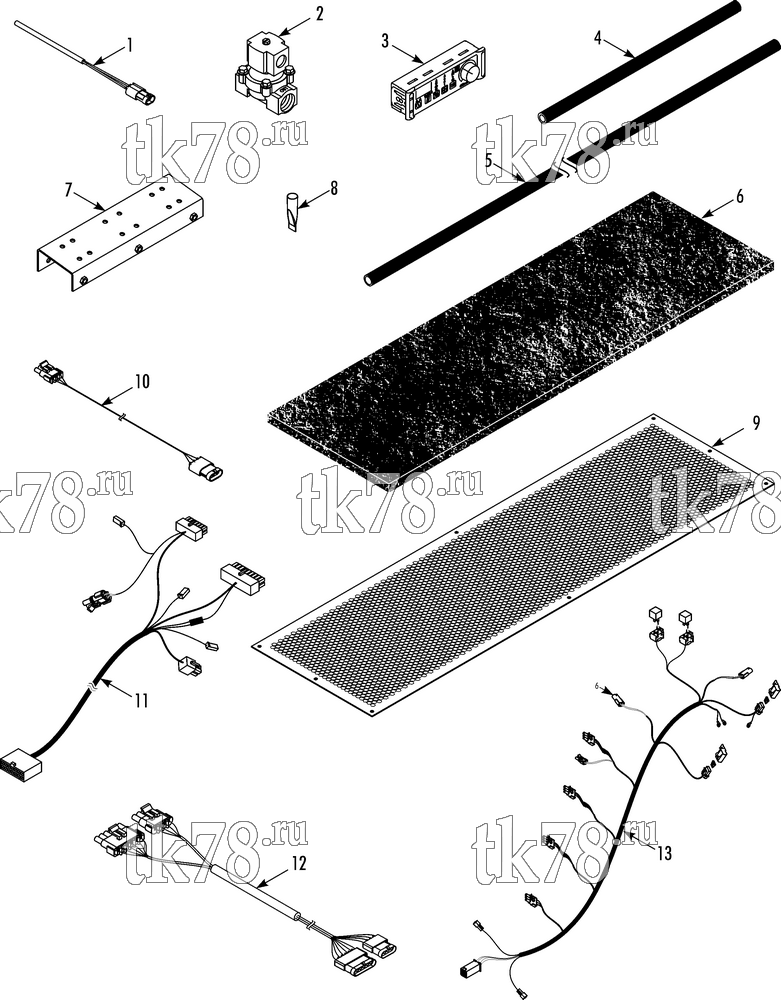

Установкa Thermo King схема INSTALLATION COMPONENTS (KIT 701998) – 238F2
Обновление от: 8/11/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-4157 | SENSOR - temperature | 2 | |
| 2 | 41-5610 | VALVE - solenoid (water, see 147A1) | 1 | |
| 41-7599 | VALVE - solenoid (water) | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 3 | 41-4658 | ClimaAIRE II | 1 | |
| 4 | 67-1711 | HOSE - refrigeration, #12 (cut to 72.5 in) | A/R | |
| 5 | 98-6722 | HOSE (0.75 in x 1.00 in od, cut to 180 in) | A/R | |
| 6 | 92-6291 | FILTER - air | 1 | |
| 7 | 98-7688 | CHANNEL - support, upper | 1 | |
| 8 | 66-1273 | VALVE - check | 2 | |
| 9 | 98-7687 | GRILLE | 1 | |
| 10 | 41-9051 | HARNESS - compressor to evap (for connectors see 115D14) | 1 | |
| 44-6959 | CONNECTOR - tower (3-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 3 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 3 | ||
| 44-9569 | CONNECTOR - shroud (3-pin) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 3 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 3 | ||
| 11 | 41-9047 | HARNESS - driver to evaporator (see 238F3) | 1 | |
| 12 | 45-2187 | HARNESS - condenser to evap (for connectors see 115D14) | 1 | |
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 4 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 44-7872 | CONNECTOR - tower (6-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 6 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 6 | ||
| 44-7880 | CONNECTOR - shroud (4-pin) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 4 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 4 | ||
| 44-8294 | CONNECTOR - shroud (6-pin) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 6 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 6 | ||
| 13 | 41-9048 | HARNESS - heater (see 238F4) | 1 |
