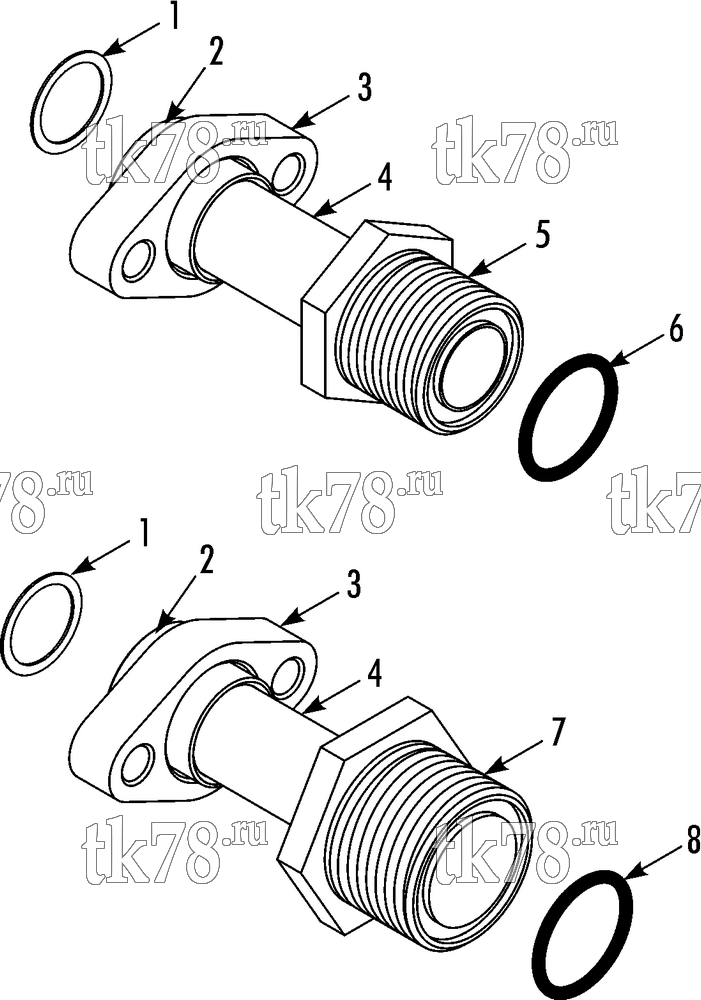

Установкa Thermo King схема TUBE ASSMEBLY KIT (800386) – 238E0
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-3191 | GASKET - flat | 2 | |
| 2 | 55-9184 | ADAPTER (1-1/8 in) | 1 | |
| 3 | 55-9371 | FLANGE | 1 | |
| 4 | 66-8894 | TUBE | 1 | |
| 5 | 55-7537 | ADAPTER - bulkhead (#20) | 1 | |
| 6 | 33-1777 | O-RING (1-3/16 id) | 1 | |
| 7 | 55-7553 | ADAPTER - bulkhead (#24) | 1 | |
| 8 | 33-920 | O-RING (1-1/2 id) | 1 |
