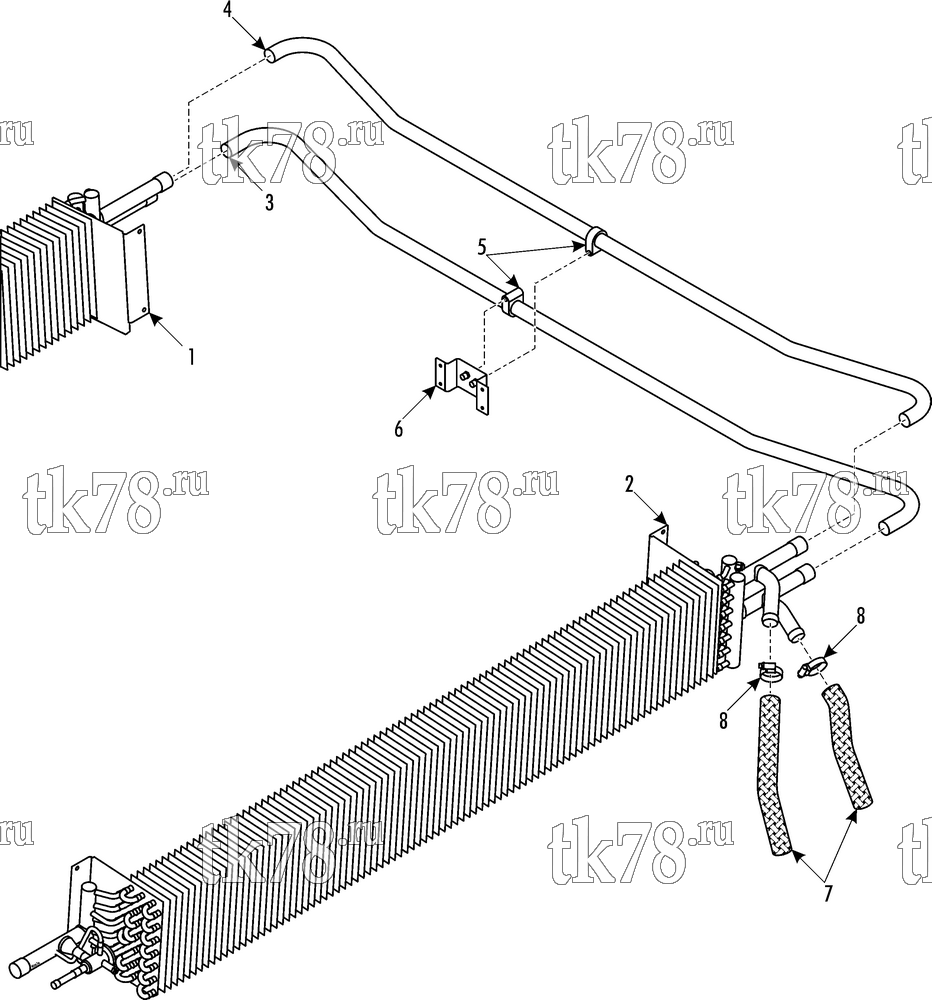

Установкa Thermo King схема TUBE - HEATING – 237G5
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2296 | COIL - evaporator/heater | 1 | |
| 2 | 67-2434 | COIL - evaporator/heater | 1 | |
| 3 | 61-3319 | TUBE | 1 | |
| 4 | 61-3320 | TUBE | 1 | |
| 5 | 55-7013 | CLAMP - tube | 2 | |
| 55-7027 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 6 | 61-2778 | HOLDER - tube | 1 | |
| 55-5130 | RIVET - holder | 4 | ||
| 7 | 92-5032 | HOSE | A/R | |
| 8 | 51-1229 | CLAMP - hose | 2 |
