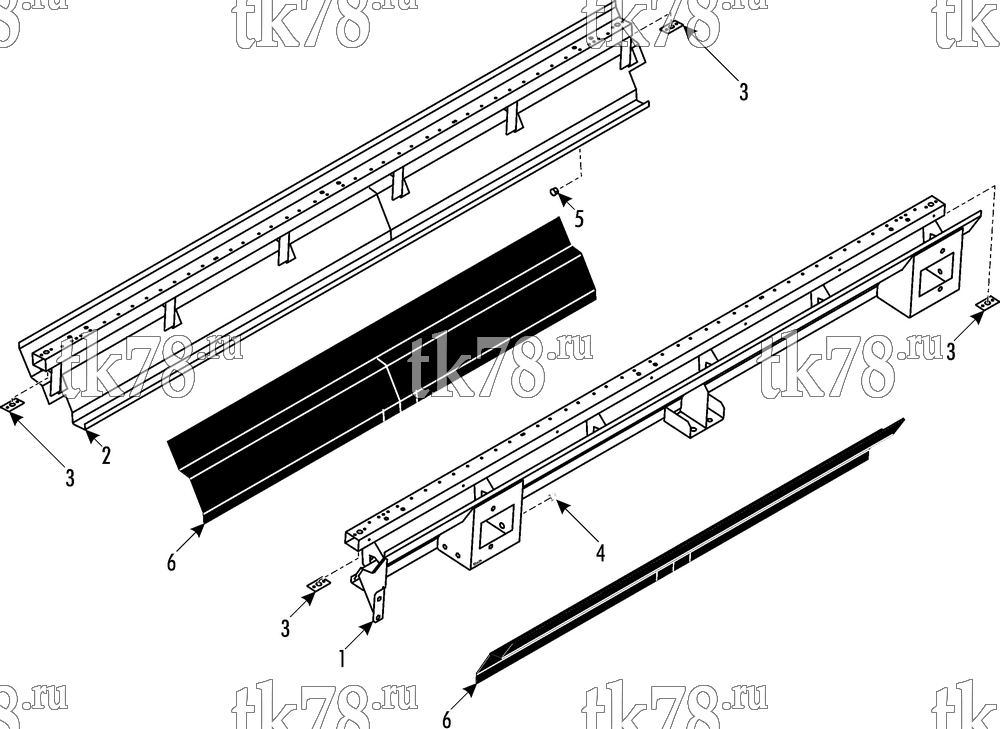

Установкa Thermo King схема AIR INTAKE w/o FA DAMPER (007369) – 237G3
Обновление от: 5/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8137 | BASE - weldment | 1 | |
| 2 | 92-8138 | BASE - weldment | 1 | |
| 55-7373 | NUT - captive (M6, air intake to evaporator base) | 10 | ||
| 55-9814 | NUT - captive, closed (M6, unit brackets) | 8 | ||
| 55-8375 | NUT - captive (M5, cover hinge) | 12 | ||
| 55-8403 | NUT - captive (M8, HVAC unit to bus roof) | 6 | ||
| 3 | 92-4030 | BRACKET - lifting eye | 4 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 4 | 33-314 | GROMMET (0.312 id) | 1 | |
| 5 | 55-9574 | PLUG (white) | 1 | |
| 6 | 92-5053 | INSULATION | 2 |
