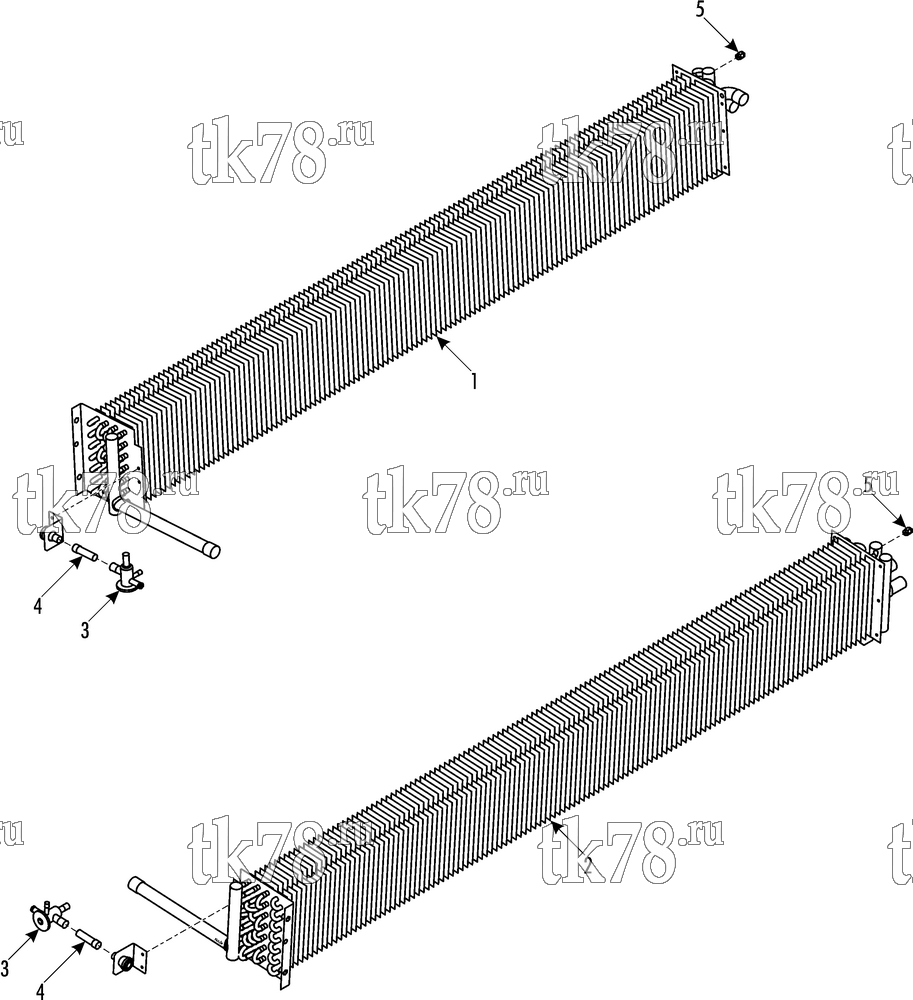

Установкa Thermo King схема EVAPORATOR COIL/HEATER – 237B2
Обновление от: 3/11/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2635 | COIL - evaporator/heater | 1 | |
| 2 | 67-2636 | COIL - evaporator/heater | 1 | |
| 55-7172 | SCREW - coil | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 55-5130 | RIVET - coil | A/R | ||
| 3 | 66-9900 | VALVE - expansion | 2 | |
| 4 | 61-4821 | TUBE | 2 | |
| 5 | 61-1099 | VALVE - deaerate | 2 |
