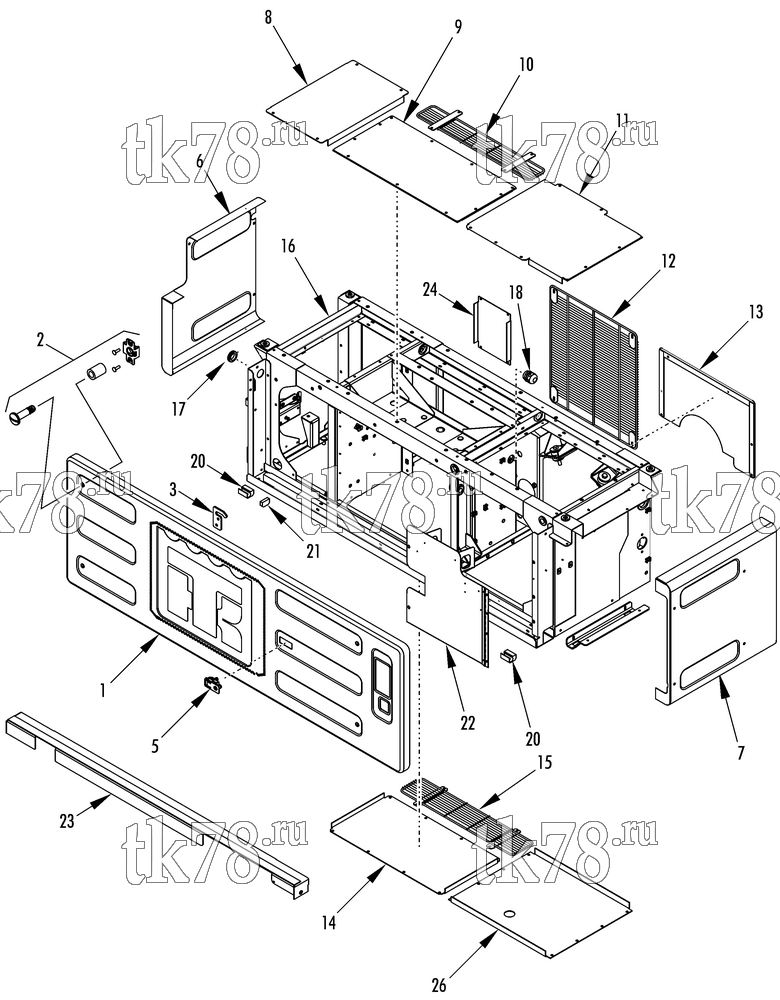

Установкa Thermo King схема SKIN GROUP (1/09 & after) – 236F8
Обновление от: 10/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8250 | DOOR - side | 1 | |
| 2 | 51-2151 | STUD - door | 4 | |
| 51-1948 | TUBE - stud | 4 | ||
| 51-1707 | RETAINER - stud | 4 | ||
| 51-1949 | RECEPTACLE - 1/4 turn | 4 | ||
| 55-3010 | RIVET - receptacle | 8 | ||
| 3 | 92-7658 | GUIDE - door | 2 | |
| 55-6994 | SCREW - guide | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7042 | NUT | 4 | ||
| 4 | 92-6712 | LATCH - compression/turn | 2 | |
| 55-7035 | SCREW - latch | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 5 | 92-2991 | LATCH - compression/turn (tool secure) | 1 | |
|
10-92-2991 | Замок двери, New MD & TS | 12 190 ₽ |
|
| 6 | 98-7752 | PANEL - compressor end | 1 | |
| 7 | 98-7751 | PANEL - engine end | 1 | |
| 55-9761 | SCREW - panel | 8 | ||
| 55-5970 | WASHER - sealing | 8 | ||
| 8 | 92-6148 | COVER - compressor | 1 | |
| 9 | 92-6150 | PANEL - motor | 1 | |
| 10 | 98-7748 | SCREEN - condenser | 1 | |
| 11 | 92-6154 | PANEL - engine (top) | 1 | |
| 12 | 98-7749 | SCREEN - rear | 1 | |
| 13 | 92-6155 | PANEL - engine (rear) | 1 | |
| 14 | 92-6152 | PANEL - condenser (bottom) | 1 | |
| 15 | 92-6153 | SCREEN - condenser (bottom) | 1 | |
| 16 | 98-7744 | FRAME - condenser | 1 | |
| 55-9084 | INSERT - threaded (#10-32) | 62 | ||
| 17 | 33-489 | GROMMET (1.25 id) | 4 | |
| 33-1371 | GROMMET (1.7 id) | 2 | ||
| 33-429 | GROMMET (0.88 id) | 1 | ||
| 18 | 55-5885 | CONNECTOR - harness grip | 2 | |
| 19 | 92-6135 | BRACKET - control box (lower) | 1 | |
| 55-6993 | SCREW - bracket | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 20 | 92-3003 | RETAINER - hinge | 2 | |
| 21 | 92-3187 | STOP - hinge | 1 | |
| 55-5646 | SCREW - retainer | 5 | ||
| 22 | 98-7974 | DOOR - engine | 1 | |
| 55-9461 | SCREW - door | 2 | ||
| 55-7112 | WASHER | 2 | ||
| 23 | 92-7137 | PANEL - top, front | 1 | |
| 55-6993 | SCREW - panel | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 24 | 92-7138 | PANEL - compressor | 1 | |
| 55-7036 | SCREW - panel | 4 | ||
| 55-1173 | LOCKWASHER | 4 | ||
| 55-7072 | FLATWASHER | 4 | ||
| 25 | 33-4291 | GROMMET (2.5 ID) | 1 | |
| 26 | 92-6151 | PANEL - engine (bottom) | 1 | |
| 55-9761 | SCREW - panel | 3 |
