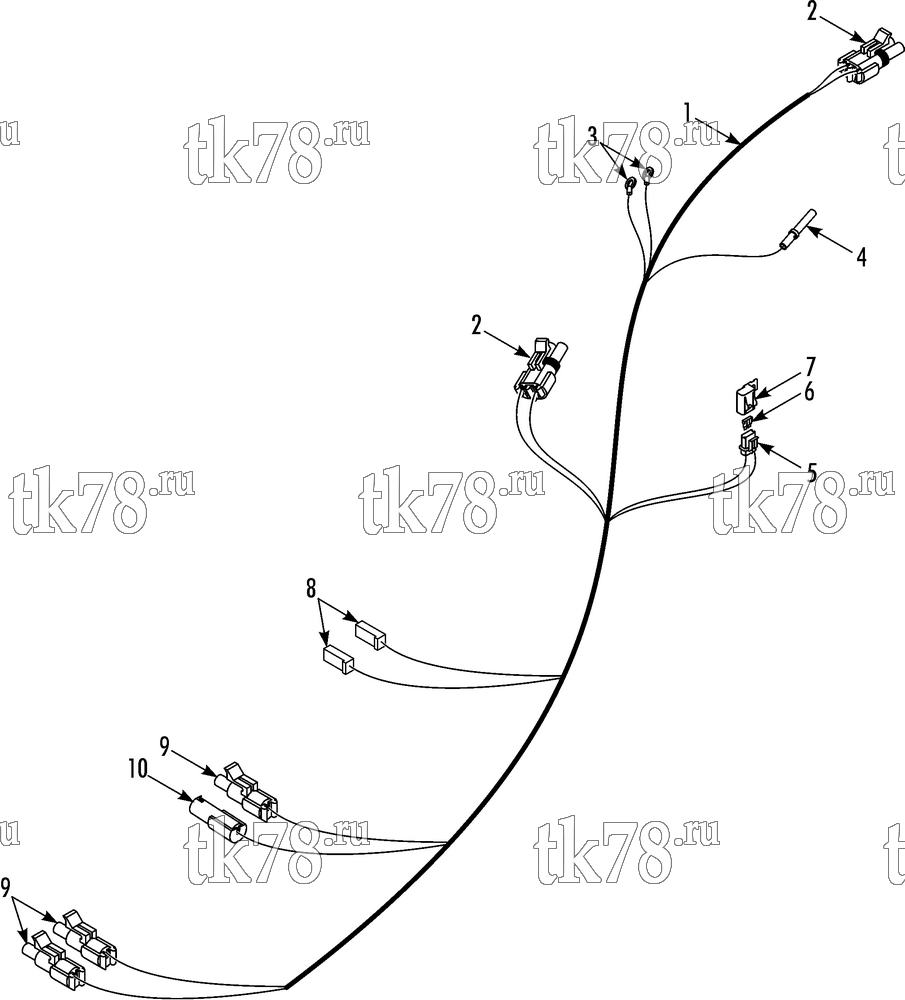

Установкa Thermo King схема HARNESS CONTROL (B100) – 236E2
Обновление от: 5/18/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8863 | HARNESS - control (B-100) | 1 | |
| 2 | 44-5838 | CONNECTOR - tower (2-pin, see 115D14) | 2 | |
| 3 | 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 2 | |
| 4 | 44-8330 | SOCKET (18 ga) | 1 | |
| 5 | 41-1770 | HOLDER - fuse | 1 | |
| 30-41-1770 | Гнездо предохранителя 32V 30А | 760 ₽ |
|
|
| 203-524 | GEL - anti corrosion | 2 | ||
| 6 | 44-9758 | FUSE (10 amp) | 1 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 7 | 41-1769 | COVER - fuse | 1 | |
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
|
| 8 | 44-6381 | CONNECTOR - shroud (1-pin) | 2 | |
| 44-5066 | TERMINAL - fingrip (14-18 ga) | 2 | ||
| 9 | 44-7327 | CONNECTOR - tower (1-pin) | 3 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 3 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 3 | ||
| 10 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 1 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 |
