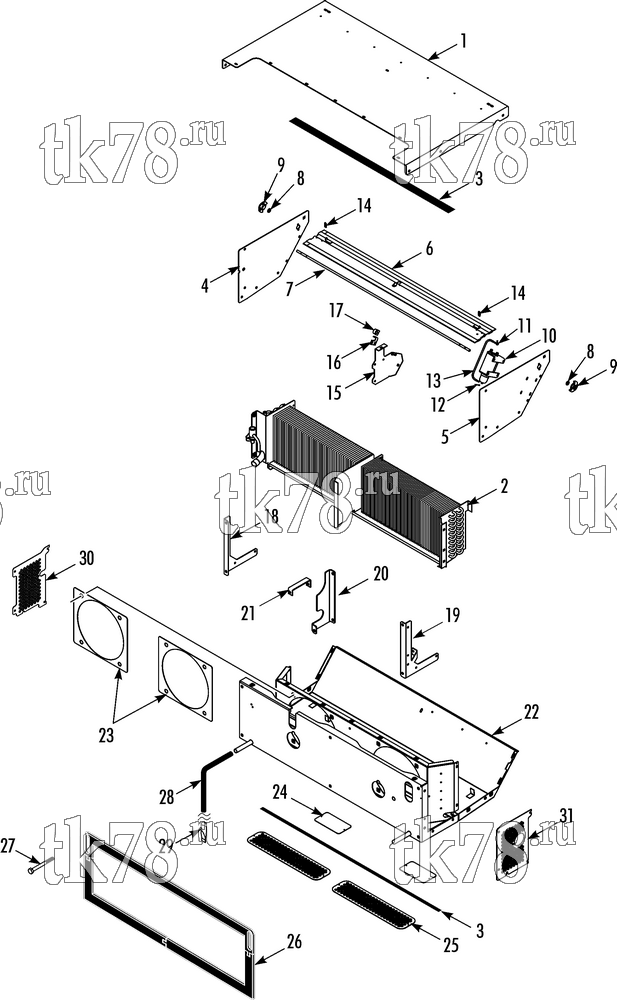

Установкa Thermo King схема EVAPORATOR COMPARTMENT – 235A3
Обновление от: 6/3/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8208 | HOUSING - evaporator | 1 | |
| 55-9761 | SCREW - housing (M6 X 25) | 3 | ||
| 51-718 | SCREW - housing (M6 X 16) | 8 | ||
| 55-6997 | NUT - captive | 8 | ||
| 2 | 67-2422 | COIL - evaporator (see 235H3) | 1 | |
| 51-718 | SCREW - coil | 4 | ||
| 3 | 203-534 | SEALER - tape | A/R | |
| 4 | 92-7539 | COVER - curb side | 1 | |
| 5 | 92-7540 | COVER - road side | 1 | |
| 51-718 | SCREW - cover (M6 X 16) | 20 | ||
| 6 | 91-1843 | BLADE - damper (metal, plastic blade see 242G5) | 1 | |
| 7 | 92-9436 | ROD - blade | 1 | |
| 55-9002 | SCREW - rod to blade | 3 | ||
| 55-7089 | FLATWASHER | 6 | ||
| 55-7034 | NUT | 3 | ||
| 8 | 55-6534 | WASHER - damper blade | 2 | |
| 9 | 91-3905 | BEARING - damper | 2 | |
|
10-91-3905 | Демпфер | 2 080 ₽ |
|
| 55-7407 | SCREW - bearing | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7034 | NUT | 4 | ||
| 10 | 44-2823 | SOLENOID - damper | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 51-718 | SCREW - solenoid | 4 | ||
| 92-7541 | NUTSTRIP - solenoid | 2 | ||
| 11 | 55-2112 | SCREW - solenoid rod | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 12 | 55-2550 | PIN - cotter | 2 | |
| 55-2001 | FLATWASHER | 2 | ||
| 13 | 99-9953 | ROD - damper solenoid | 1 | |
| 14 | 91-861 | SPRING - damper blade | 2 | |
| 15 | 91-7812 | BRACKET - housing support | 1 | |
| 16 | 92-8016 | ANGLE - damper blade clamp | 1 | |
| 55-7172 | SCREW - angle | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7042 | NUT | 2 | ||
| 17 | 55-9976 | CLAMP - damper blade | 1 | |
| 55-8316 | SCREW - clamp | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 1 | ||
| 18 | 92-7537 | BRACKET - drain pan (roadside) | 1 | |
| 19 | 92-7536 | BRACKET - drain pan (curbside) | 1 | |
| 51-718 | SCREW - bracket (4 each bracket) | 8 | ||
| 20 | 92-7538 | BRACKET - evaporator (vertical) | 1 | |
| 21 | 92-8001 | BRACKET - evaporator (horizontal) | 1 | |
| 55-7372 | SCREW - bracket | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 22 | 98-8207 | BASE - evaporator drain pan | 1 | |
| 23 | 98-8209 | ORIFICE - evaporator fan | 2 | |
| 55-6994 | SCREW - orifice | 8 | ||
| 55-3045 | WASHER - dome | 8 | ||
| 55-6997 | NUT - captive | 8 | ||
| 24 | 92-7543 | COVER - evaporator (bottom) | 2 | |
| 25 | 92-7650 | SCREEN - evaporator | 2 | |
| 55-5635 | SCREW - cover & screen | 4 | ||
| 26 | 30-290 | KIT - sill gasket | 1 | |
| 27 | 55-7375 | SCREW - evaporator to frame (100 mm lg) | 1 | |
| 51-111 | SCREW - evaporator to frame (140 mm lg) | 5 | ||
| 55-8536 | FLATWASHER | 6 | ||
| 55-7348 | NUT | 6 | ||
| 28 | 91-2434 | HOSE - evaporator drain | 2 | |
| 29 | 66-1273 | VALVE - check | 2 | |
| 30 | 92-7553 | SCREEN - curbside | 1 | |
| 31 | 92-7554 | SCREEN - roadside | 1 |
