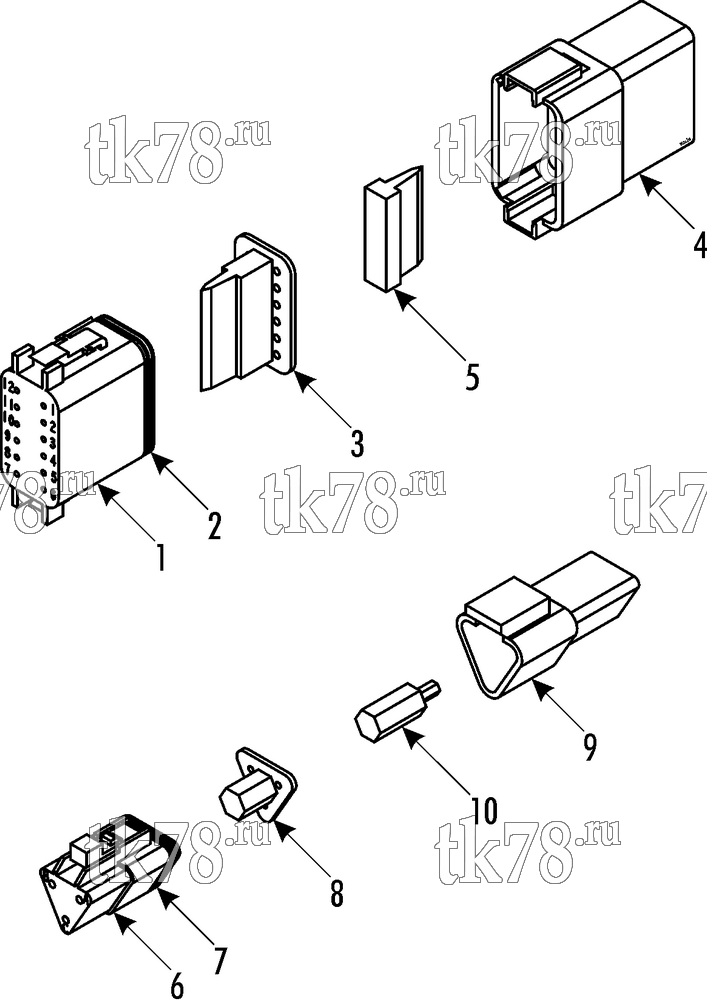

Установкa Thermo King схема CONNECTORS KIT – 234B1
Обновление от: 2/10/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9600 | PLUG (12-pin, w/ seal) | 1 | |
| 2 | 33-2397 | SEAL | 1 | |
| 3 | 44-9601 | WEDGE | 1 | |
| 4 | 44-9904 | RECEPTACLE (12-pin) | 1 | |
| 5 | 44-9905 | WEDGE | 1 | |
| 6 | 44-9631 | CONNECTOR (3-pin, w/ seal) | 1 | |
| 7 | 33-2393 | SEAL | 1 | |
| 8 | 44-9536 | WEDGE | 1 | |
| 9 | 44-9544 | RECEPTACLE (3-pin) | 1 | |
| 10 | 44-9545 | WEDGE | 1 |
