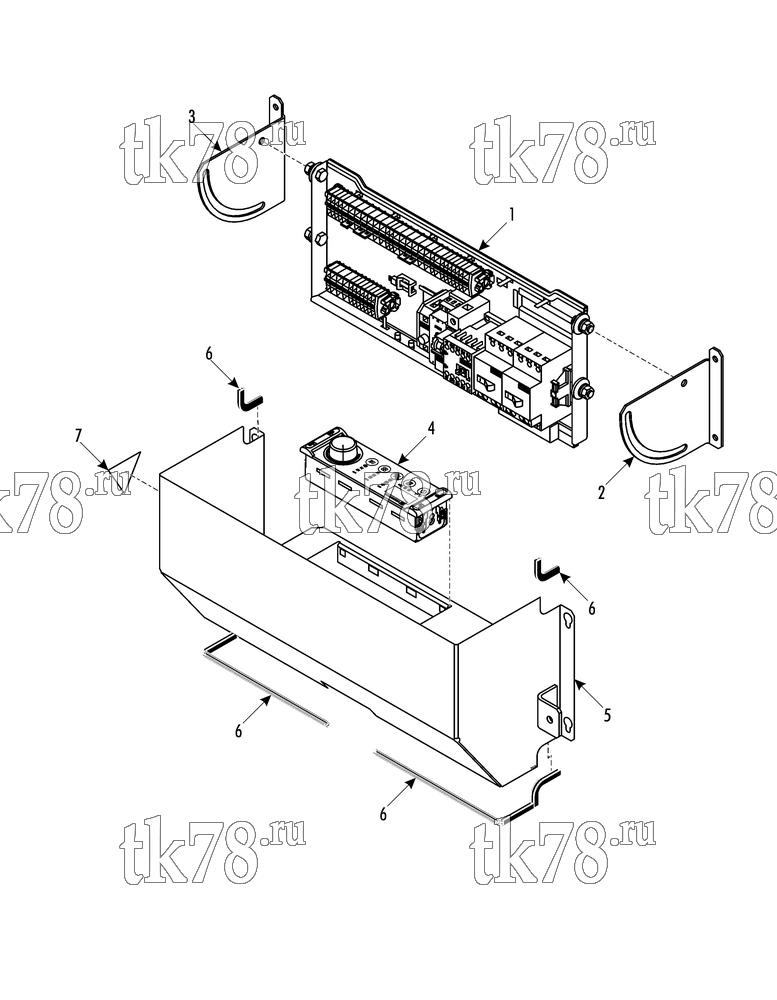

Установкa Thermo King схема ELECTRO BOX – 234A1
Обновление от: 5/22/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | SUBPANEL (see 234A2) | 1 | |
| 55-6994 | SCREW - subpanel | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 2 | 92-7394 | HOLDER - subpanel | 1 | |
| 3 | 92-7395 | HOLDER - subpanel | 1 | |
| 55-6994 | SCREW - subpanel | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 4 | 41-4658 | ClimaAIRE II (for breakdown see 184F9) | 1 | |
| 5 | 92-7396 | COVER - electro box | 1 | |
| 6 | 92-3279 | RUBBER - profile | A/R | |
| 7 | 99-7834 | NAMEPLATE - Caution High Voltage | 1 |
