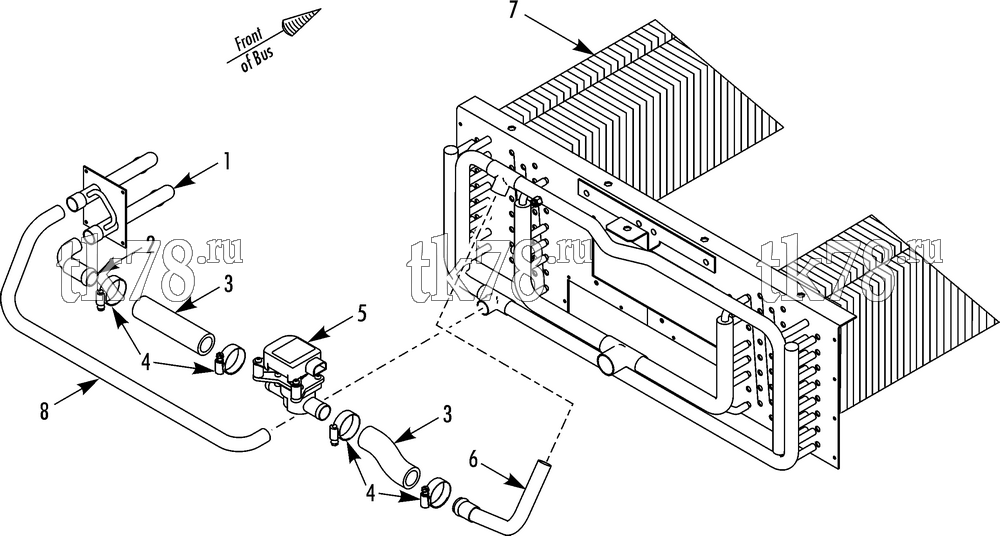

Установкa Thermo King схема HEATING COMPONENTS (1004) – 233E7
Обновление от: 6/8/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-4567 | TUBE - bulkhead connection | 1 | |
| 55-5130 | RIVET | A/R | ||
| 2 | 61-4569 | TUBE - connection to valve | 1 | |
| 3 | 92-5032 | HOSE | A/R | |
| 4 | 55-3401 | CLAMP - hose | 4 | |
| 5 | 41-9943 | VALVE - water | 1 | |
| 6 | 61-4568 | TUBE - valve to coil | 1 | |
| 7 | 67-1678 | COIL - evaporator (1004) | 1 | |
| 8 | 61-4570 | TUBE - coil to fitting | 1 |
