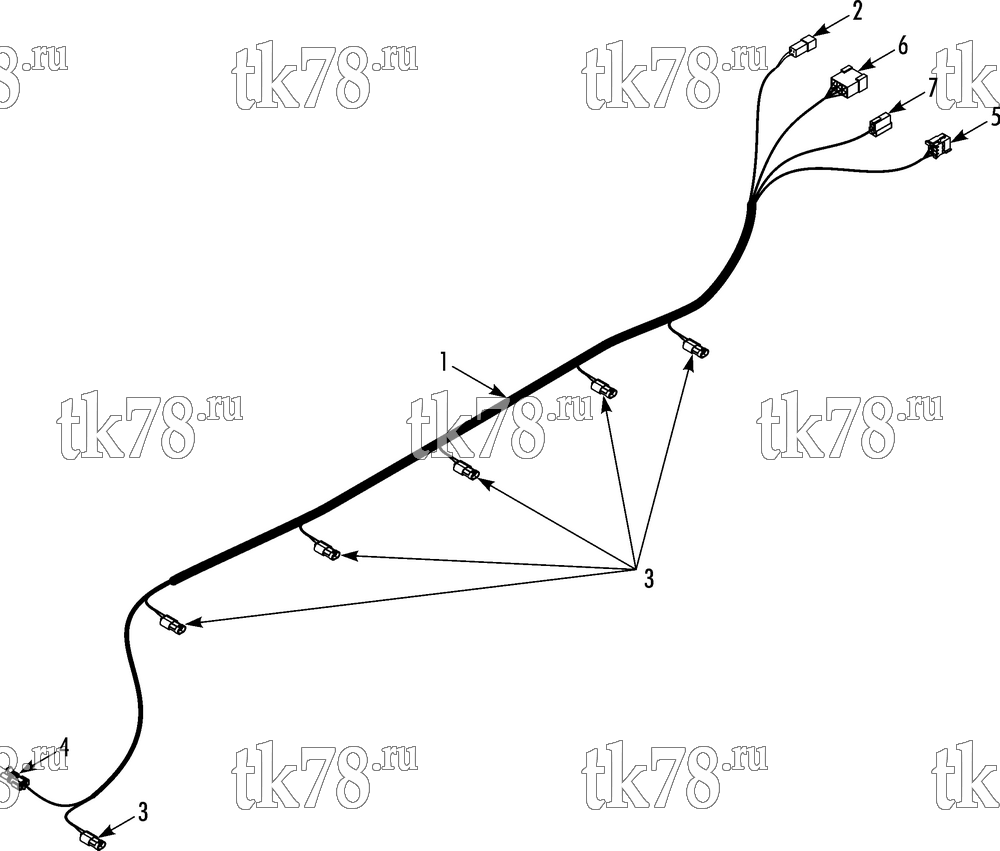

Установкa Thermo King схема HARNESS CONDENSER (78-1344 fans) – 233B1
Обновление от: 2/17/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 2 | 41-3966 | CONNECTOR | 1 | |
| 1 | 41-8527 | HARNESS - condenser | 1 | |
| 3 | 44-5835 | CONNECTOR | 6 | |
| 4 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 5 | 41-2767 | CONNECTOR | 1 | |
| 6 | 41-3967 | HOUSING | 1 | |
| 7 | 44-5836 | TERMINAL - male (14-16 ga) | 2 | |
| 41-4886 | HOUSING | 1 |
