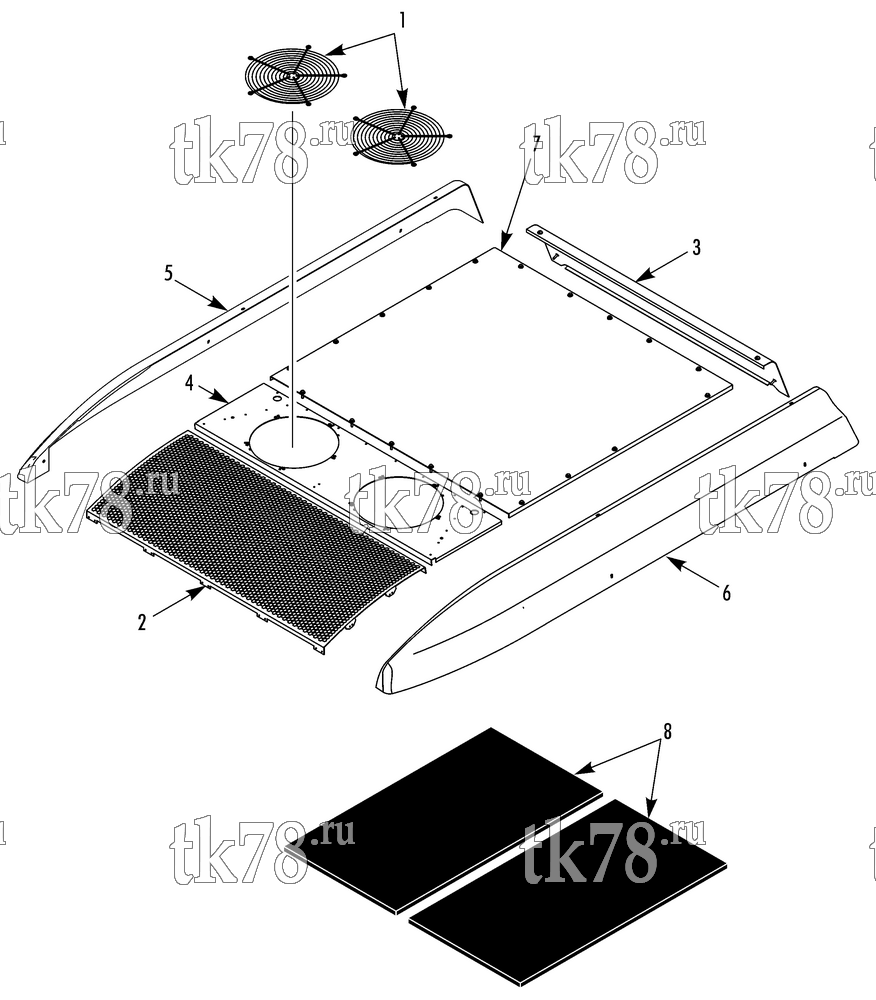

Установкa Thermo King схема COVER COMPONENTS – 233B0
Обновление от: 1/6/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7561 | GUARD - fan | 2 | |
| 2 | 98-6108 | GRILLE - condenser | 1 | |
| 3 | 98-8154 | COVER - rear | 1 | |
| 55-8837 | SCREW - cover | 4 | ||
| 55-5970 | WASHER - sealing | 4 | ||
| 4 | 98-8155 | COVER - condenser | 1 | |
| 55-9443 | NUT - captive | 8 | ||
| 5 | 98-8156 | COVER - curbside | 1 | |
| 6 | 98-8157 | COVER - roadside | 1 | |
| 55-8837 | SCREW - cover | 8 | ||
| 55-5970 | WASHER - sealing | 8 | ||
| 7 | 98-6113 | COVER - evaporator | 1 | |
| 55-8837 | SCREW - cover | 20 | ||
| 55-5970 | WASHER - sealing | 20 | ||
| 8 | 33-3451 | INSULATION - evaporator cover | 2 |
