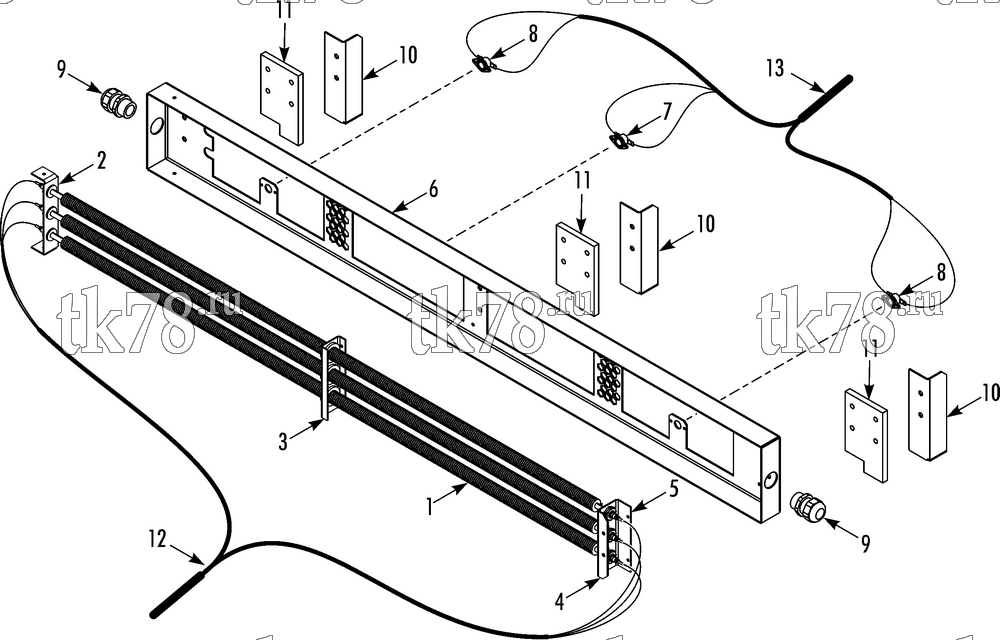

Установкa Thermo King схема HEATER E-KRS – 232H2
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8494 | HEATER - assembly | 3 | |
| 2 | 92-7322 | BRACKET - heater | 1 | |
| 3 | 92-7323 | BRACKET - heater | 1 | |
| 4 | 92-7324 | BRACKET - heater | 1 | |
| 5 | 92-7325 | BRACKET - heater | 1 | |
| 6 | 92-7326 | BRACKET - heater frame | 1 | |
| 55-5130 | RIVET | 6 | ||
| 55-9002 | SCREW | 12 | ||
| 55-8893 | FLATWASHER | 12 | ||
| 55-2001 | FLATWASHER | 14 | ||
| 55-2964 | LOCKWASHER | 14 | ||
| 55-8375 | NUT - captive | 14 | ||
| 55-7036 | SCREW | 2 | ||
| 7 | 41-8456 | SWITCH - temperature | 1 | |
| 8 | 41-8457 | SWITCH - temperature | 2 | |
| 9 | 55-6141 | CONNECTOR - harness grip | 2 | |
| 55-2635 | NUT | 2 | ||
| 10 | 92-7327 | BRACKET | 3 | |
| 11 | 92-7328 | BAKELITE | 3 | |
| 12 | 41-8495 | HARNESS - heater | 1 | |
| 13 | 41-8496 | HARNESS - switch | 1 |
