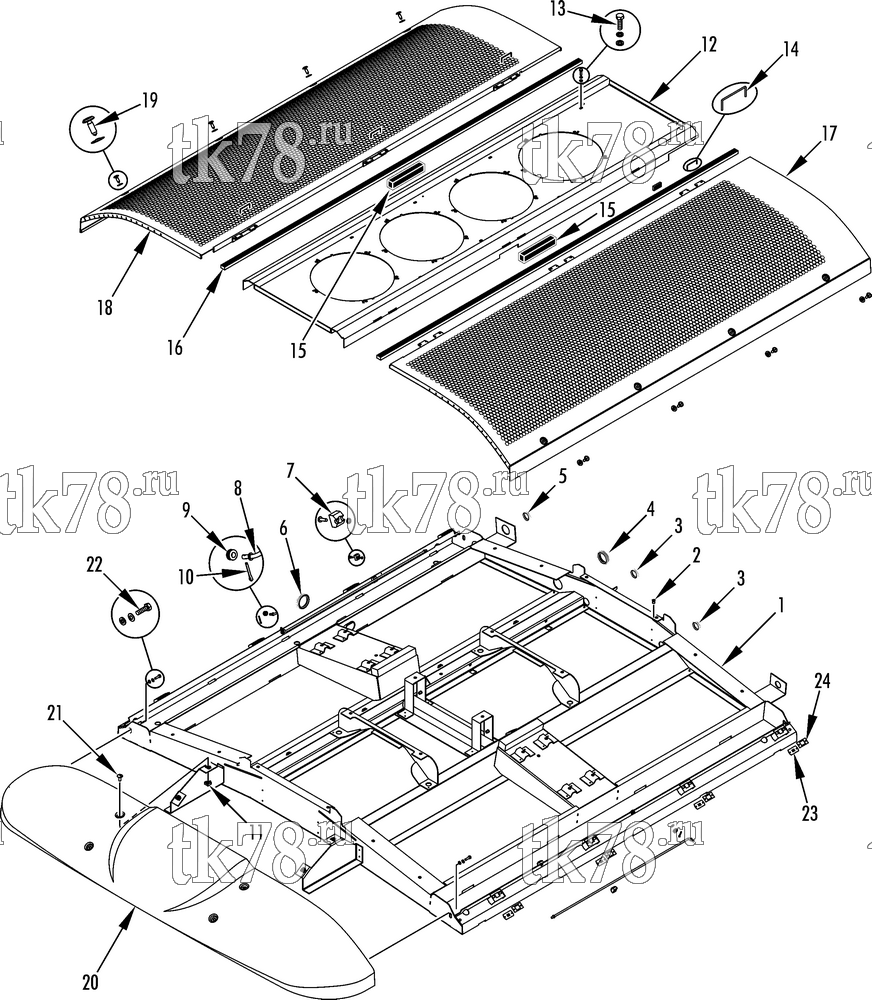

Установкa Thermo King схема CONDENSER STRUCTURAL – 232E5
Обновление от: 2/24/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8147 | FRAME - condenser | 1 | |
| 2 | 55-7373 | NUT - captive | 7 | |
| 3 | 33-1283 | GROMMET (.938 in id) | 2 | |
| 4 | 33-1770 | GROMMET (1.500 in id) | 1 | |
| 5 | 33-489 | GROMMET (1.250 in id) | 1 | |
| 6 | 33-1371 | GROMMET (1.703 in id) | 1 | |
| 7 | 91-7386 | CLAMP - tube | 2 | |
| 55-7075 | FLATWASHER (M6) | 2 | ||
| 55-6995 | FLATWASHER (6.4 mm) | 2 | ||
| 55-5047 | RIVET | 2 | ||
| 8 | 92-914 | ROD - cover | 2 | |
| 9 | 33-314 | GROMMET (0.312 id) | 2 | |
| 10 | 55-3458 | PIN - cotter | 2 | |
| 55-6995 | FLATWASHER (6.4 mm) | 2 | ||
| 11 | 55-9194 | NUT - captive | 4 | |
| 12 | 98-8148 | PLATE - top | 1 | |
| 55-7373 | NUT - captive | 20 | ||
| 13 | 55-6994 | SCREW - plate (M6) | 6 | |
| 55-6996 | LOCKWASHER | 6 | ||
| 55-6995 | FLATWASHER | 6 | ||
| 14 | 91-9877 | ROD - grille | 6 | |
| 15 | 33-4481 | INSULATION | 2 | |
| 16 | 33-4482 | INSULATION | 2 | |
| 17 | 98-8149 | GRILLE | 1 | |
| 18 | 98-8150 | GRILLE | 1 | |
| 19 | 55-3343 | FASTENER - grille | 8 | |
| 55-7112 | WASHER - special | 8 | ||
| 20 | 98-7547 | SPOILER | 1 | |
| 92-1217 | NUTSTRIP | 2 | ||
| 55-3035 | RIVET | 4 | ||
| 21 | 55-9306 | SCREW - spoiler | 4 | |
| 22 | 55-6994 | SCREW - spoiler | 2 | |
| 55-9190 | WASHER - rip | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 23 | 55-2074 | NUT - speed | 8 | |
| 24 | 91-7625 | LOCKPLATE | 8 | |
| 55-3010 | RIVET - lockplate | 16 |
