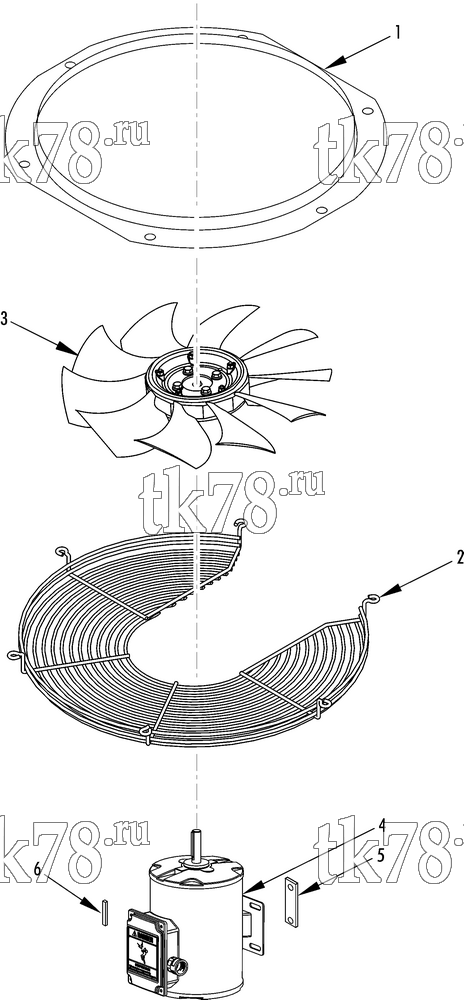

Установкa Thermo King схема CONDENSER FAN GROUP – 232A9
Обновление от: 5/7/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2357 | ORIFICE - condenser fan | 2 | |
| 2 | 98-5264 | GUARD - fan | 2 | |
| 55-2979 | SCREW - orifice & guard | 12 | ||
| 55-2945 | WASHER - special | 12 | ||
| 55-3045 | WASHER - dome | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 3 | 78-1658 | FAN - condenser | 2 | |
| 4 | 104-747 | MOTOR - condenser fan | 1 | |
| 55-2969 | SCREW - motor | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 55-4184 | WASHER - special | 8 | ||
| 5 | 99-8335 | NUTSTRIP | 4 | |
| 55-3035 | RIVET - nutstrip | 4 | ||
| 6 | 55-2048 | KEY | 2 |
