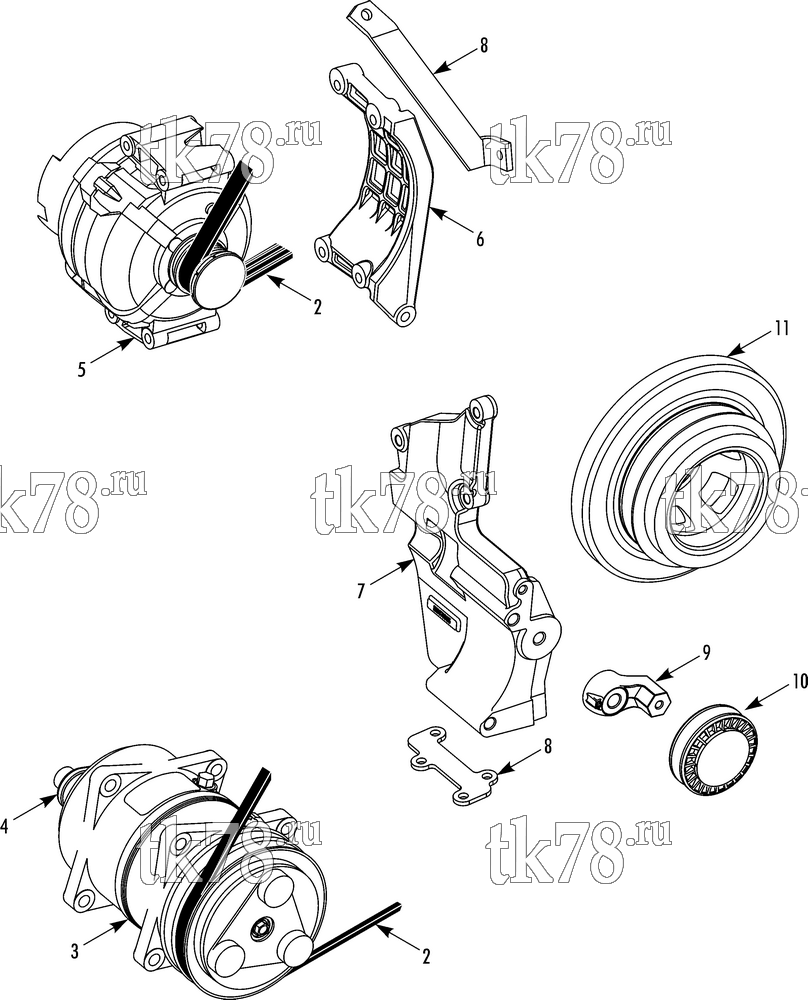

Установкa Thermo King схема DRIVE KIT (Mercedes Sprinter, 740022) – 231E1
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2682 | BELT - alternator | 1 | |
| 2 | 108-139 | BELT - compressor | 1 | |
| 3 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 4 | 22-1053 | CONNECTOR - compressor | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 5 | NSS | ALTERNATOR (not supplied by Thermo King) | 1 | |
| 6 | 108-2684 | SUPPORT - alternator | 1 | |
| 7 | 108-2683 | SUPPORT - compressor | 1 | |
| 8 | 108-2699 | SPACERS & BRACKETS | 1 | |
| 9 | 108-2638 | TENSIONER - eccentric | 1 | |
| 10 | 108-385 | PULLEY - idler | 1 | |
| 11 | NSS | PULLEY - crankshaft (not supplied by Thermo King) | 1 | |
| 108-1287 | SEALER (Loctite 243) | A/R |
