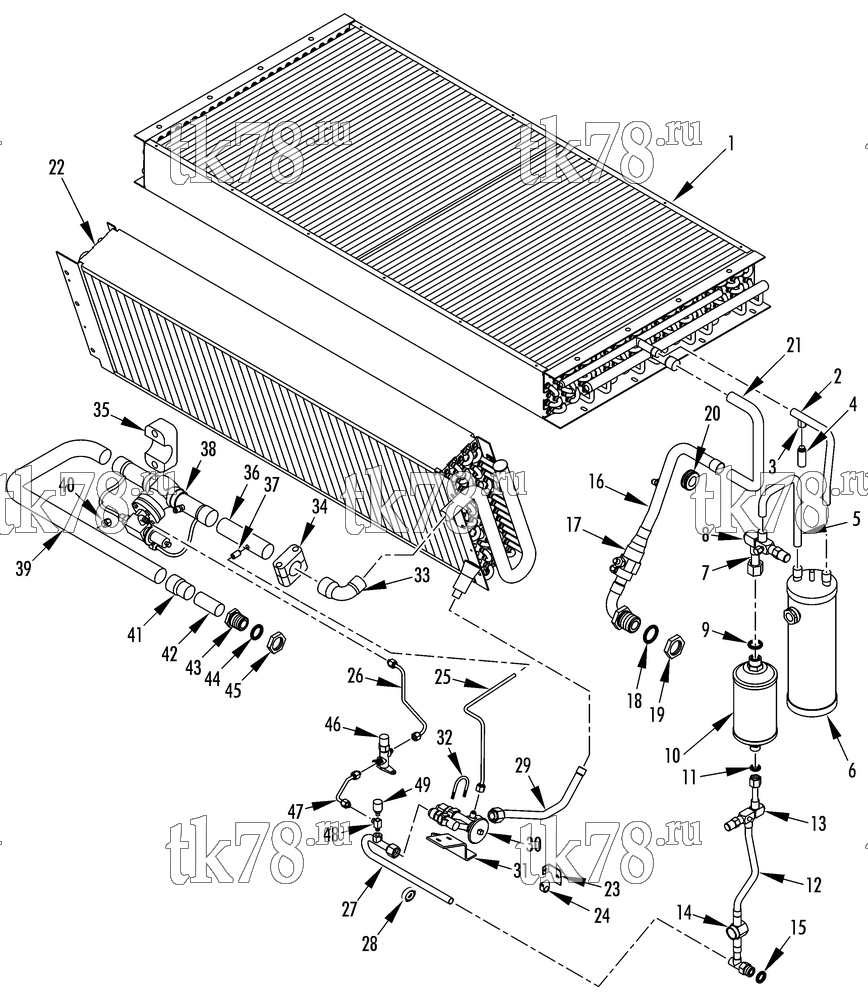

Установкa Thermo King схема REFRIGERATION COMPONENTS – 231B2
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1588 | COIL - condenser | 1 | |
| 55-1587 | SCREW - coil | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-8711 | INSERT | 16 | ||
| 99-6968 | STRIP - sealing (0.125 thick x 1.0 wide) | A/R | ||
| 33-3216 | EXTRUSION - rubber | A/R | ||
| 2 | 66-7634 | TUBE - inlet | 1 | |
| 3 | 99-3060 | FITTING - saddle | 1 | |
| 4 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 5 | 61-2002 | TUBE - outlet | 1 | |
| 6 | 67-1191 | TANK - receiver (see 220F5) | 1 | |
| 7 | 61-4455 | VALVE - assembly shutoff top | 1 | |
| 8 | 306-661 | VALVE - shutoff | 1 | |
| 306-115 | CAP - valve | 1 | ||
| 66-7332 | TUBE - valve to dehydrator | 1 | ||
| 55-6396 | NUT - shoulder | 1 | ||
| 55-6356 | SHOULDER | 1 | ||
| 9 | 33-566 | O-RING (1/2 id) | 1 | |
| 10 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 11 | 33-2115 | O-RING (5/8 id) | 1 | |
| 12 | 61-4379 | TUBE - assembly drier to fitting | 1 | |
| 55-6837 | SHOULDER | 1 | ||
| 55-6838 | NUT - shoulder | 1 | ||
| 66-7666 | TUBE - indicator to dehydrator | 1 | ||
| 55-2182 | BUSHING | 1 | ||
| 61-1672 | TUBE - valve to sight glass | 1 | ||
| 55-904 | TEE | 1 | ||
| 66-7332 | TUBE - indicator to tee | 1 | ||
| 61-1653 | TUBE - tee to adapter | 1 | ||
| 55-6400 | ADAPTER | 1 | ||
| 13 | 306-661 | VALVE - shutoff | 1 | |
| 14 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 15 | 33-1223 | O-RING (9/16 id) | 1 | |
| 16 | 61-2126 | TUBE - assembly shutoff valve | 1 | |
| 61-2115 | TUBE - discharge (upper) | 1 | ||
| 66-874 | FITTING (1/4 flare) | 1 | ||
| 66-7329 | TUBE - discharge (lower) | 1 | ||
| 66-5247 | ADAPTER - bulkhead (#16 ORS) | 1 | ||
| 17 | 61-846 | VALVE - shutoff | 1 | |
| 18 | 33-1785 | O-RING - discharge | 1 | |
| 19 | 55-5740 | NUT (#16) | 1 | |
| 55-5741 | LOCKWASHER | 1 | ||
| 20 | 33-507 | GROMMET (7/8 id) | 1 | |
| 21 | 66-8980 | TUBE - valve to header | 1 | |
| 22 | 67-1496 | COIL - evaporator (see 220F6) | 1 | |
| 23 | 92-1771 | BRACKET - liquid line | 1 | |
| 55-2957 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-871 | INSERT | 1 | ||
| 24 | 91-758 | CLAMP - tube | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 25 | 66-7324 | TUBE - equalizer | 1 | |
| 26 | 61-909 | TUBE - valve to epr valve | 1 | |
| 27 | 61-2322 | TUBE - valve inlet | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 28 | 33-287 | GROMMET (5/8 id) | 1 | |
| 29 | 66-7321 | TUBE - expansion valve to distributor | 1 | |
| 30 | 66-6847 | VALVE - expansion (R134a) | 1 | |
| 66-4212 | ELEMENT - valve (R134a) | 1 | ||
| 66-5952 | VALVE - expansion (R22) | 1 | ||
| 66-4213 | ELEMENT - valve (R22) | 1 | ||
| 61-438 | SCREEN | 1 | ||
| 92-2016 | INSULATION - thermo bulb | A/R | ||
| 31 | 91-5560 | BRACKET - valve | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 32 | 55-5211 | U-BOLT - expansion valve | 1 | |
| 91-3084 | SPACER | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4561 | NUT | 2 | ||
| 33 | 55-8988 | ELBOW (1-3/8 X 1 1/8 sld) | 1 | |
| 34 | 91-758 | CLAMP - tube | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-6526 | INSERT | 2 | ||
| 35 | 55-6020 | CLAMP - tube (suction) | 2 | |
| 55-3344 | SCREW - clamp | 2 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 91-4613 | PLATE - clamp | 1 | ||
| 36 | 61-907 | TUBE - coil to valve | 1 | |
| 37 | 66-5752 | FITTING - tube | 1 | |
| 38 | 66-5136 | VALVE - epr (R12, R22, R407c, see 129C13) | 1 | |
| 66-8122 | VALVE - epr (R134a, see 129C13) | 1 | ||
| 39 | 61-908 | TUBE - epr valve to adapter | 1 | |
| 33-1217 | GROMMET (1-3/8 id) | 1 | ||
| 40 | 66-874 | FITTING (1/4 flare) | 1 | |
| 55-1983 | CAP - fitting | 1 | ||
| 41 | 55-2905 | COUPLING - reducing | 1 | |
| 42 | 66-8892 | TUBE | 1 | |
| 99-7809 | HOSE - insulation | A/R | ||
| 43 | 55-7073 | ADAPTER - bulkhead (#20, o-ring seal) | 1 | |
| 44 | 33-1777 | O-RING - suction | 1 | |
| 45 | 55-5739 | NUT (#20) | 1 | |
| 55-5742 | LOCKWASHER | 1 | ||
| 46 | 66-992 | VALVE - shutoff | 1 | |
| 55-2991 | SCREW - valve | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-8798 | INSERT | 2 | ||
| 47 | 61-1677 | TUBE - tee to valve | 1 | |
| 48 | 55-2273 | TEE (fan switch) | 1 | |
| 49 | 44-6965 | SWITCH - condenser fan (R134a, for connectors see 115D14) | 1 | |
| 41-307 | SWITCH - only (R134a) | 1 | ||
| 44-6349 | SWITCH - condenser fan (R22, for connectors see 115D14) | 1 | ||
| 44-6427 | SWITCH - only (R22) | 1 |
