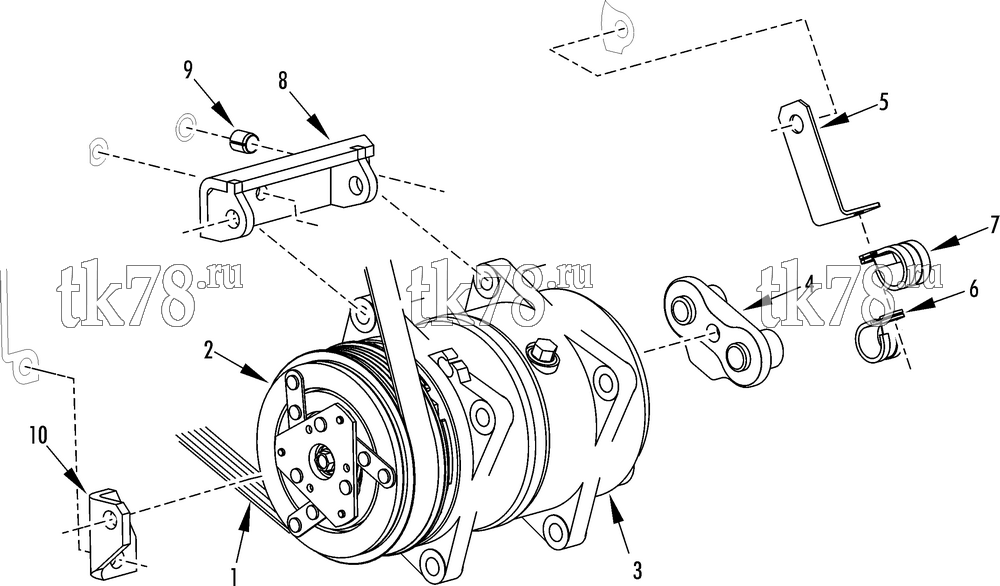

Установкa Thermo King схема DRIVE KIT (Fiat Scudo, Citroen Jumpy, Peugeot Expert 2.0, 740021) – 230G3
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BELT (use original) | 1 | |
| 2 | 108-1298 | CLUTCH | 1 | |
| 3 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1390 | SCREW - compressor | 3 | ||
| 108-1517 | NUT | 3 | ||
| 4 | 22-1053 | CONNECTOR - compressor (horizontal) | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 5 | 108-2665 | SUPPORT - clamp | 1 | |
| 108-1518 | NUT | 1 | ||
| 6 | 92-3841 | CLAMP - hoses (18MM) | 1 | |
| 7 | 92-3835 | CLAMP - hoses (20MM) | 1 | |
| 108-2212 | SCREW - clamp | 1 | ||
| 108-2262 | NUT | 1 | ||
| 8 | 108-2666 | SUPPORT - compressor (upper) | 1 | |
| 51-237 | SCREW - support | 2 | ||
| 9 | 108-2667 | PIN - spring | 1 | |
| 10 | 108-2668 | SUPPORT - compressor (lower) | 1 | |
| 108-2433 | SCREW - support | 1 |
