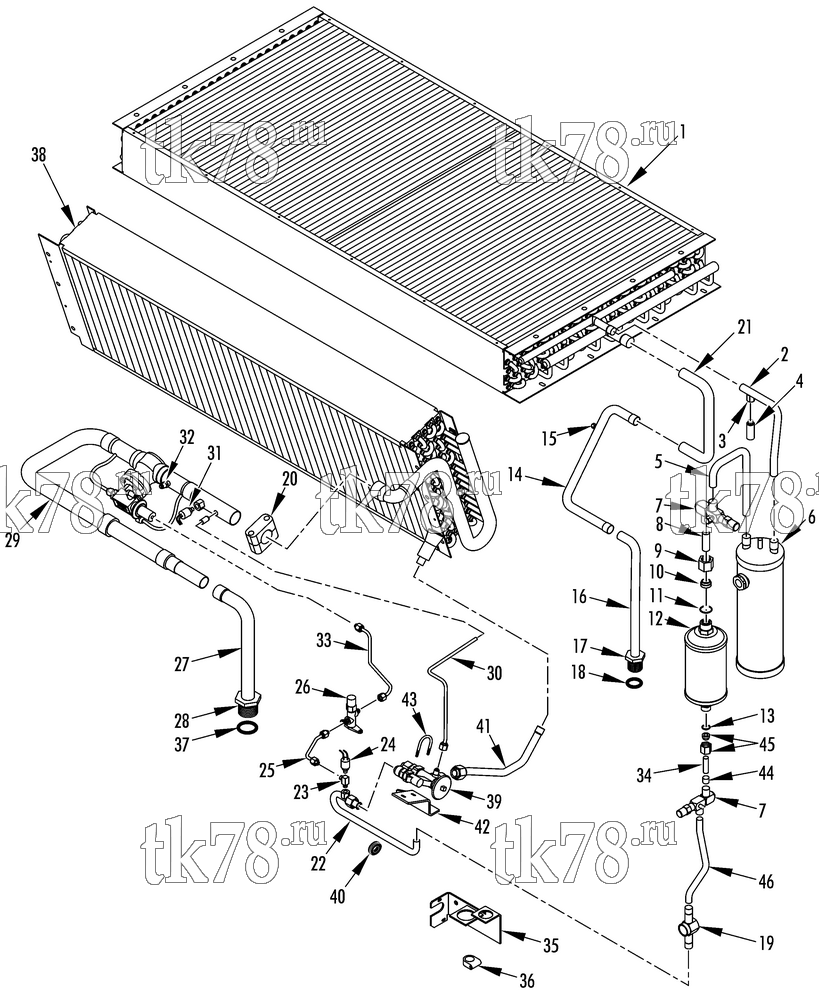

Установкa Thermo King схема REFRIGERATION COMPONENTS – 230E9
Обновление от: 6/26/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1759 | COIL - condenser | 1 | |
| 55-1587 | SCREW - coil | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-8711 | INSERT | 16 | ||
| 99-6968 | STRIP - sealing (0.125 thick x 1.0 wide) | A/R | ||
| 33-3216 | EXTRUSION - rubber | A/R | ||
| 2 | 66-7634 | TUBE - inlet | 1 | |
| 3 | 99-3060 | FITTING - saddle | 1 | |
| 4 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 5 | 61-2002 | TUBE - outlet | 1 | |
| 6 | 67-1191 | TANK - receiver (see 213B7) | 1 | |
| 61-4877 | VALVE - shutoff, complete w/ tube & fittings | 1 | ||
| 7 | 306-661 | VALVE - shutoff | 2 | |
| 306-115 | CAP - valve | 1 | ||
| 55-2963 | SCREW - valve | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 8 | 66-7332 | TUBE - valve to dehydrator | 1 | |
| 9 | 55-6396 | NUT - shoulder | 1 | |
| 10 | 55-6356 | SHOULDER | 1 | |
| 11 | 33-566 | O-RING (1/2 id) | 1 | |
| 12 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 13 | 33-2115 | O-RING (5/8 id) | 1 | |
| 14 | 61-3545 | TUBE - discharge | 1 | |
| 15 | 66-8315 | FITTING - flare | 1 | |
| 55-1983 | CAP - fitting | 1 | ||
| 16 | 61-3544 | TUBE - discharge (lower) | 1 | |
| 17 | 66-6840 | ADAPTER - bulkhead (#16) | 1 | |
| 18 | 33-1785 | O-RING (15/16) | 1 | |
| 33-2789 | WASHER - sealing (#16, brass) | 1 | ||
| 55-5741 | LOCKWASHER (#16) | 1 | ||
| 19 | 66-2648 | INDICATOR - liquid | 1 | |
| 20 | 91-758 | CLAMP - tube | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-6526 | INSERT | 2 | ||
| 21 | 66-8980 | TUBE - valve to header | 1 | |
| 33-507 | GROMMET (7/8 id) | 2 | ||
| 22 | 61-3546 | TUBE - valve inlet | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 23 | 55-2273 | TEE (fan switch) | 1 | |
| 24 | 41-7956 | TRANSDUCER - discharge | 1 | |
| 25 | 61-1677 | TUBE - tee to valve | 1 | |
| 26 | 66-992 | VALVE - shutoff | 1 | |
| 55-2991 | SCREW - valve | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-8798 | INSERT | 2 | ||
| 27 | 61-3547 | TUBE - adapter | 1 | |
| 28 | 55-7537 | ADAPTER - bulkhead (#20) | 1 | |
| 99-7809 | INSULATION - tube (cut to 16.0 in long) | A/R | ||
| 29 | 61-4366 | VALVE - epr (complete) | 1 | |
| 66-5752 | FITTING - tube | 1 | ||
| 66-5136 | VALVE - epr (R12, R22, R407c, see 129C13) | 1 | ||
| 55-2905 | COUPLING - reducing | 1 | ||
| 61-4674 | TUBE - coil to valve | 1 | ||
| 61-5456 | TUBE - valve to coupling | 1 | ||
| 30 | 66-7324 | TUBE - equalizer | 1 | |
| 31 | 41-7958 | TRANSDUCER - suction | 1 | |
| 32 | 55-1983 | CAP - fitting | 1 | |
| 33 | 61-909 | TUBE - valve to epr valve | 1 | |
| 92-4439 | TUBE - foam rubber (.875id 1.625od) | 1 | ||
| 34 | 66-7666 | TUBE - indicator to dehydrator | 1 | |
| 35 | 92-5626 | BRACKET - suction/discharge tubes | 1 | |
| 92-2343 | SPACER - bracket | 1 | ||
| 55-2977 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 36 | 55-7013 | CLAMP - tube (discharge) | 2 | |
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1801 | NUT | 1 | ||
| 37 | 33-1777 | O-RING (1-3/16) | 1 | |
| 38 | 67-1496 | COIL - evaporator (see 212D9) | 1 | |
| 39 | 66-5952 | VALVE - expansion (R22) | 1 | |
| 92-2016 | INSULATION - thermo bulb | A/R | ||
| 40 | 33-287 | GROMMET (5/8 id) | 1 | |
| 41 | 66-7321 | TUBE - expansion valve to distributor | 1 | |
| 42 | 91-5560 | BRACKET - valve | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 43 | 55-5211 | U-BOLT - expansion valve | 1 | |
| 91-3084 | SPACER | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 44 | 66-7666 | TUBE | 1 | |
| 55-2182 | BUSHING | 1 | ||
| 45 | 55-6837 | SHOULDER | 1 | |
| 55-6838 | NUT - shoulder | 1 | ||
| 46 | 61-3548 | TUBE - valve to sight glass | 1 |
