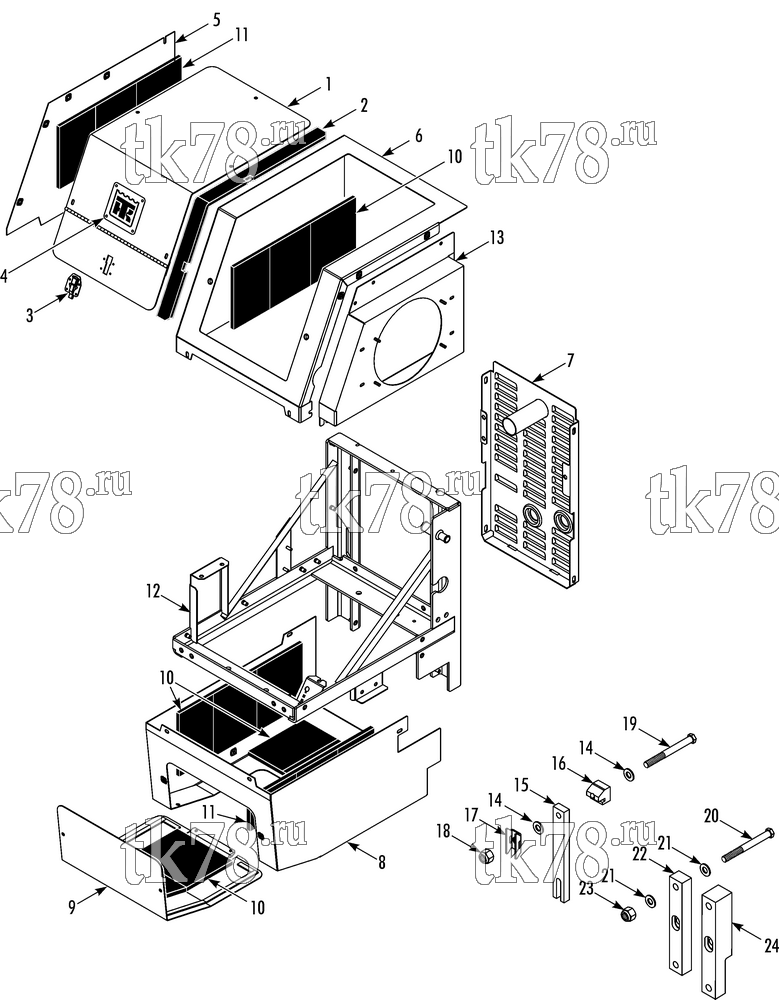

Установкa Thermo King схема COVERS & FRAME (10/08 & After) – 230D5
Обновление от: 12/19/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8078 | COVER - top (al) | 1 | |
| 98-8088 | COVER - top (ss) | 1 | ||
| 98-8863 | COVER - top (Wal-Mart al cover w/notch) | 1 | ||
| 93-665 | COVER - top (Wal-Mart ss cover w/notch) | 1 | ||
| 2 | 33-4464 | INSULATION - cover | 1 | |
| 3 | 99-793 | LATCH - cover | 1 | |
| 55-5130 | RIVET - latch & nameplate | 8 | ||
| 4 | 92-8643 | NAMEPLATE - TK (included with top cover 98-8078 only) | 1 | |
| 55-2977 | SCREW - cover | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 5 | 92-7173 | COVER - side | 1 | |
| 33-4274 | INSULATION | 1 | ||
| 55-2957 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 6 | 98-8079 | COVER - upper | 1 | |
| 98-8089 | COVER - upper (ss) | 1 | ||
| 7 | 92-8520 | PANEL - rear | 1 | |
| 33-3135 | GROMMET (35mm) | 2 | ||
| 8 | 98-8511 | COVER - lower | 1 | |
| 98-8090 | COVER - lower (ss) | 1 | ||
| 55-2957 | SCREW - panels & frame | A/R | ||
| 55-1800 | LOCKWASHER | A/R | ||
| 55-2086 | FLATWASHER | A/R | ||
| 9 | 98-8081 | COVER - access (bottom) | 1 | |
| 98-8087 | COVER - access (bottom, ss) | 1 | ||
| 55-2977 | SCREW - panel | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 10 | 33-4475 | INSULATION | 3 | |
| 11 | 33-4275 | INSULATION | 1 | |
| 12 | 98-8070 | FRAME - APU | 1 | |
| 13 | 92-7688 | FRAME - precooler (see 221F7 for replacement history) | 1 | |
| 14 | 55-4468 | FLATWASHER | 8 | |
| 15 | 92-5600 | SPACER - APU | 2 | |
| 16 | 92-5759 | CLAW - APU | 4 | |
| 17 | 92-6826 | RETAINER - nut | 4 | |
| 18 | 51-1314 | NUT | 4 | |
| 19 | 51-1313 | SCREW - APU | 4 | |
| 20 | 51-1795 | SCREW - direct mount (3.0 lg) | 2 | |
| 51-1796 | SCREW - direct mount (3.5 lg) | 2 | ||
| 51-1797 | SCREW - direct mount (4.0 lg) | 2 | ||
| 51-1798 | SCREW - direct mount (5.0 lg, use w/offset mount) | 2 | ||
| 21 | 55-4468 | FLATWASHER | 10 | |
| 22 | 92-7127 | SPACER - direct mount | 2 | |
| 23 | 51-1314 | NUT | 6 | |
| 24 | 92-7128 | SPACER - direct mount (offset) | 2 |
