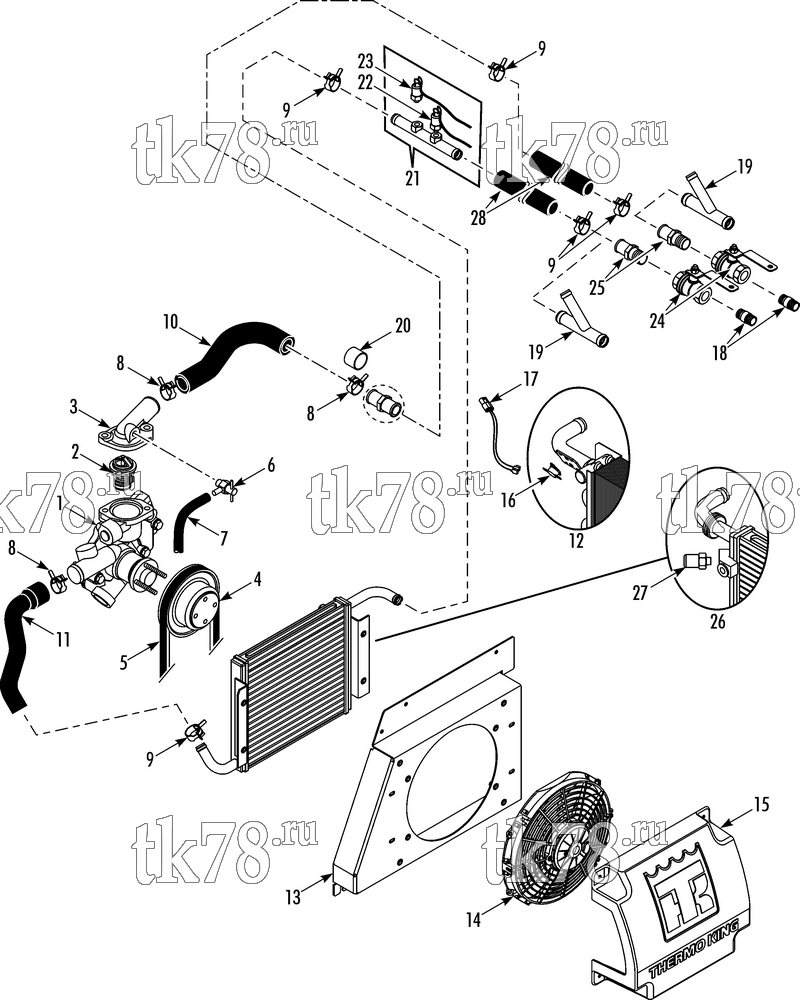

Установкa Thermo King схема COOLING SYSTEM – 230D2
Обновление от: 7/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-948 | PUMP - coolant (see 209A6) | 1 | |
|
10-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 30 290 ₽ |
|
|
PP-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 9 320 ₽ |
|
| 2 | 13-954 | THERMOSTAT (151 F / 71 C, gasket is incorporated w/ thermostat) | 1 | |
|
13-954 OEM | Термостат, Yanmar 370 / 376, TS-500/T-Series | 8 350 ₽ |
|
|
10-13-954 | Термостат, Yanmar 370 / 376, TS-500/T-Series | 4 140 ₽ |
|
| 3 | 13-418 | COVER - thermostat | 1 | |
| 4 | 77-2847 | PULLEY - water pump | 1 | |
| 5 | 78-1492 | BELT - water pump | 1 | |
| 10-78-1492 | Ремень водяного насоса, Yanmar TK 370, T-600/800 | 2 820 ₽ |
|
|
|
PP-78-1492 | Ремень водяного насоса, Yanmar TK 370, T-600/800 | 980 ₽ |
|
| 6 | 13-974 | COCK - drain | 1 | |
| 7 | 11-4372 | HOSE - bleed | A/R | |
| 8 | 51-1739 | CLAMP - hose (constant tension, 36MM) | 3 | |
| 9 | 51-1713 | CLAMP - hose (constant tension, 27MM) | 5 | |
| 10 | 13-789 | TUBE - thermostat out | 1 | |
| 11 | 13-788 | HOSE - precooler to pump | 1 | |
| 12 | NSS | COIL - precool (before 1/09, replaced w/ 67-2406) | 1 | |
| 13 | 92-6777 | FRAME - precooler (before 1/09) | 1 | |
| 92-7688 | FRAME - precooler (1/09 & after) | 1 | ||
| 55-3018 | SCREW - coil | 4 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1587 | SCREW - frame | 4 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 14 | 78-1535 | FAN - precool coil (12V, 10 inch, blow) | 1 | |
| 15 | 92-1500 | COVER - precooler fan | 1 | |
| 55-1801 | NUT - fan & cover | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 16 | 41-6927 | SWITCH - temperature (before 1/09) | 1 | |
| 20-41-6927 | Выключатель температуры | 2 270 ₽ |
|
|
| 17 | 41-7917 | HARNESS - temp switch (PCFS, before 1/09) | 1 | |
| 18 | 55-6360 | NIPPLE | 2 | |
| 19 | 61-3692 | WYE - connecting (7/8 x 7/8 x 3/4 hose id) | 1 | |
| 61-3693 | WYE - connecting (3/4 hose id all around) | 1 | ||
| 61-3694 | WYE - connecting (5/8 x 5/8 x 3/4 hose id) | 1 | ||
| 20 | 51-1563 | CLAMP - hose (powergrip, 11/16 to 15/16 hose od) | 4 | |
| 51-1562 | CLAMP - hose (powergrip, 1-1/16 to 1-3/16 hose od) | 2 | ||
| 21 | 40-1085 | KIT - arctic switch (option) | 1 | |
| 22 | 41-9472 | SWITCH - fan precooler | 1 | |
| 23 | 41-9473 | SWITCH - arctic (arctic option) | 1 | |
| 13-977 | TUBE - arctic switch | 1 | ||
| 24 | 13-961 | VALVE - ball | 2 | |
| 25 | 51-1338 | ADAPTER - hose | 2 | |
| 26 | 67-2406 | COIL - precool (1/09 & after, inc immersion switch) | 1 | |
| 27 | 41-9470 | SWITCH - immersion (with connector, 1/09 & after) | 1 | |
| 28 | 12-928 | HOSE - unit to tractor (3/4 hose id) | A/R |
