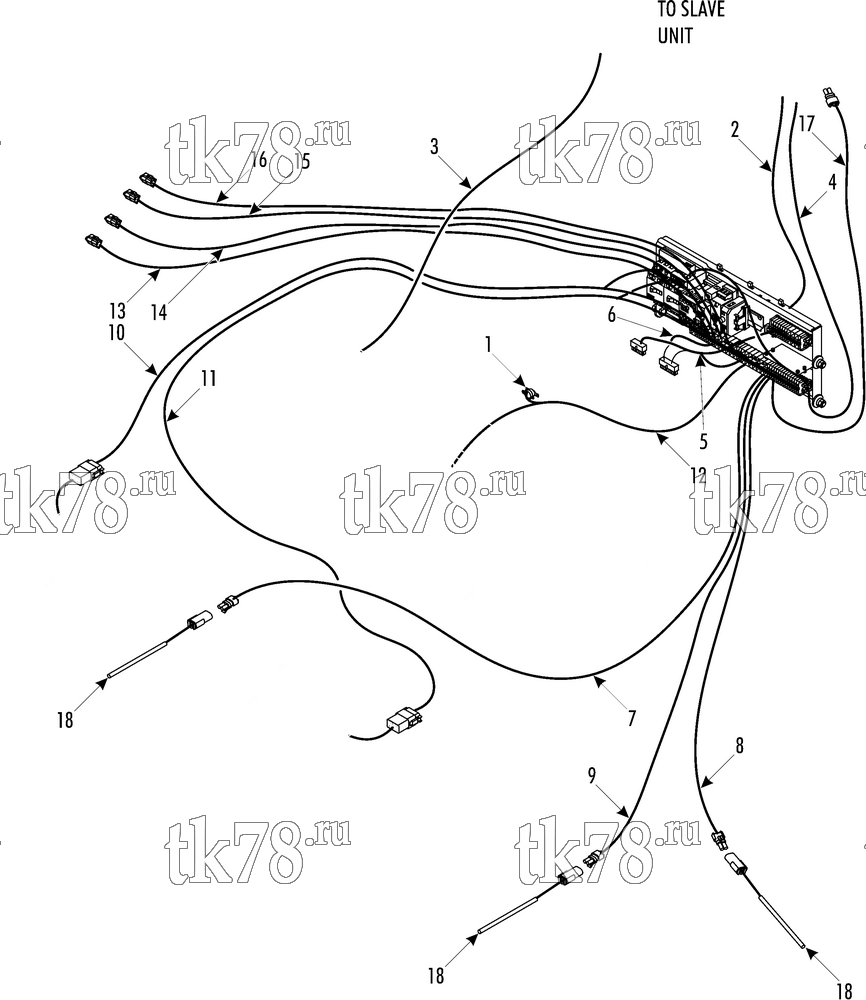

Установкa Thermo King схема ELECTRICAL COMPONENTS – 229H0
Обновление от: 6/1/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5936 | SWITCH - thermostat, manual reset 120 deg | 1 | |
| 55-9195 | SCREW - switch | 2 | ||
| 55-8410 | FLATWASHER | 2 | ||
| 55-9057 | LOCKWASHER | 2 | ||
| 55-7749 | NUT | 2 | ||
| 2 | 41-8576 | CONNECTING - control voltage (master x slave) | 1 | |
| 3 | 41-8577 | CONNECTING - DC supply voltage (master x slave) | 1 | |
| 4 | 41-8578 | CONNECTING - AC supply voltage (master x slave) | 1 | |
| 5 | 41-8579 | CONNECTION - ClimaAIRE | 1 | |
| 6 | 41-8580 | CONNECTION - ClimaAIRE supply | 1 | |
| 7 | 41-8581 | CABLE - DTS1 sensor | 1 | |
| 8 | 41-8582 | CABLE - FTS1 sensor | 1 | |
| 9 | 41-8583 | CABLE - RTS1 sensor | 1 | |
| 10 | 41-8584 | CABLE - MEFM1 | 1 | |
| 11 | 41-8585 | CABLE - MEFM2 | 1 | |
| 12 | 41-8586 | HARNESS - heater sensor | 1 | |
| 13 | 41-8587 | CABLE - XLV1 | 1 | |
| 14 | 41-8588 | CABLE - XLV2 | 1 | |
| 15 | 41-8589 | CABLE - XLV5 | 1 | |
| 16 | 41-8590 | CABLE - XLV6 | 1 | |
| 17 | 41-8591 | CABLE - DTS2 sensor | 1 | |
| 41-8592 | WIRES - grounding | 1 | ||
| 18 | 41-4157 | SENSOR - temperature | 3 |
